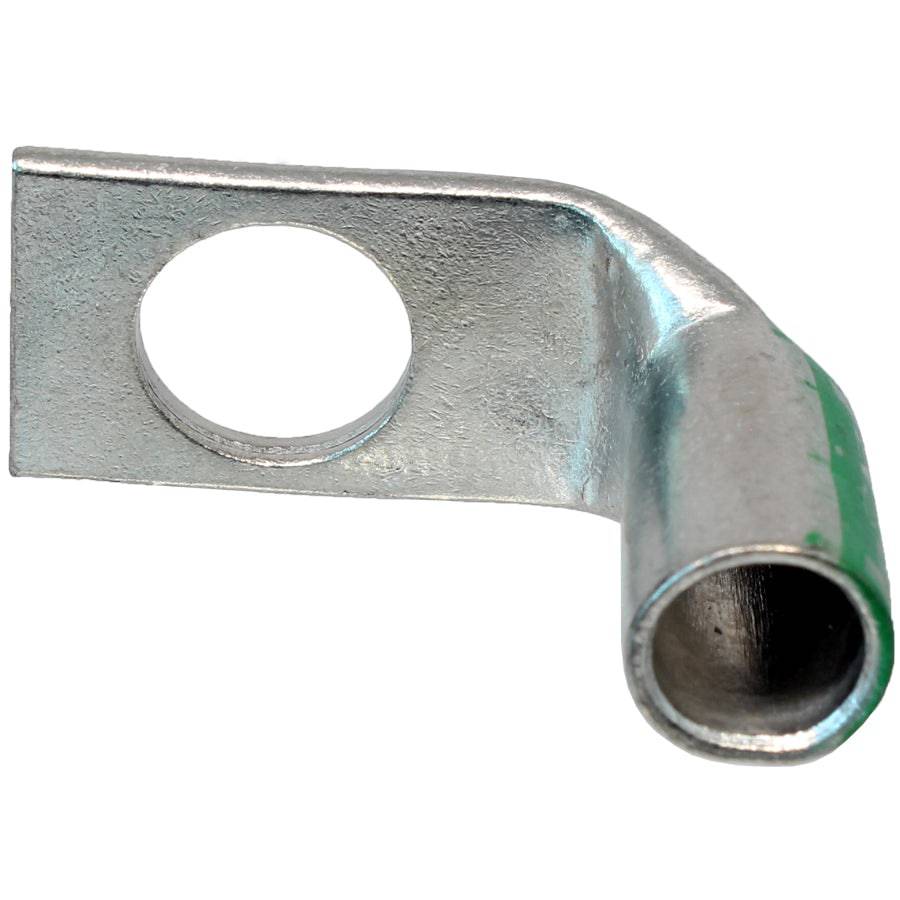

SBF112 - 90 Degree Short Barrel Compression Lug - 1 AWG - 1/2" Stud
Original price
$2.26
-
Original price
$2.26
Original price
$2.26
$2.26
-
$2.26
Current price
$2.26
SKU SBF112
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Green |
| C: | 9.1mm (0.36") |
| E: | 13.1mm (0.52") |
| D: | 17.8mm (0.70") |
| G: | 12.7mm (0.50") |
| B: | 20.3mm (0.80") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/2" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Ampere Rating: | 130 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
