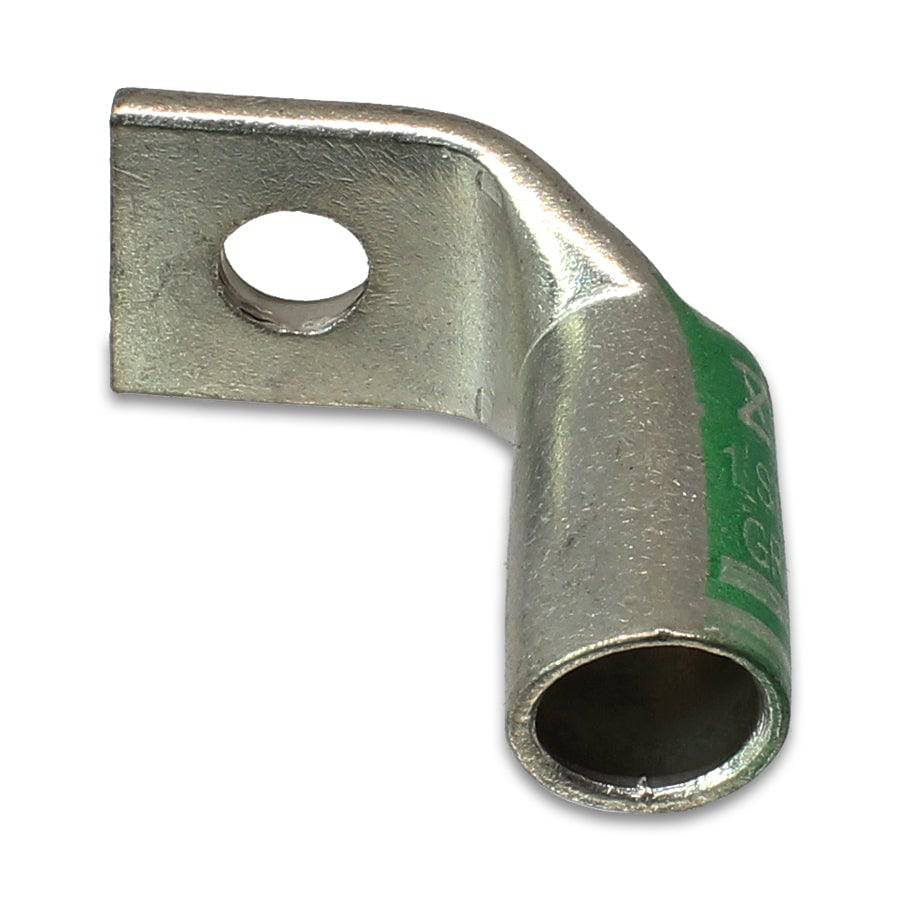

SBF114 - 90 Degree Short Barrel Compression Lug - 1 AWG - 1/4" Stud

Original price $2.10 - Original price $2.10
Original price
$2.10
$2.10 - $2.10
Current price $2.10
SKU SBF114
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
PRODUCT DESCRIPTION

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

DIMENSIONS AND FEATURES
Item Size 1 AWG TERMINAL MATERIAL: TIN-PLATED COPPER
Color GREEN
STUD SIZE: 1/4"" Stud
C 9.1mm (.36") TEMPERATURE RATING: 90°C
E 7.1mm (.28") VOLTAGE RATING: 35 KV
D 16.8mm (.66") MAXIMUM AMPERE RATING: 130 AMPS
G 8.3mm (.33) UL RECOGNIZED: YES
B 20.3mm (.80") CE CERTIFIED: YES
    ROHS COMPLIANT: YES

TECHNICAL DRAWING
