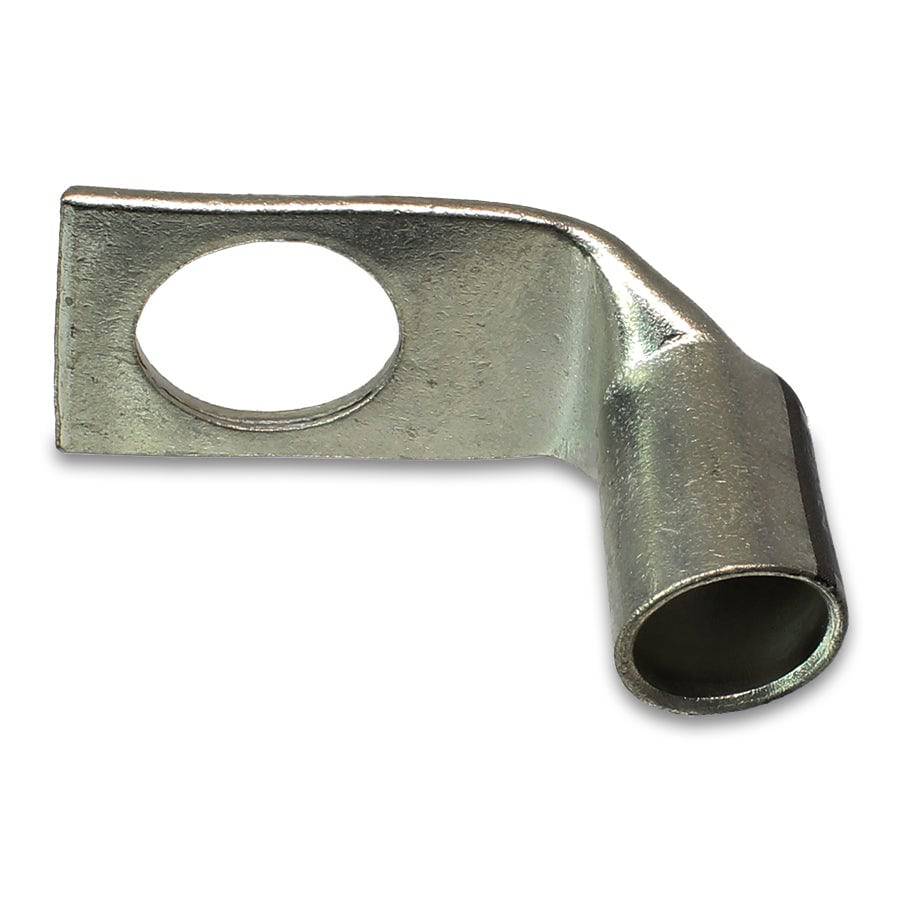

SBF2058 - 90 Degree Short Barrel Compression Lug - 2/0 AWG - 5/8" Stud

Original price $3.05 - Original price $3.05
Original price
$3.05
$3.05 - $3.05
Current price $3.05
SKU SBF2058
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2/0 AWG
Color: Black
C: 11.7mm (0.46")
E: 16.8mm (0.66")
D: 22.9mm (0.90")
G: 14mm (0.55")
B: 21.3mm (0.84")
Terminal Material: Tin-Plated Copper
Stud Size: 5/8"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 175 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
