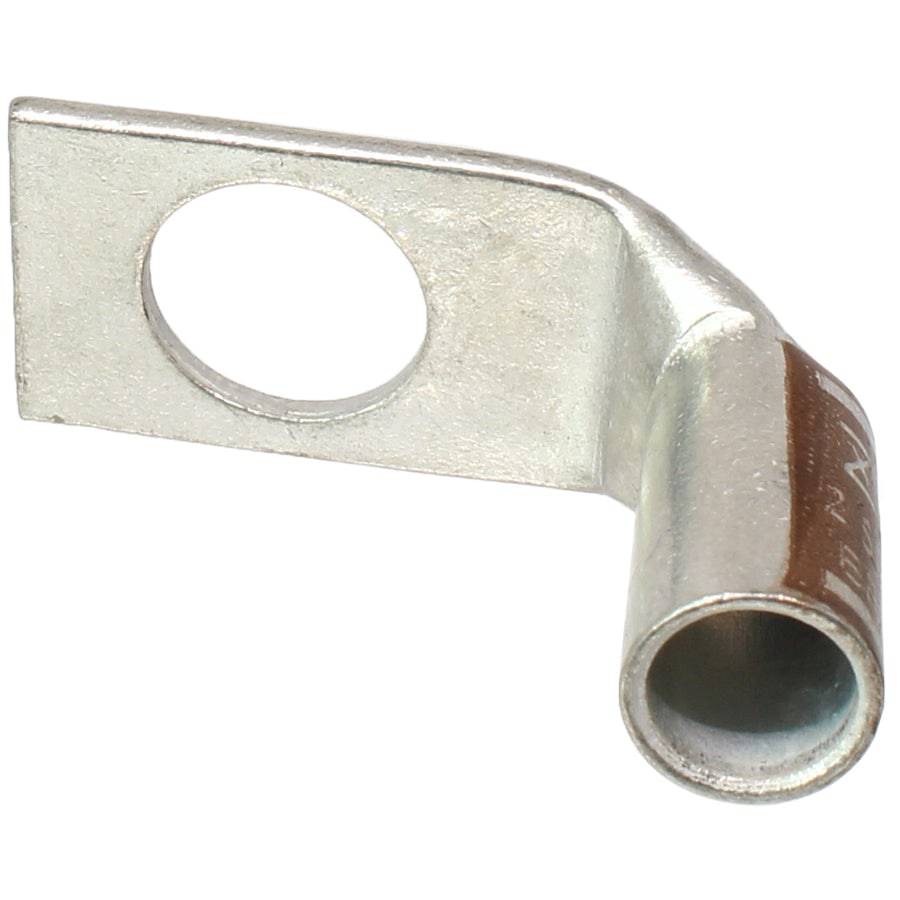

SBF212 - 90 Degree Short Barrel Compression Lug - 2 AWG - 1/2" Stud
Original price
$1.80
-
Original price
$1.80
Original price
$1.80
$1.80
-
$1.80
Current price
$1.80
SKU SBF212
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 2 AWG |
Color: | Brown |
C: | 8.5mm (0.34") |
E: | 13.1mm (0.52") |
D: | 17.8mm (0.70") |
G: | 12.7mm (0.50") |
B: | 20.3mm (0.80") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 1/2" |
Temperature Rating: | 90oC |
Voltage Rating: | 35KV |
Maximum Ampere Rating: | 115 Amps |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:

Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
