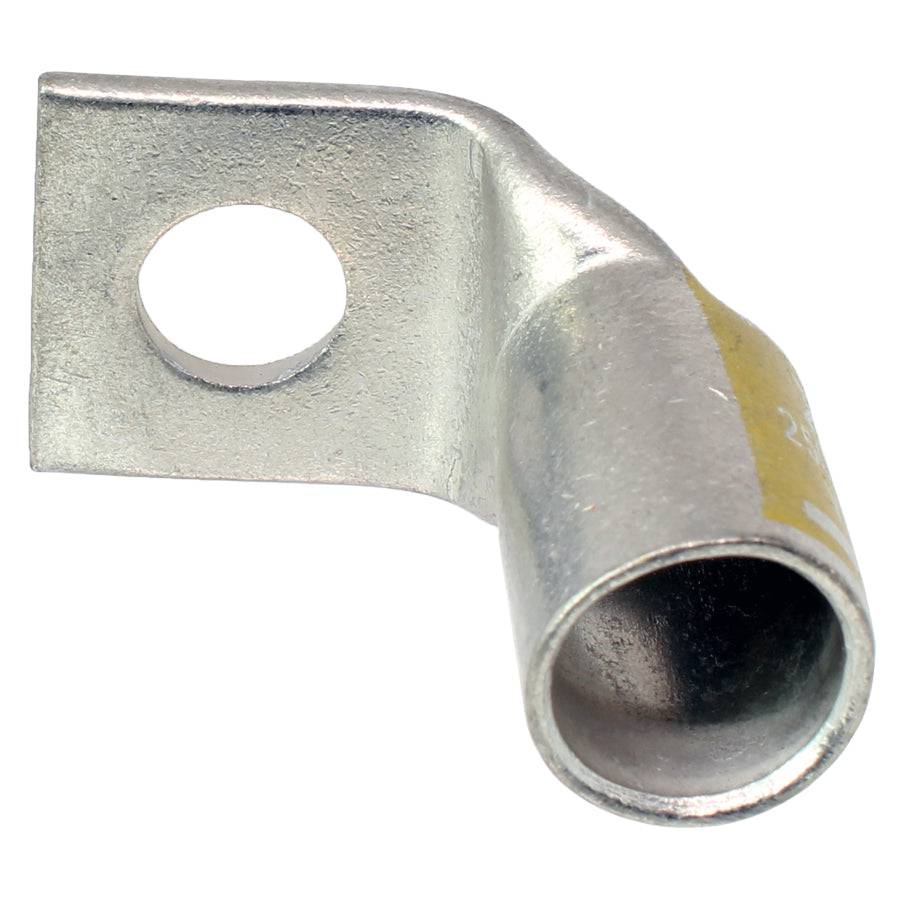

SBF25012 - 90 Degree Short Barrel Compression Lug - 250 MCM - 1/2" Stud
Original price
$6.12
-
Original price
$6.12
Original price
$6.12
$6.12
-
$6.12
Current price
$6.12
SKU SBF25012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 250 MCM |
Color: | Yellow |
C: | 16mm (0.63") |
E: | 13.1mm (0.52") |
D: | 27.7mm (1.10") |
G: | 12.7mm (0.50") |
B: | 27.8mm (1.10") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 1/2" |
Temperature Rating: | 90oC |
Voltage Rating: | 35KV |
Maximum Amp Rating: | 255 Amps |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
