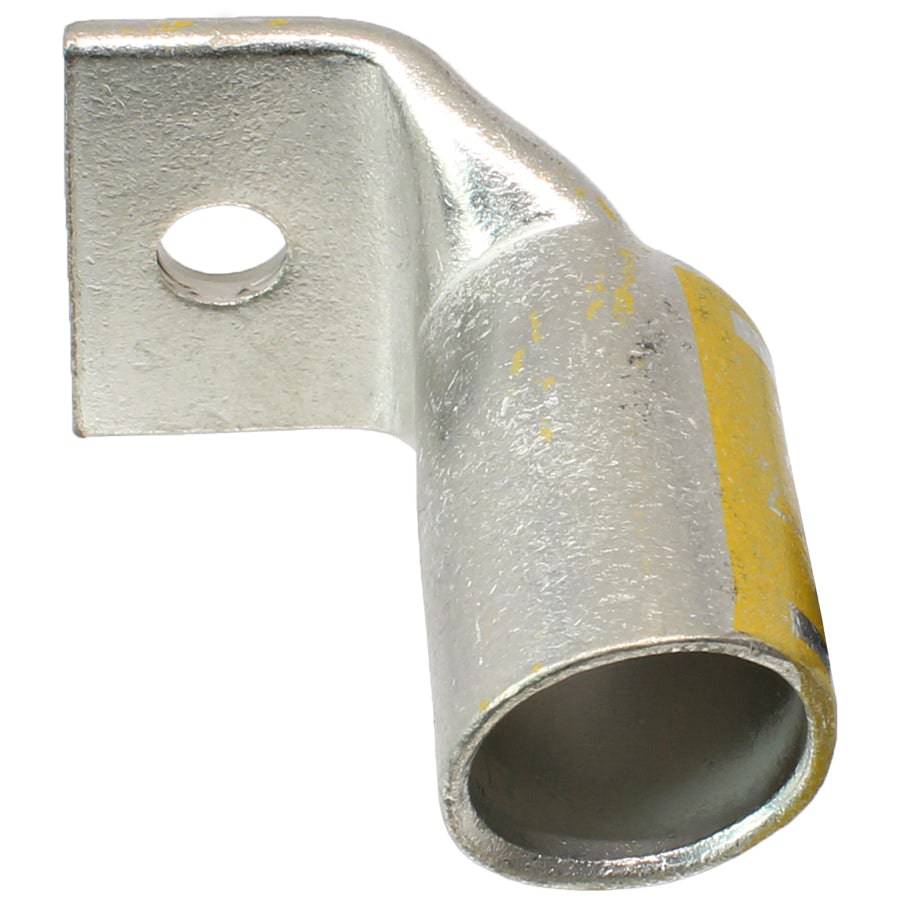

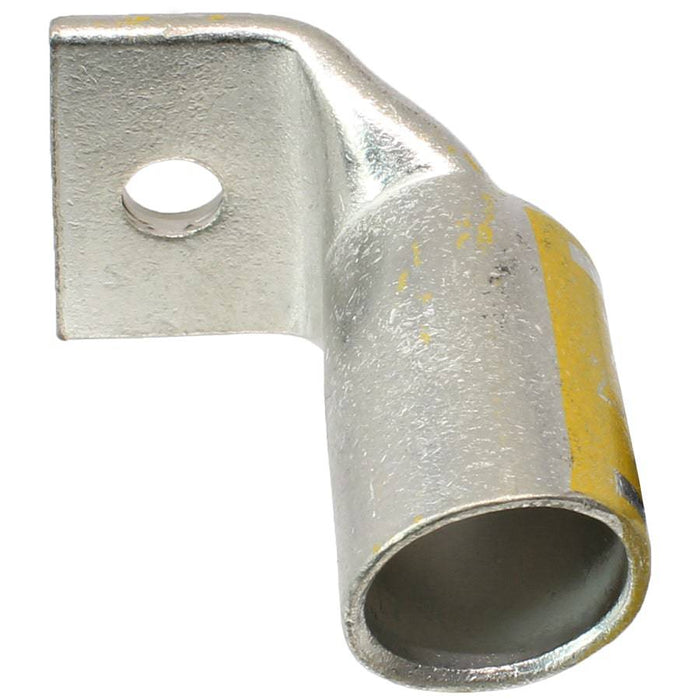

SBF25014 - 90 Degree Short Barrel Compression Lug - 250 MCM - 1/4" Stud
Original price
$5.69
-
Original price
$5.69
Original price
$5.69
$5.69
-
$5.69
Current price
$5.69
SKU SBF25014
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 250 MCM |
| Color: | Yellow |
| C: | 16mm (0.63") |
| E: | 7.1mm (0.28") |
| D: | 27.9mm (1.10") |
| G: | 8.3mm (0.33") |
| B: | 27.9mm (1.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/4" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Amp Rating: | 255 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
