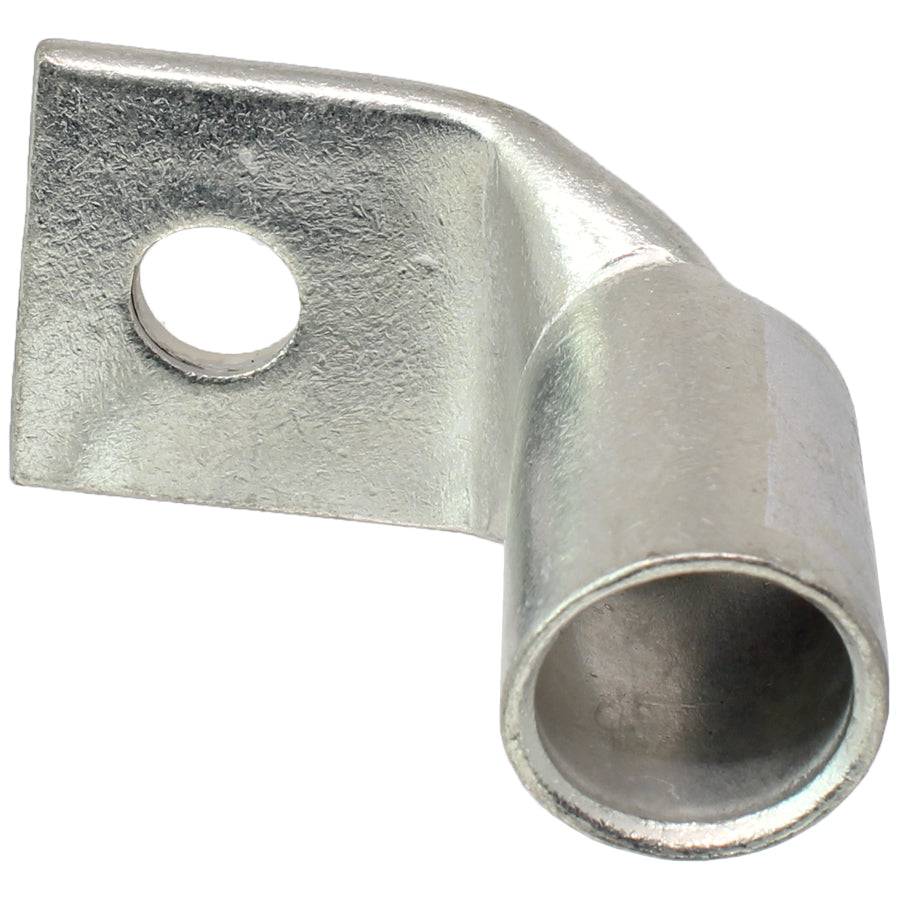

SBF300516 - 90 Degree Short Barrel Compression Lug - 300 MCM - 5/16" Stud

Original price $9.15 - Original price $9.15
Original price
$9.15
$9.15 - $9.15
Current price $9.15
SKU SBF300516
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 300 MCM
Color: White
C: 17.1mm (0.68")
E: 8.8mm (0.34")
D: 30.2mm (1.19")
G: 12.2mm (0.48")
B: 27.9mm (1.10")
Terminal Material: Tin-Plated Copper
Stud Size: 5/16"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 285 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
