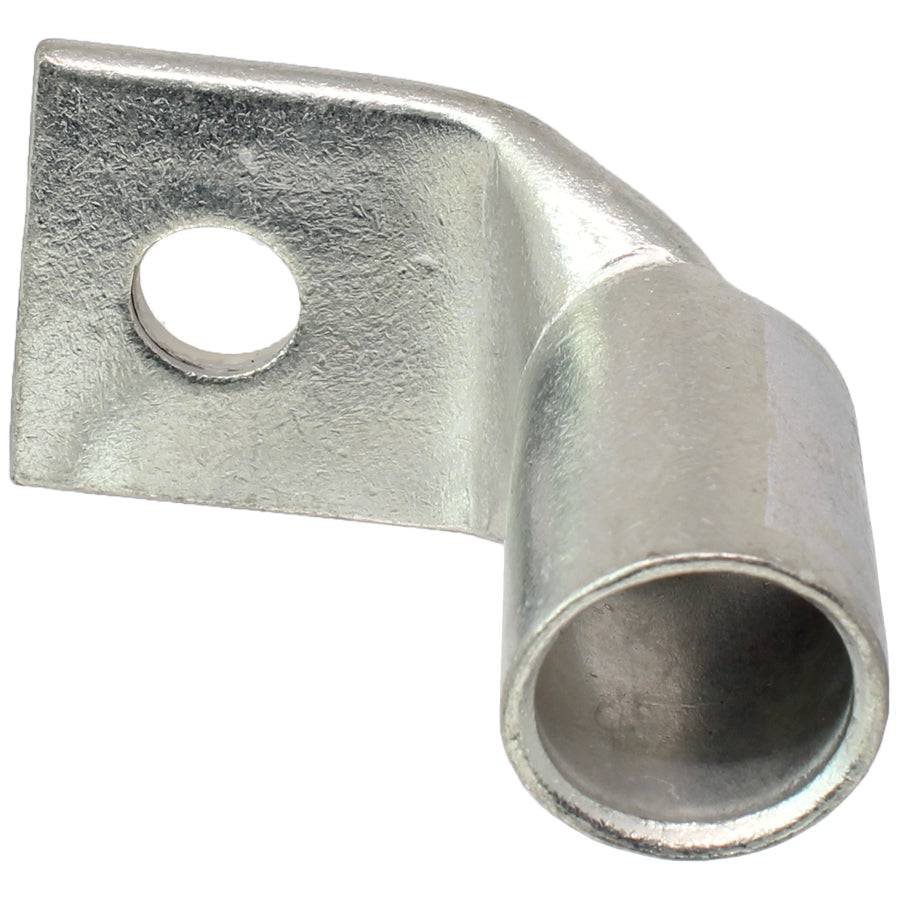

SBF30058 - 90 Degree Short Barrel Compression Lug - 300 MCM - 5/8" Stud

Original price $9.40 - Original price $9.40
Original price
$9.40
$9.40 - $9.40
Current price $9.40
SKU SBF30058
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 300 MCM
Color: White
C: 17.1mm (0.68")
E: 16.8mm (0.66")
D: 13.7mm (0.54")
G: 6.4mm (0.29")
B: 17.5mm (0.69")
Terminal Material: Tin-Plated Copper
Stud Size: 5/8"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 85 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
