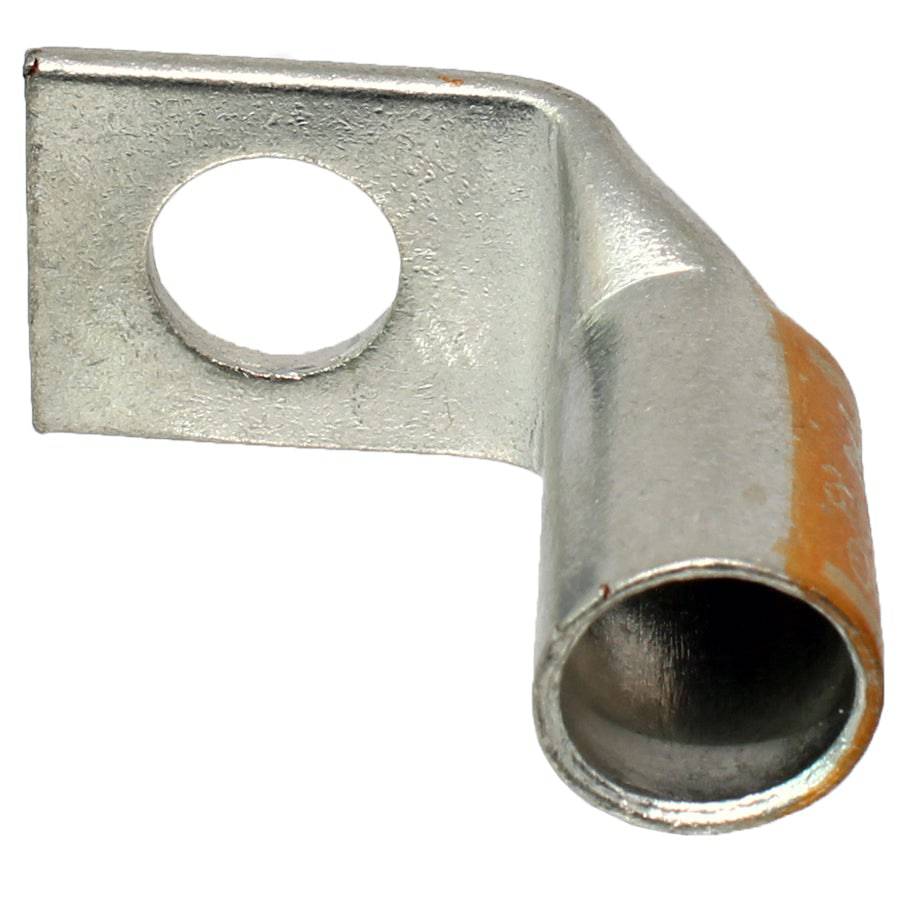

SBF3012 - 90 Degree Short Barrel Compression Lug - 3/0 AWG - 1/2" Stud - Ferrules Direct

SBF3012 - 3/0 AWG 90 Degree Terminal Lug, Short Barrel, 1/2" Stud, 1 Piece

Name: SBF3012 - 3/0 AWG 90 Degree Terminal Lug, Short Barrel, 1/2" Stud, 1 Piece
Brand: Ferrules Direct
SKU: SBF3012
Price: 4.13 USD
Availability: OutOfStock

Sold out

$4.13 - $4.13

$4.13

$4.13 - $4.13

$4.13

SKU SBF3012

Availability:

Out of stock

Quantity

false

90-DEGREE SHORT BARREL COMPRESSION LUGS

Compression lugs, also known as cable lugs, are designed to terminate copper conductors. 90-degree short barrel compression lugs offer a space-saving solution for electrical connections in tight spaces. Their unique 90-degree bend allows for efficient cable routing where straight lugs might be impractical. The short barrel design further minimizes the footprint, making them ideal for compact installations. Each lug is electro-tin plated to resist corrosion and ensure long-lasting conductivity. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	3/0 AWG
Stud Size (E)	1/2" Stud
Cut Sheet (PDF)	Download file
Color	Orange
Tab Width (D)	23mm (0.91")
Dimensions (G)	12.7mm (0.50")
Dimensions (C)	13mm (0.51")
Dimensions (E)	13.1mm (0.52")
Barrel Length (B)	24.4mm (0.96")
Recommended Conductor Material	Tin Plated Copper
Maximum Operating Temperature	90°C
Maximum Electrical Rating	35KV
Maximum Electrical Current	200A
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
