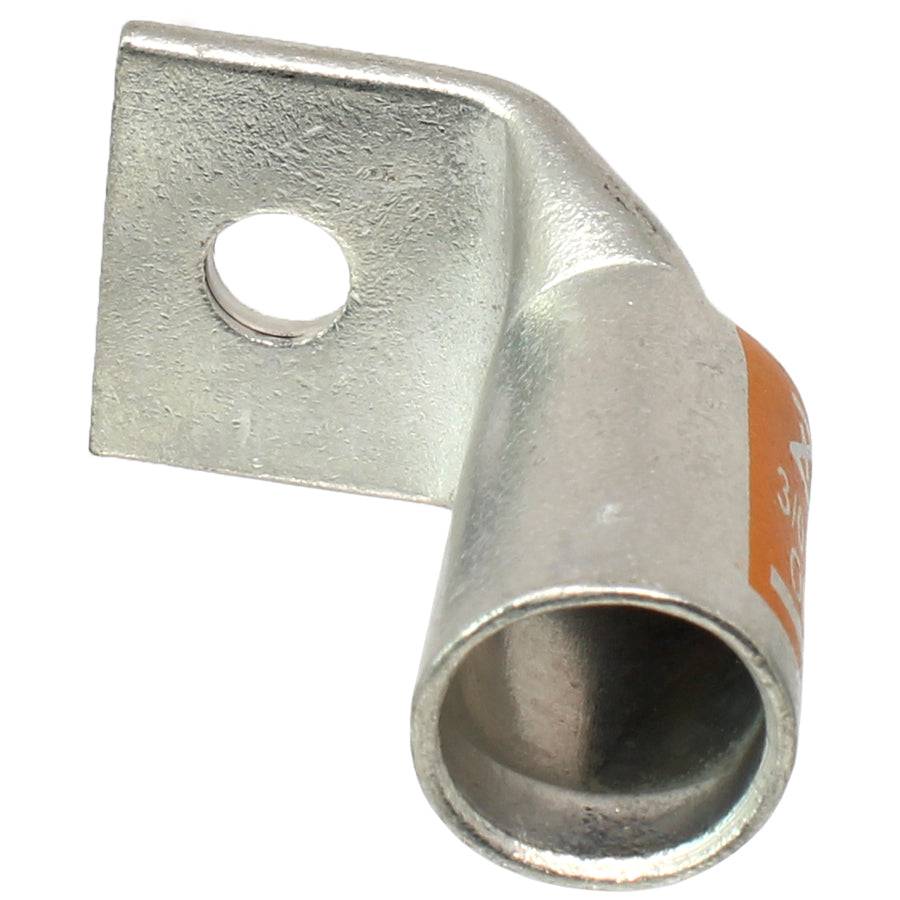

SBF3014 - 90 Degree Short Barrel Compression Lug - 3/0 AWG - 1/4" Stud

Original price $3.80 - Original price $3.80
Original price
$3.80
$3.80 - $3.80
Current price $3.80
SKU SBF3014
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 3/0 AWG
Color: Orange
C: 13mm (0.51")
E: 7.1mm (0.28")
D: 23mm (0.91")
G: 8.3mm (0.33")
B: 24.4mm (0.96")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 200 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
