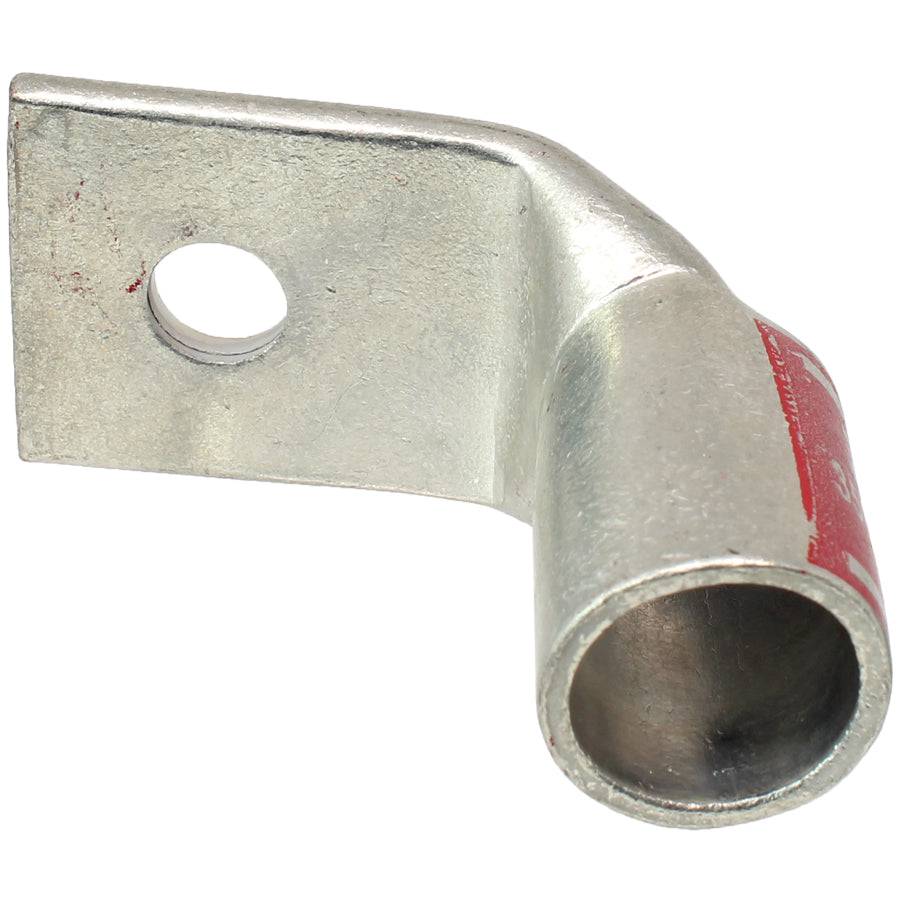

SBF35038 - 90 Degree Short Barrel Compression Lug - 350 MCM - 3/8" Stud
Original price
$10.92
-
Original price
$10.92
Original price
$10.92
$10.92
-
$10.92
Current price
$10.92
SKU SBF35038
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 350 MCM |
Color: | Red |
C: | 18.3mm (0.72") |
E: | 10.4mm (0.41") |
D: | 32.5mm (1.28") |
G: | 15.2mm (0.60") |
B: | 32mm (1.26") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 3/8" |
Temperature Rating: | 90oC |
Voltage Rating: | 35KV |
Maximum Amp Rating: | 310 Amps |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
