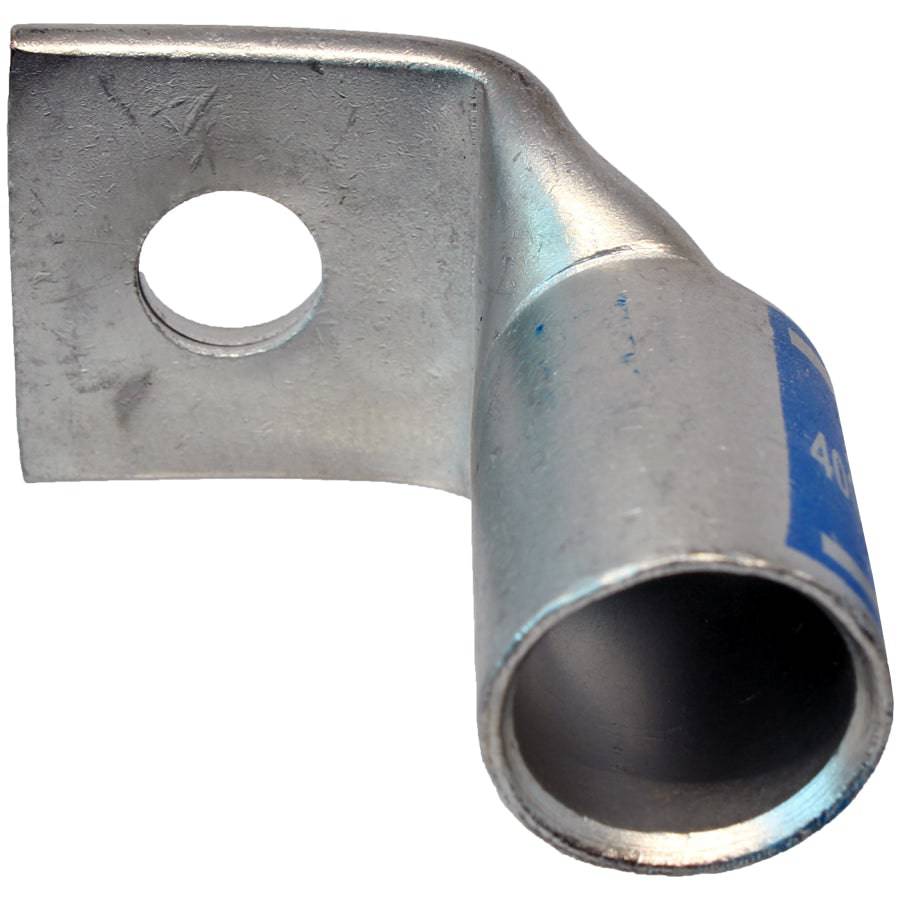

SBF40012 - 90 Degree Short Barrel Compression Lug - 400 MCM - 1/2" Stud

Original price $12.61 - Original price $12.61
Original price
$12.61
$12.61 - $12.61
Current price $12.61
SKU SBF40012
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 400 MCM
Color: Blue
C: 19.8mm (0.78")
E: 13mm (0.51")
D: 35.3mm (1.39")
G: 15.2mm (0.60")
B: 32.0mm (1.26")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 335 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:
