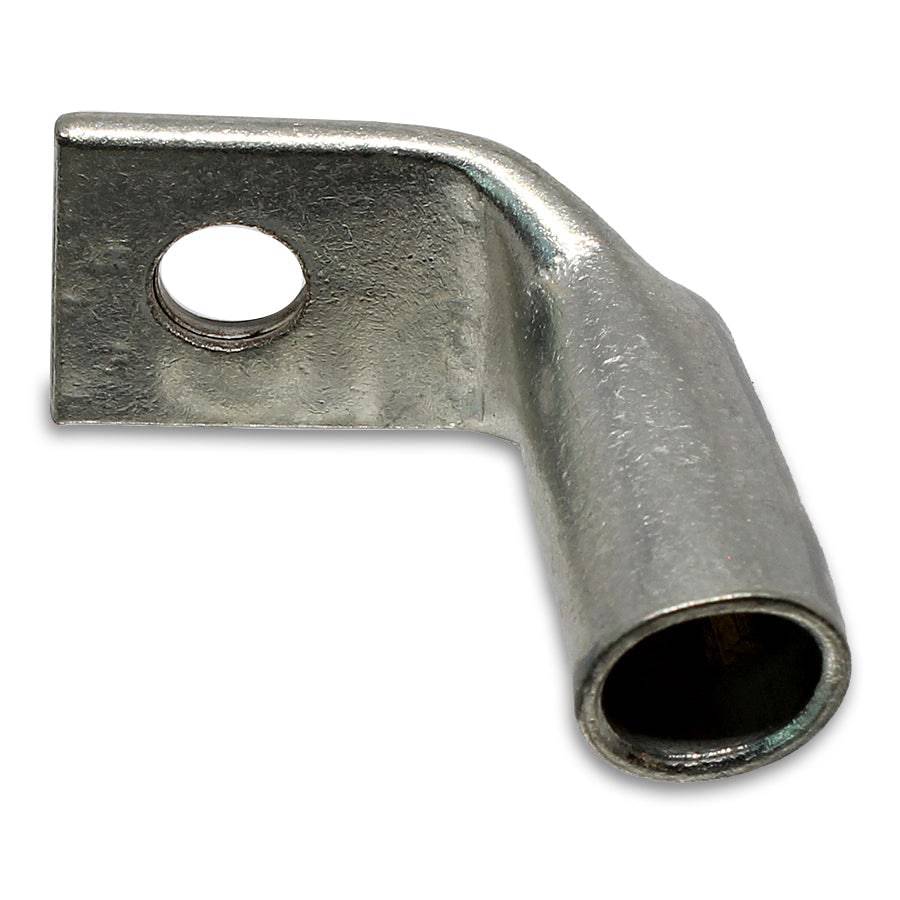

SBF410 - 90 Degree Short Barrel Compression Lug - 4 AWG - #10 Stud

Name: SBF410 - 90 Degree Short Barrel Compression Lug - 4 AWG - #10 Stud
Brand: Ferrules Direct
SKU: SBF410
Price: 1.13 USD
Availability: InStock

$1.13 - $1.13

$1.13

$1.13 - $1.13

$1.13

SKU SBF410

Availability:

in stock, ready to be shipped

Quantity

true

SHORT BARREL COMPRESSION LUGS

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	4 AWG
Stud Size (E)	#10
Cut Sheet (PDF)	Download file
Barrel Type	Short Barrel
Material	Tin-Plated Copper
Color	Gray
Barrel Width (D)	13.7mm (0.54")
Dimensions (G)	6.4mm (0.29")
Dimensions (C)	7.1mm (0.28")
Dimensions (E)	5.6mm (0.22")
Flange Length (B)	17.5mm (0.69")
Maximum Electrical Rating	35KV
Maximum Electrical Current	85A
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
