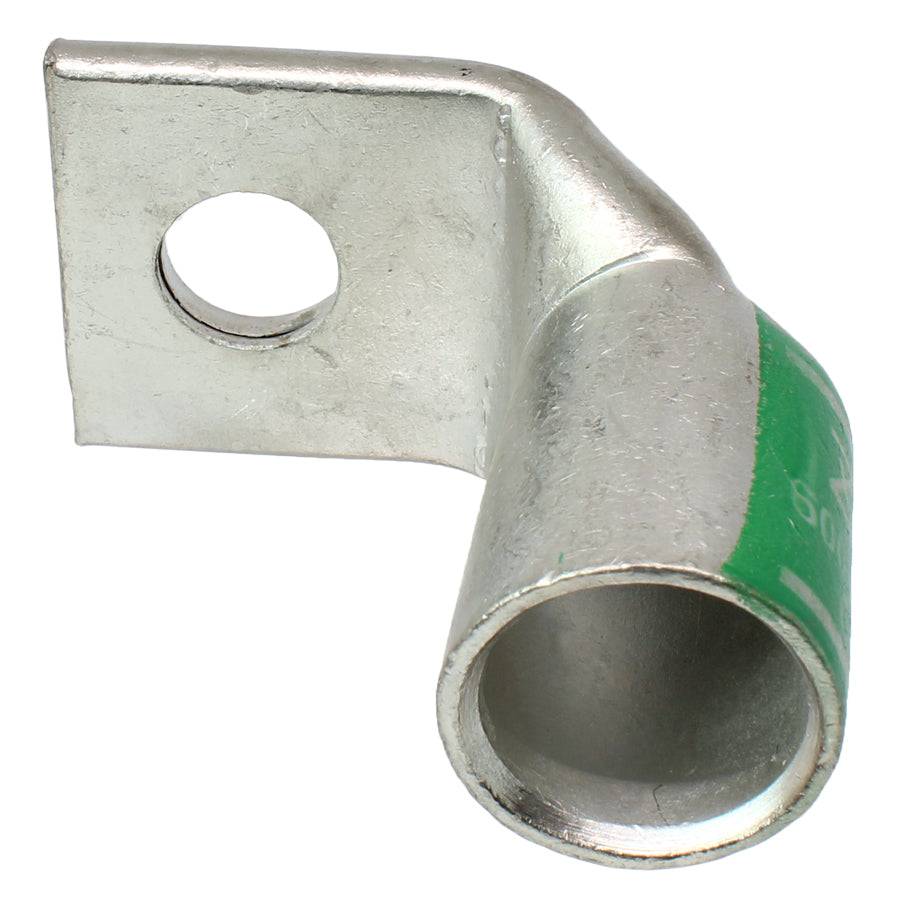

SBF60012 - 90 Degree Short Barrel Compression Lug - 600 MCM - 1/2" Stud

Sold out
Original price $28.17 - Original price $28.17
Original price
$28.17
$28.17 - $28.17
Current price $28.17
SKU SBF60012
Availability:
Out of stock
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 600 MCM
Color: Green
C: 24mm (0.95")
E: 13mm (0.51")
D: 43.7mm (1.72")
G: 17.8mm (0.70")
B: 39.4mm (1.55")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 420 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:
