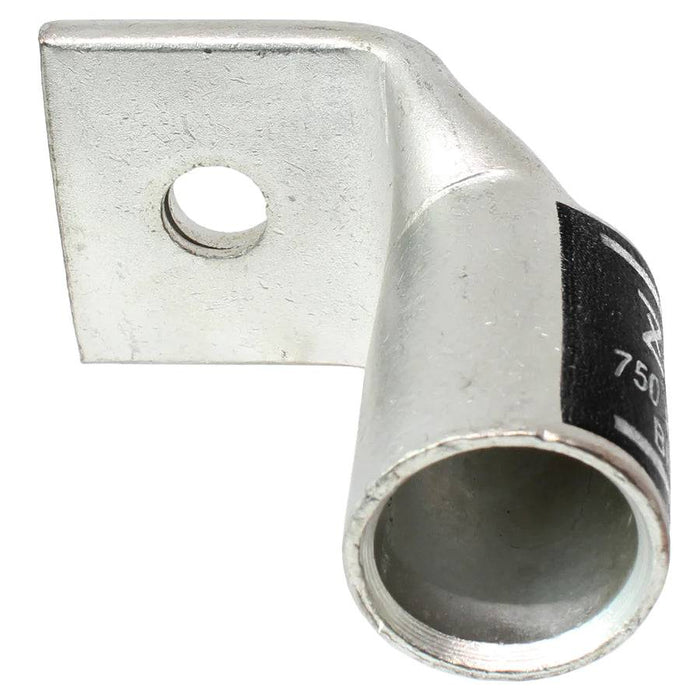

SBF75012 - 90 Degree Short Barrel Compression Lug - 750 MCM - 1/2" Stud

Original price $34.51 - Original price $34.51
Original price
$34.51
$34.51 - $34.51
Current price $34.51
SKU SBF75012
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 750 MCM
Color: Black
C: 26.8mm (1.06")
E: 13.0mm (0.51")
D: 48.3mm (1.90")
G: 19.8mm (0.78")
B: 44.5mm (1.75")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Temperature Rating: 90°C
Voltage Rating: 35KV
Maximum Amp Rating: 475 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
