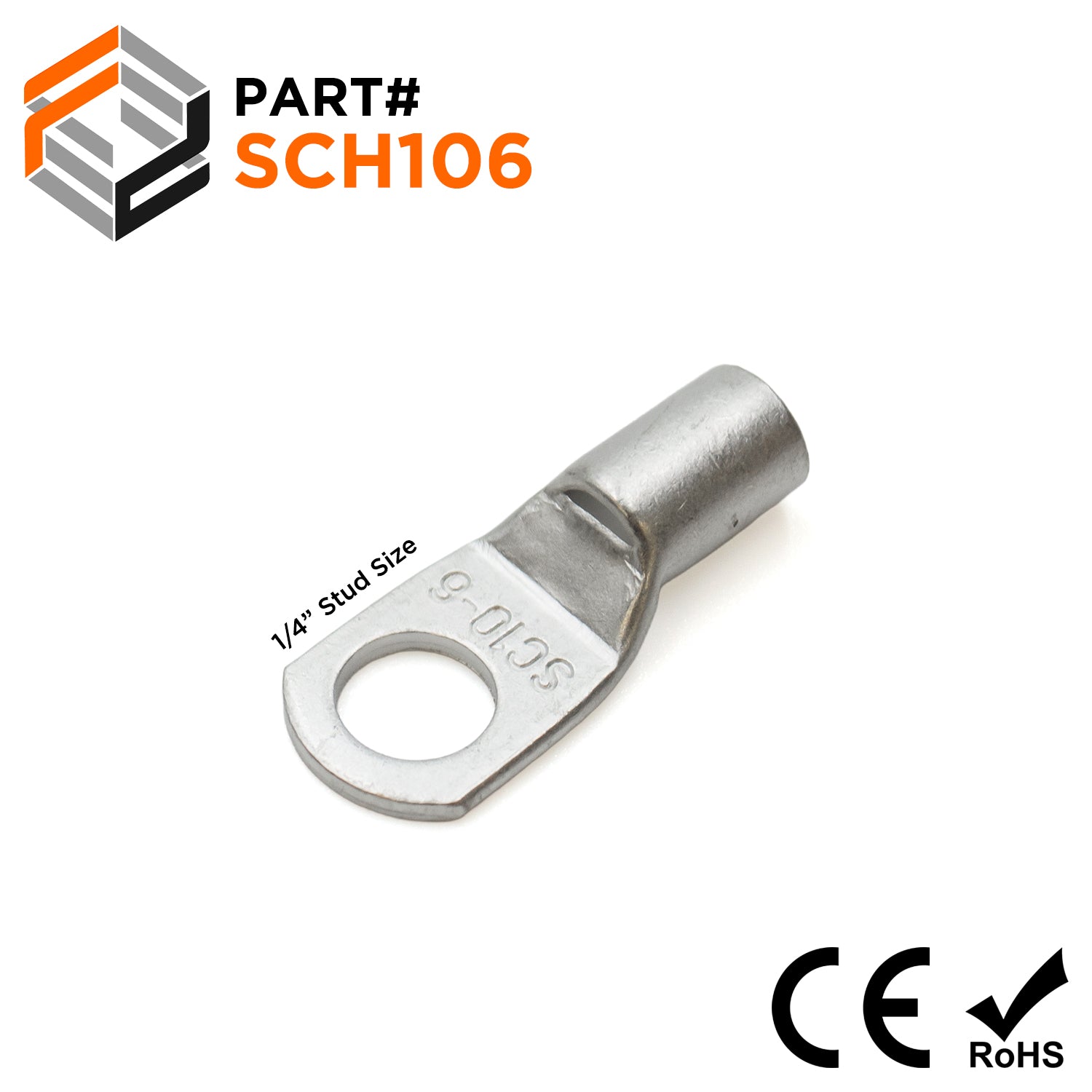

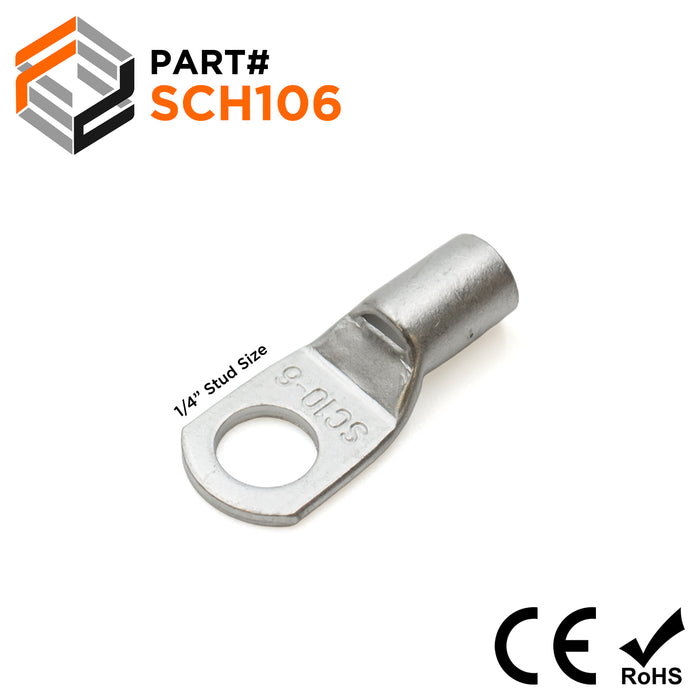

SCH106 - 8 AWG Non Insulated Tubular Ring Lugs, 1/4" Stud, 50 Pieces
Sold out
Original price
$11.66
-
Original price
$11.66
Original price
$11.66
$11.66
-
$11.66
Current price
$11.66
SKU SCH106
Quantity: 50 Pieces
Availability:
Out of stock

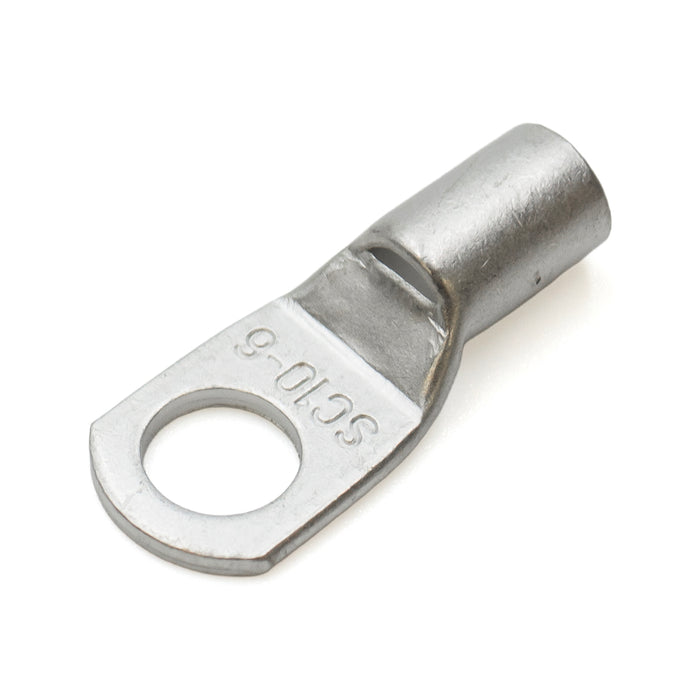

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 8 AWG |
| F: | 9.0mm (0.35") |
| W: | 10.3mm (0.41") |
| L: | 24.0mm (0.94") |
| D: | 6.1mm (0.24") |
| D1: | 4.5mm (0.18") |
| D2: | 6.5mm (0.26") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 1/4" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 50 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
