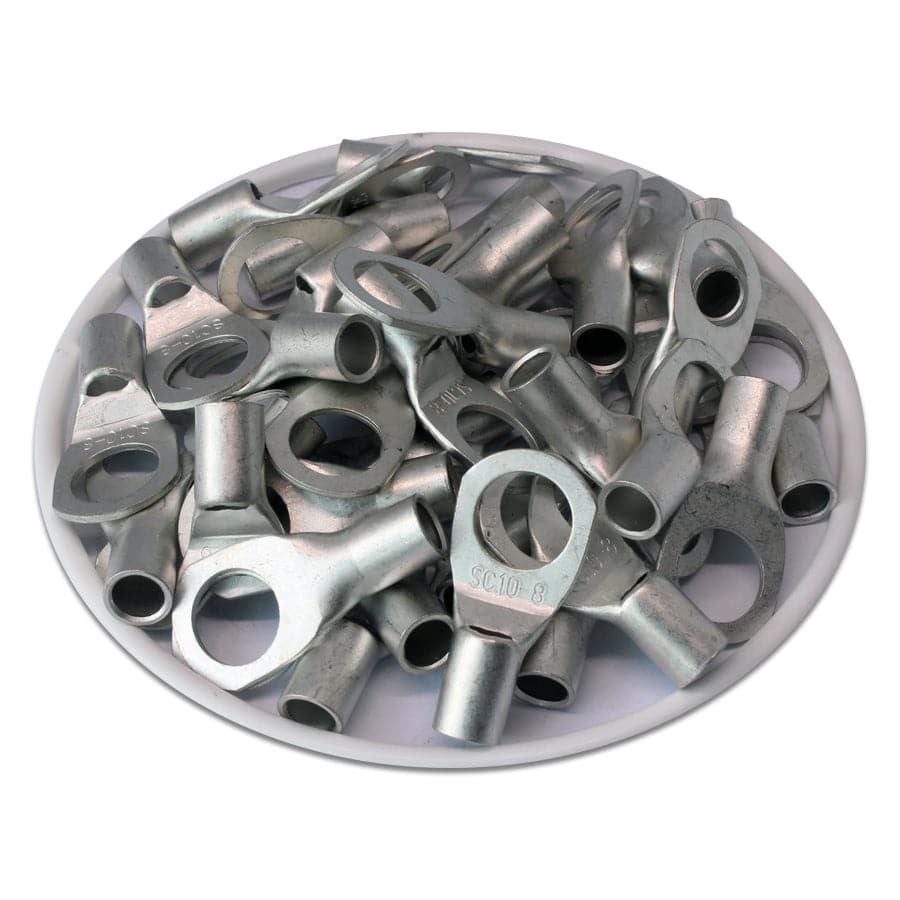

SCH108 - Non Insulated Tubular Ring Lugs - 8 AWG
Original price
$11.66
-
Original price
$11.66
Original price
$11.66
$11.66
-
$11.66
Current price
$11.66
SKU SCH108
Availability:
in stock, ready to be shipped

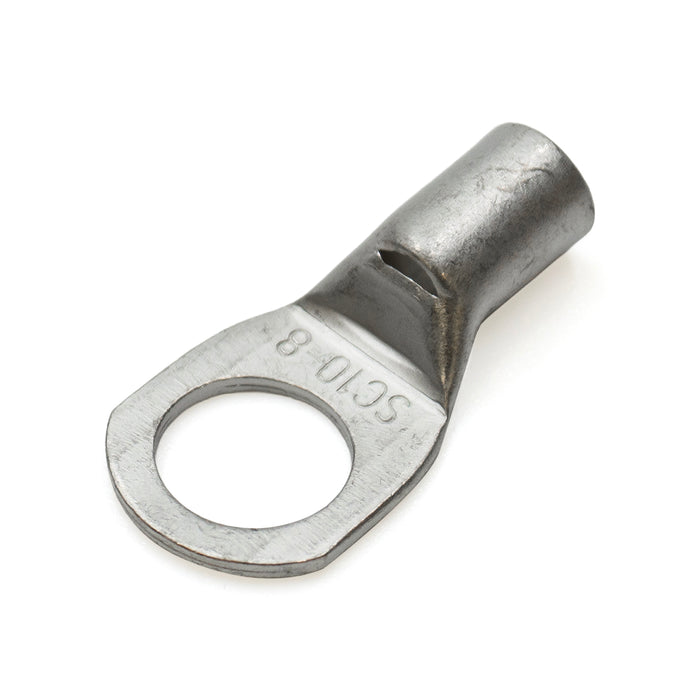

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 8 AWG |
| F: | 9.0mm (0.35") |
| W: | 12.0mm (0.47") |
| L: | 25.0mm (0.98") |
| D: | 6.3mm (0.25") |
| D1: | 4.5mm (0.18") |
| D2: | 8.5mm (0.33") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |

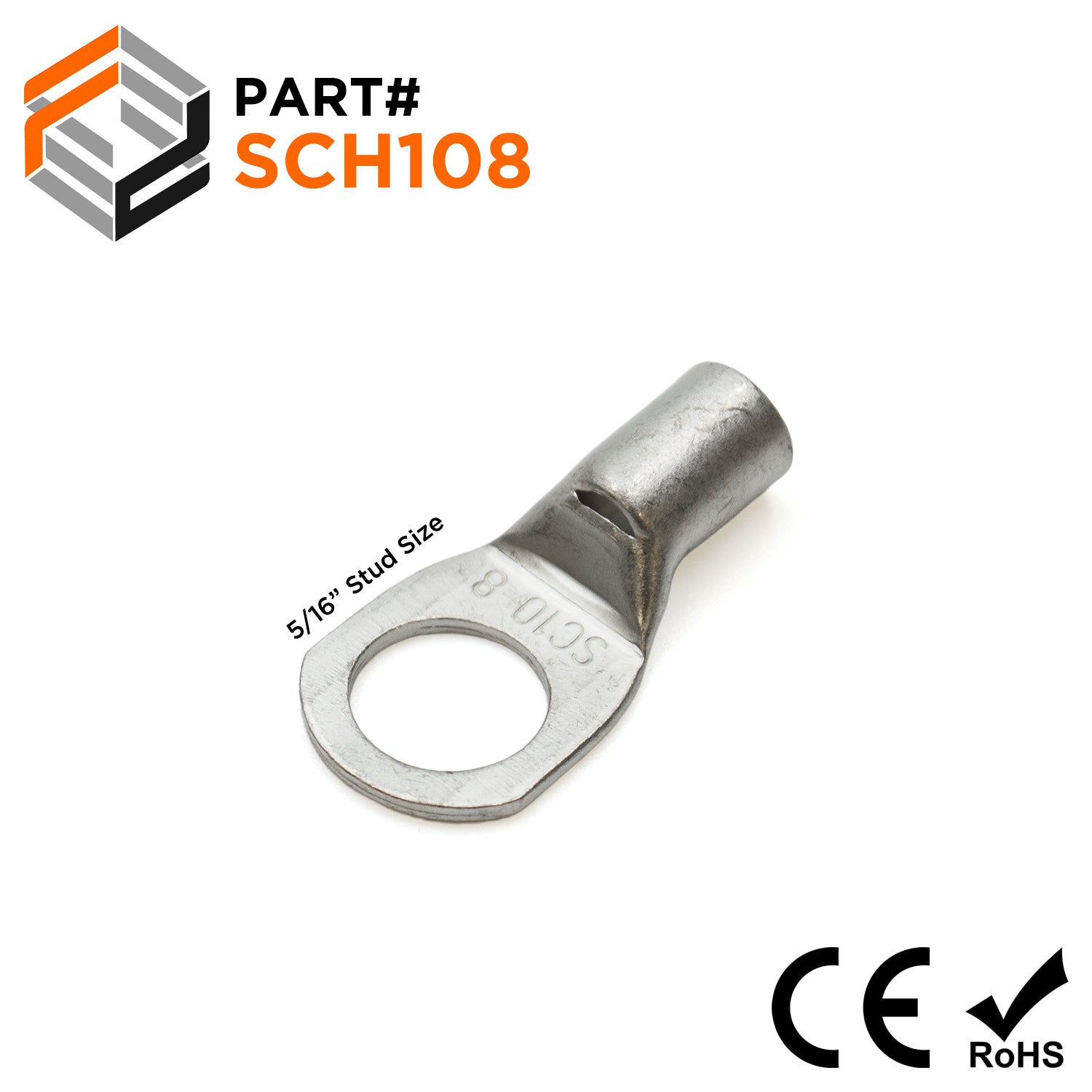

| Stud Size: | 5/16" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 50 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
