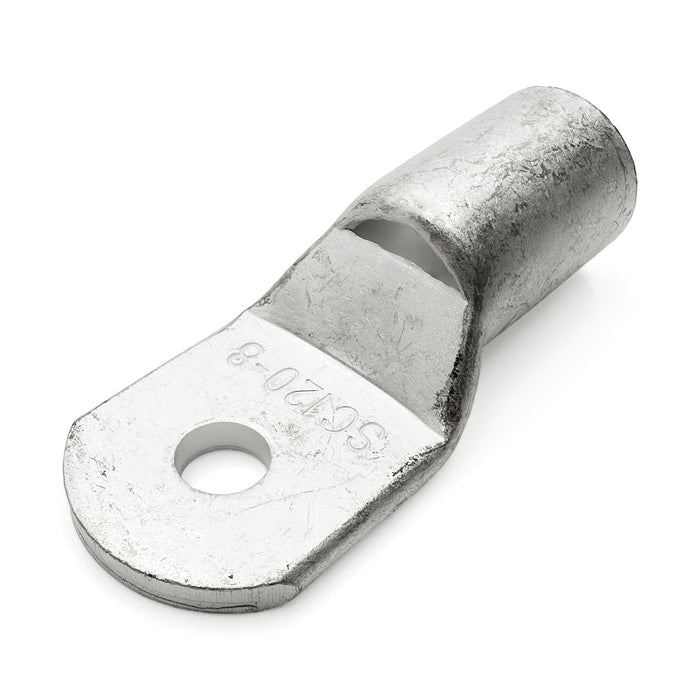

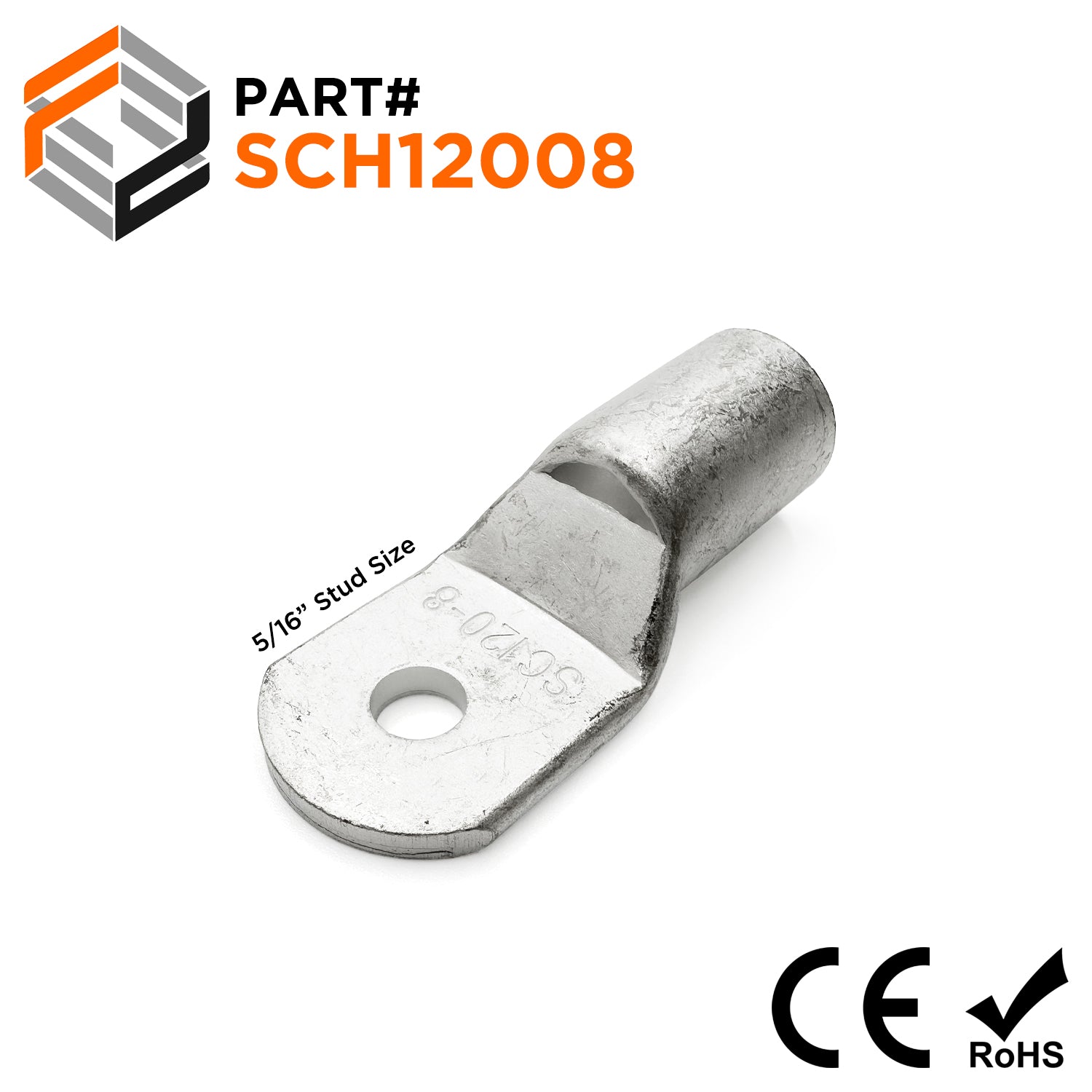

SCH12008 - Non Insulated Tubular Ring Lugs - 4/0 AWG - 5/16" Stud

Original price $18.24 - Original price $18.24
Original price
$18.24
$18.24 - $18.24
Current price $18.24
SKU SCH12008
Availability:
in stock, ready to be shipped
Piece Quantity: 5 Pieces

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.


Dimensions & Features:

Wire Range: 4/0 AWG
F: 25.5mm (1.0")
W: 27.6mm (1.08")
L: 63.0mm (2.48")
D: 19.0mm (0.57")
D1: 15.0mm (0.59")
D2: 8.5mm (0.33")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 5/16"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Max Electrical Current: 230AMPS
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross Reference Parts:

Documents

Click to view product spec sheet:
