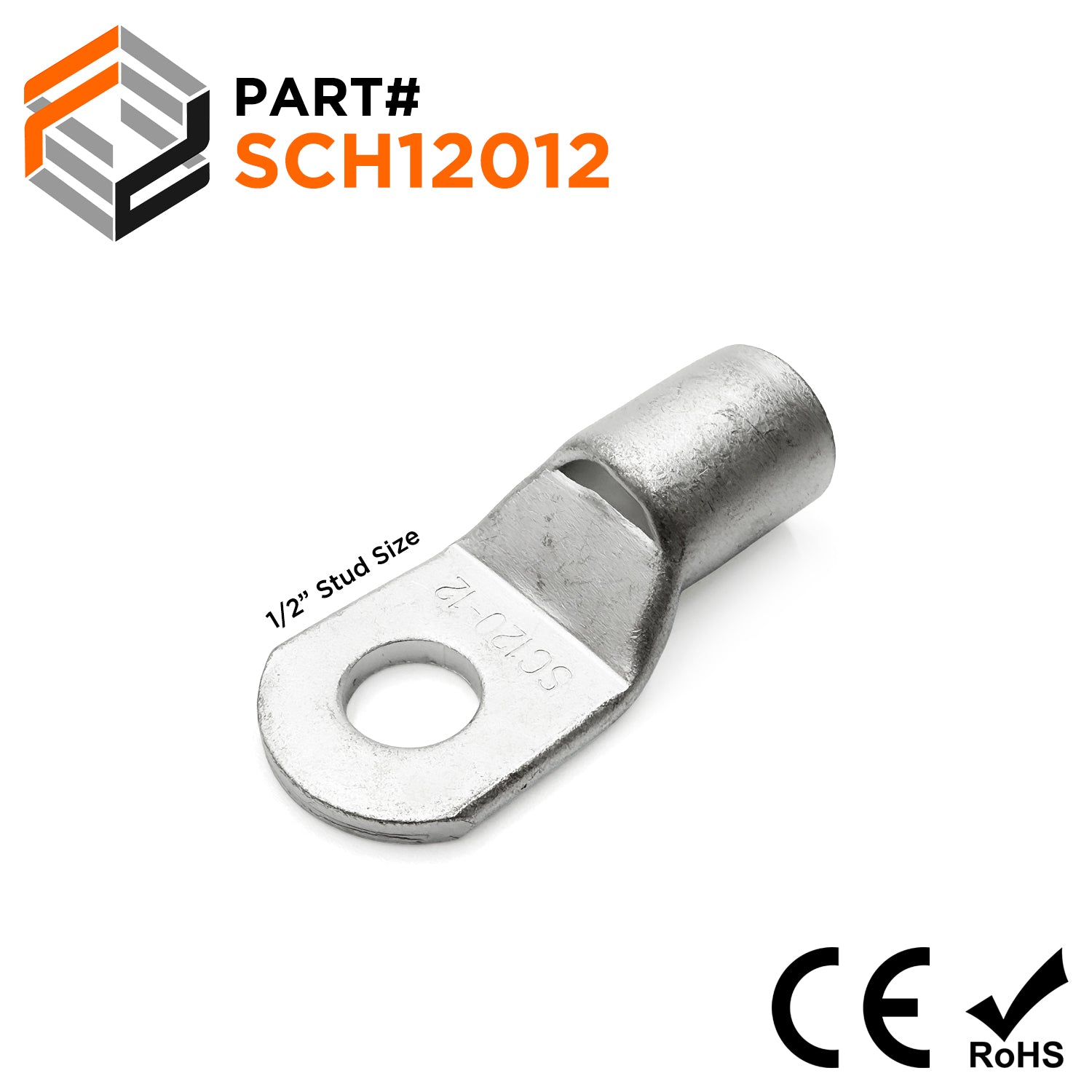

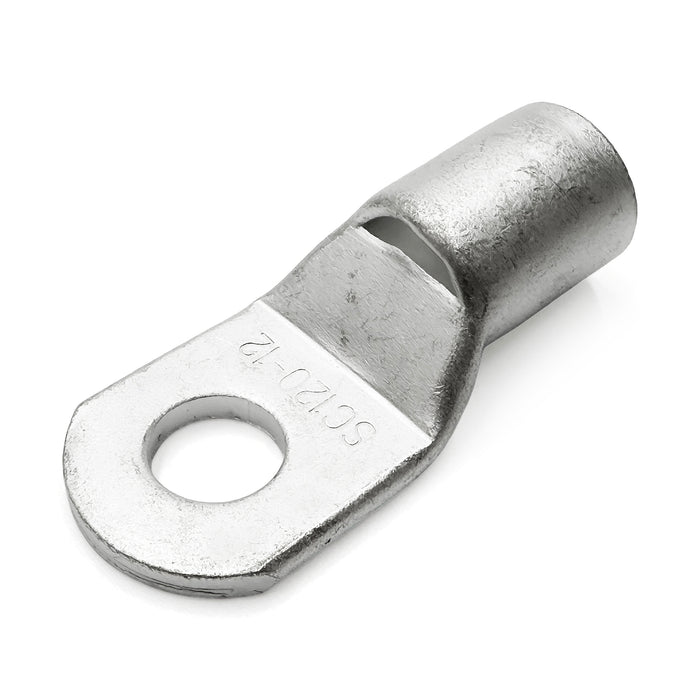

SCH12012 - Non Insulated Tubular Ring Lugs - 4/0 AWG
Original price
$18.24
-
Original price
$18.24
Original price
$18.24
$18.24
-
$18.24
Current price
$18.24
SKU SCH12012
Availability:
in stock, ready to be shipped

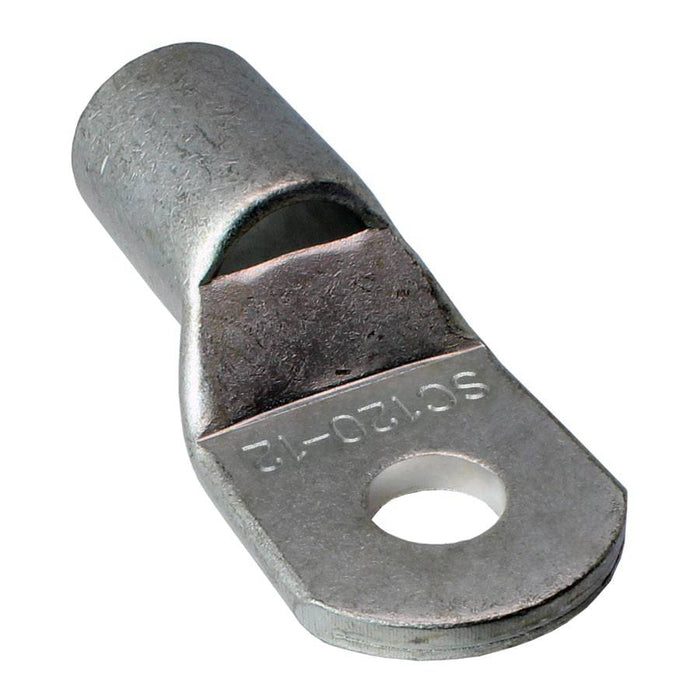

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Wire Size: | 4/0 AWG |
F: | 25.5mm (1.00") |
W: | 27.6mm (1.09") |
L: | 63mm (2.48") |
D: | 19.0mm (0.75") |
D1: | 15.0mm (0.59") |
D2: | 13.0mm (0.51") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | None |
Stud Size: | 1/2" |
Temperature Rating: | 75oC |
Voltage Rating: | 600 Volts |
Maximum Amp Ordering: | 230 Amps |
UL Recognized: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
