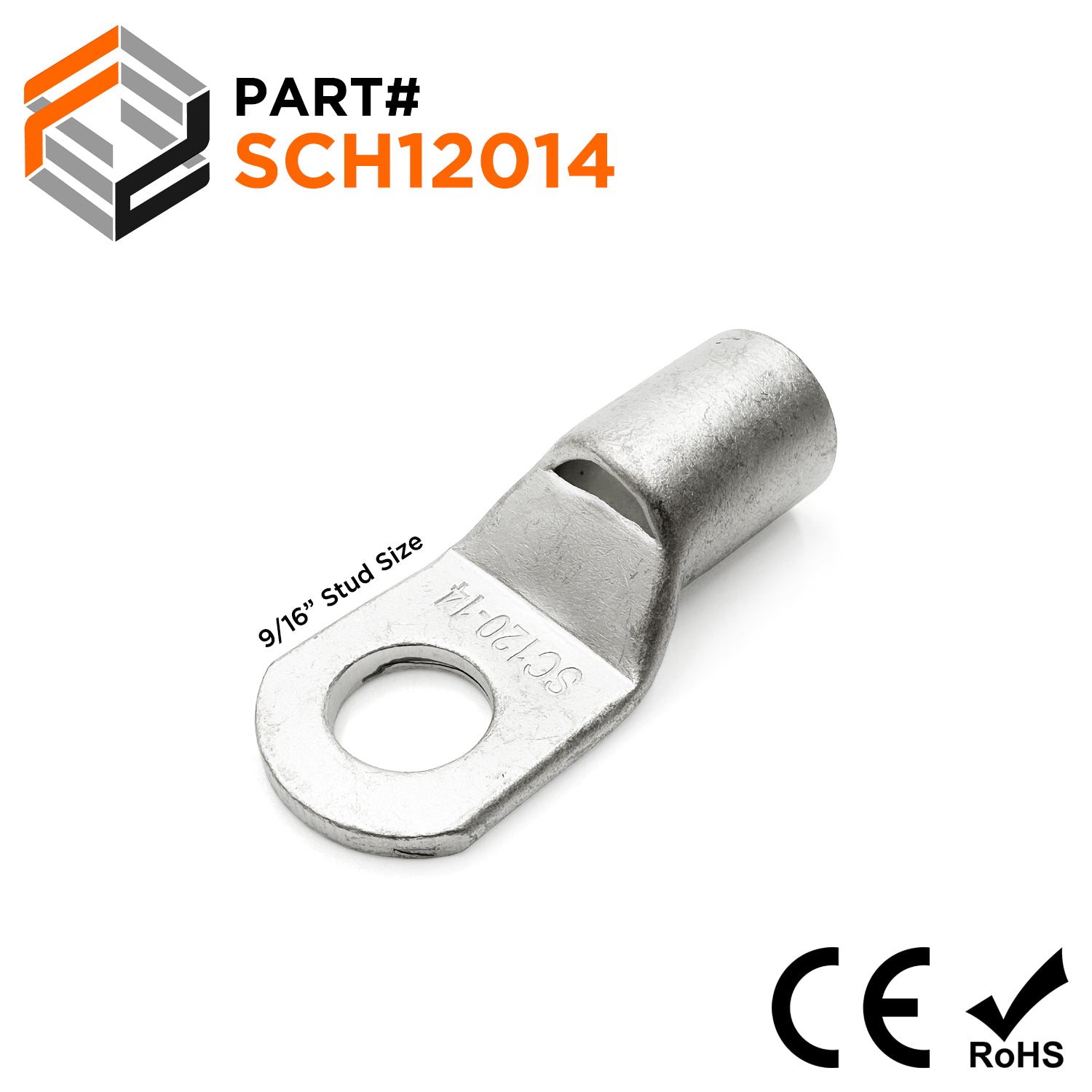

SCH12014 - Non Insulated Tubular Ring Lugs - 4/0 AWG
Original price
$24.88
-
Original price
$24.88
Original price
$24.88
$24.88
-
$24.88
Current price
$24.88
SKU SCH12014
Availability:
in stock, ready to be shipped

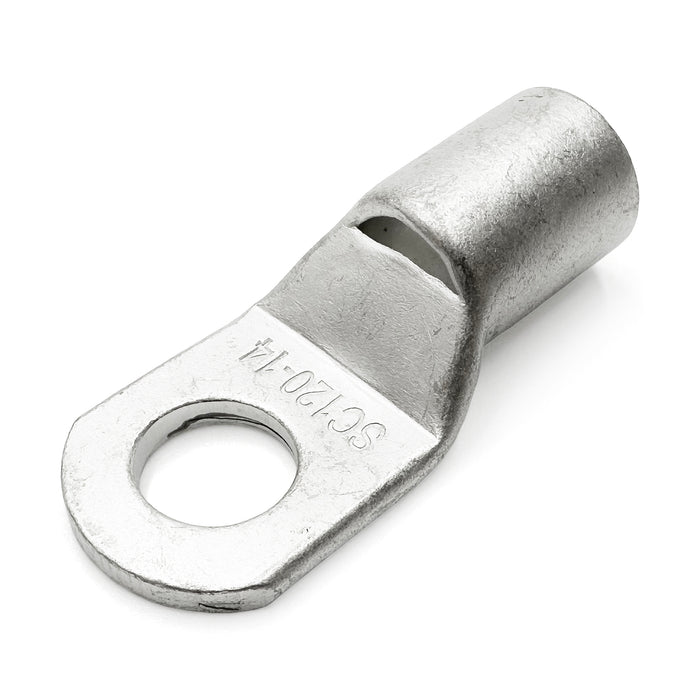

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4/0 AWG |
| F: | 25.5mm (1.00") |
| W: | 27.6mm (1.09") |
| L: | 63mm (2.48") |
| D: | 19.0mm (0.75") |
| D1: | 15.0mm (0.59") |
| D2: | 15.0mm (0.59") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 9/16" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 230 Amps |
| UL Recogonized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
