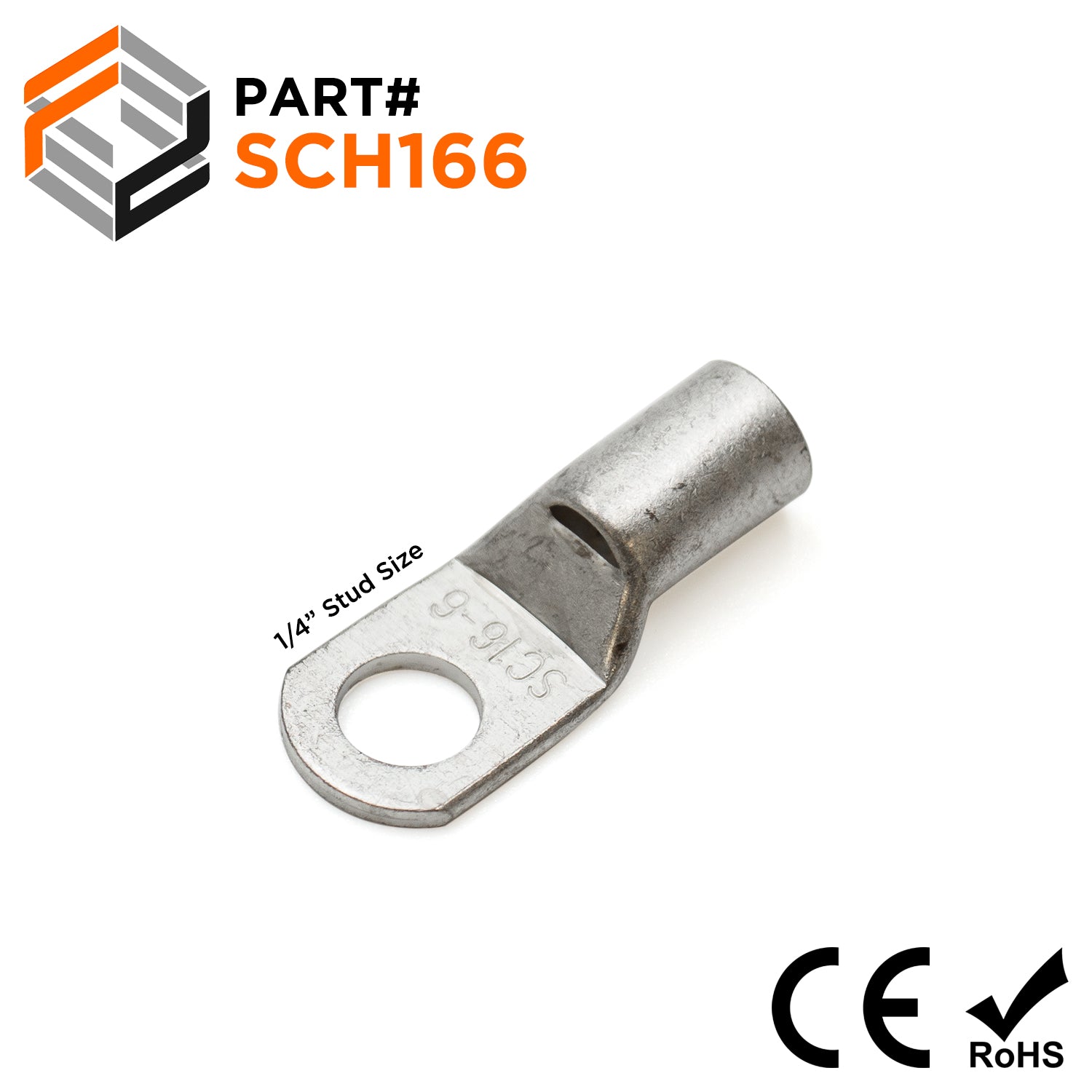

SCH166 - Non Insulated Tubular Ring Lugs - 6 AWG
Original price
$19.18
-
Original price
$19.18
Original price
$19.18
$19.18
-
$19.18
Current price
$19.18
SKU SCH166
Quantity: 50 Pieces
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 6 AWG |
| F: | 11.0mm (0.43") |
| W: | 11.0mm (0.43") |
| L: | 27.5mm (1.08") |
| D: | 7.3mm (0.29") |
| D1: | 5.7mm (0.22") |
| D2: | 6.5mm (0.26") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 1/4" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 65 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
