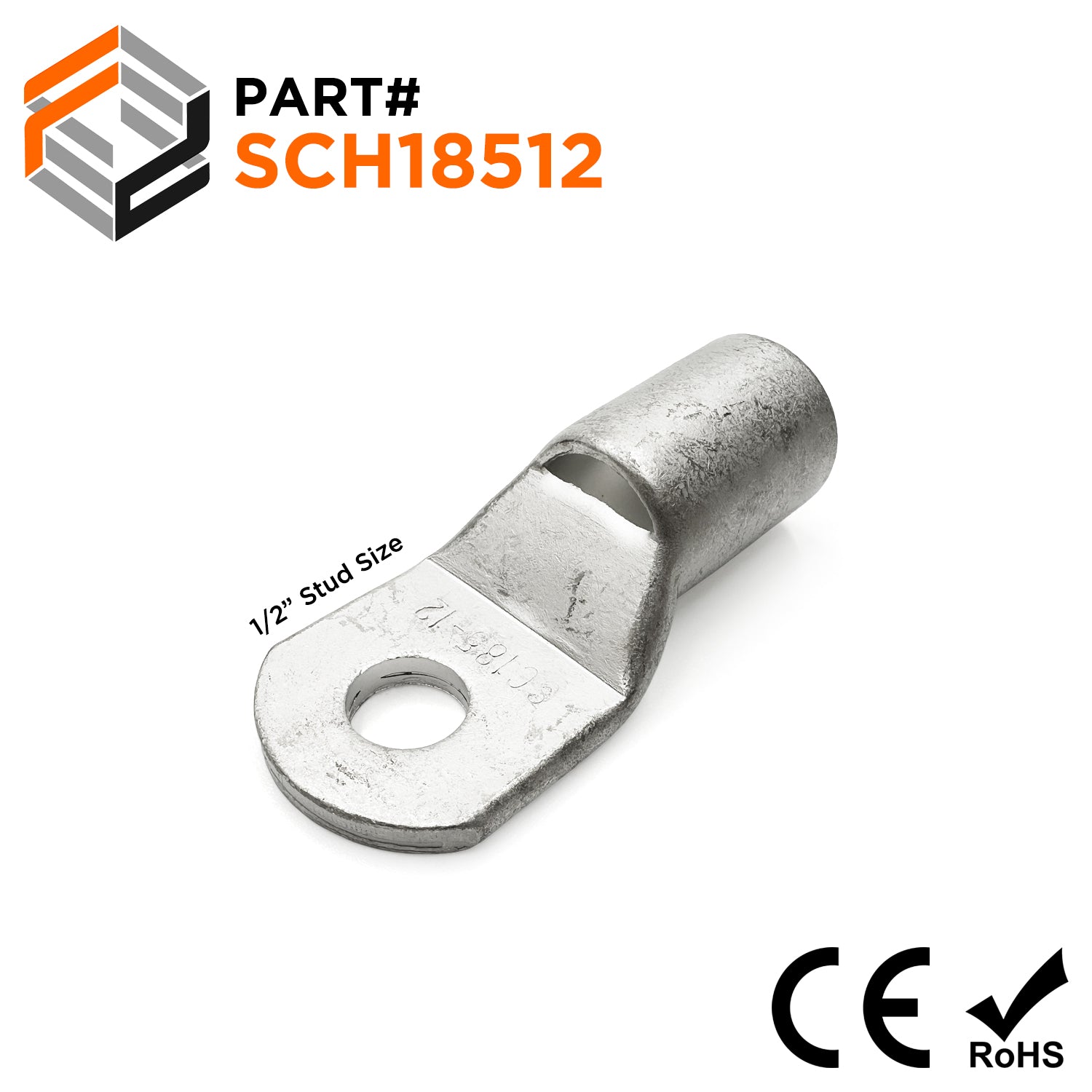

SCH18512 - Non Insulated Tubular Ring Lugs - 365MCM
Original price
$40.38
-
Original price
$40.38
Original price
$40.38
$40.38
-
$40.38
Current price
$40.38
SKU SCH18512
Availability:
in stock, ready to be shipped

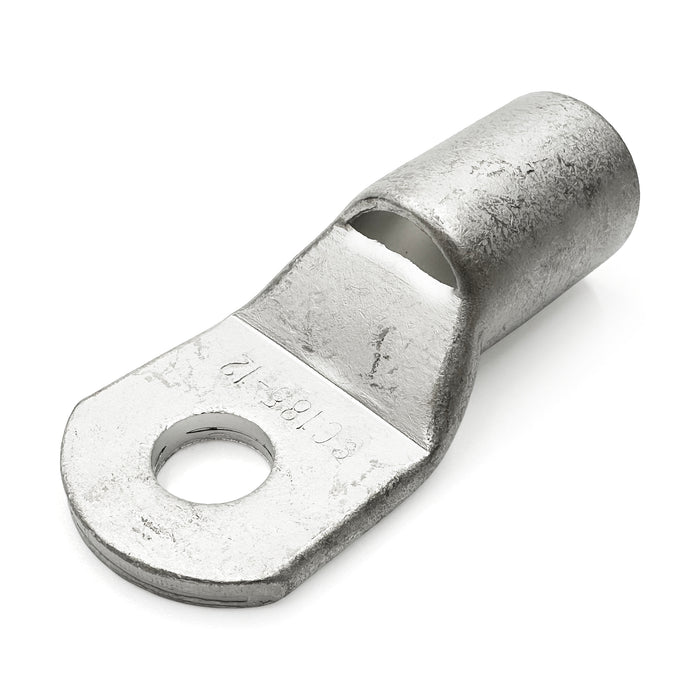

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Wire Size: | 365MCM |
F: | 32.0mm (1.26") |
W: | 34.5mm (1.36") |
L: | 77mm (3.03") |
D: | 23.5mm (0.93") |
D1: | 19.5mm (0.77") |
D2: | 13.0mm (0.51") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | None |
Stud Size: | 1/2" |
Temperature Rating: | 75oC |
Voltage Rating: | 600 Volts |
Maximum Amp Ordering: | 310 Amps |
UL Recognized: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
