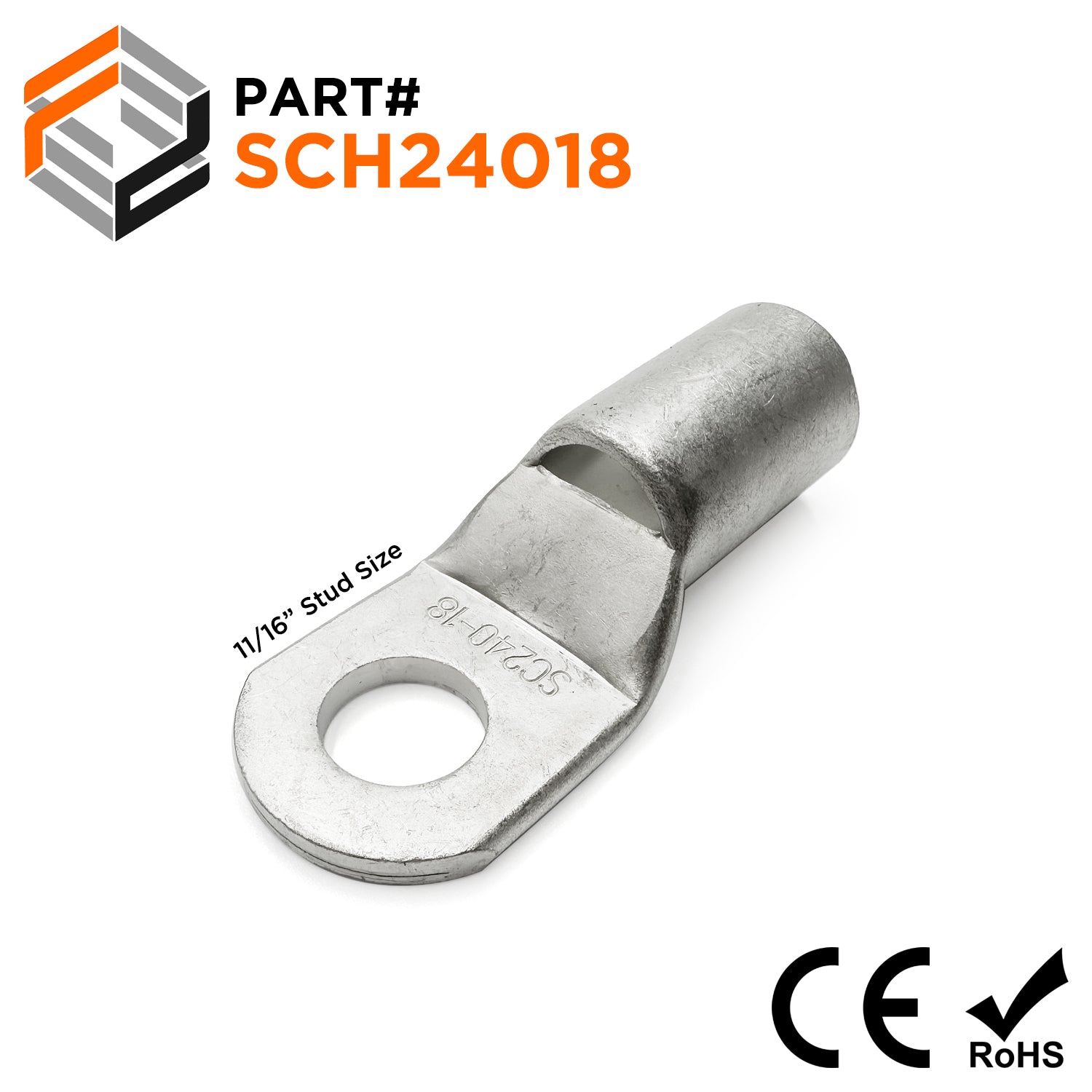

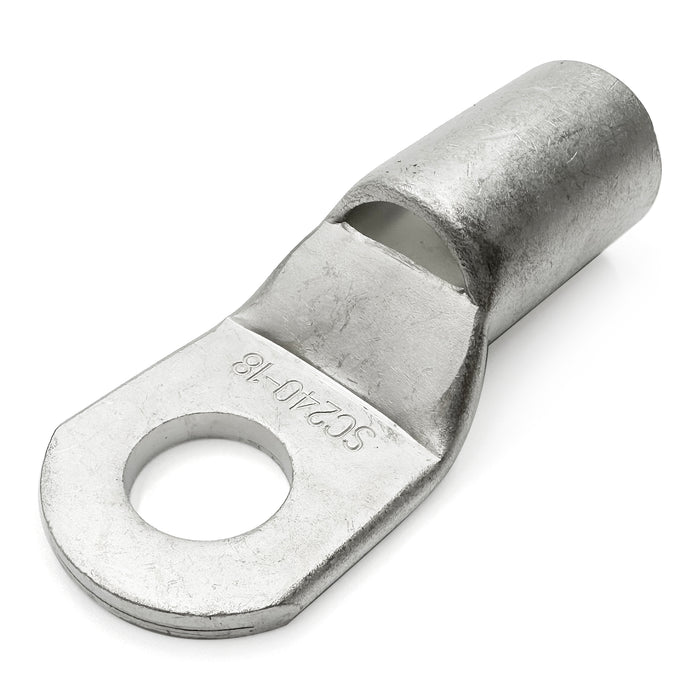

SCH24018 - Non Insulated Tubular Ring Lugs - 473MCM
Original price
$44.30
-
Original price
$44.30
Original price
$44.30
$44.30
-
$44.30
Current price
$44.30
SKU SCH24018
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 473MCM |
| F: | 39.0mm (1.54") |
| W: | 38.0mm (1.50") |
| L: | 90.5mm (3.56") |
| D: | 26.0mm (1.02") |
| D1: | 21.0mm (0.83") |
| D2: | 19.0mm (0.75") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 11/16" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 335 Amps |
| UL Recgonized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
