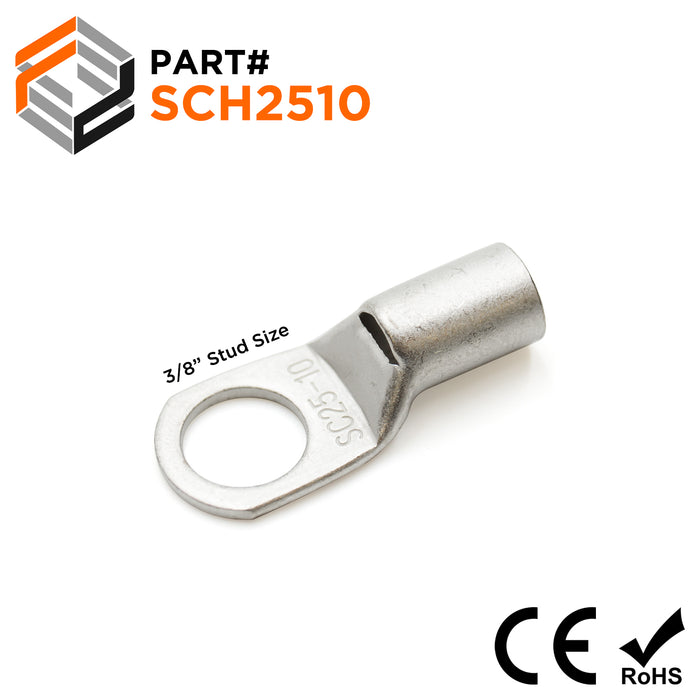

SCH2510 - 4 AWG Non Insulated Tubular Ring Lugs, 3/8" Stud - 25 Pieces
Original price
$10.73
-
Original price
$10.73
Original price
$10.73
$10.73
-
$10.73
Current price
$10.73
SKU SCH2510
Availability:
in stock, ready to be shipped

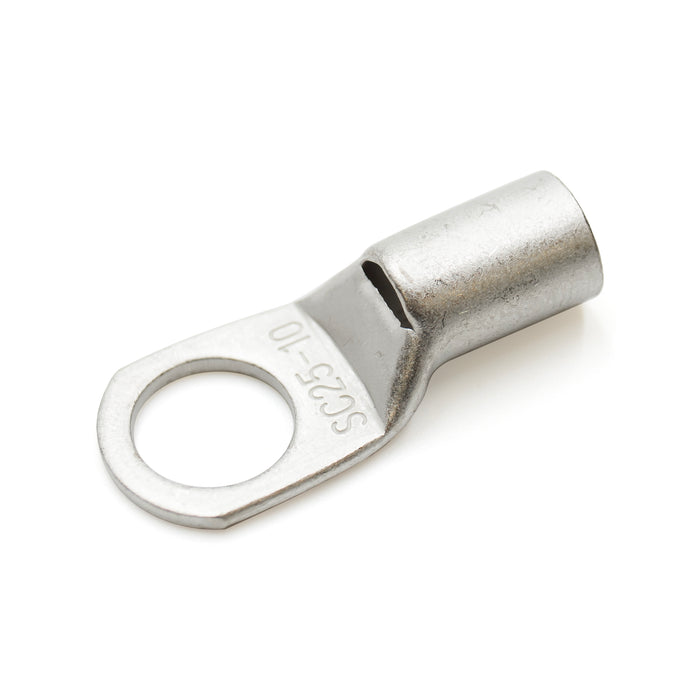

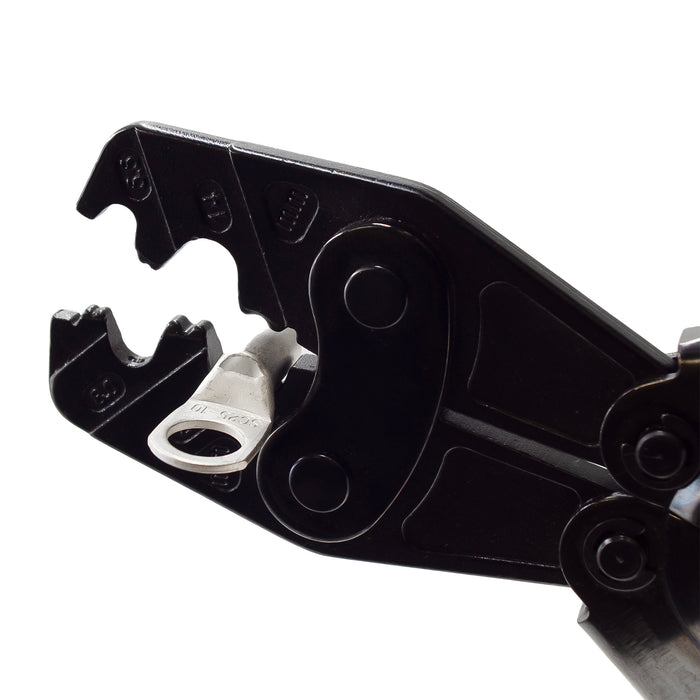

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 4 AWG |
| Stud Size: | 3/8" |
| F: | 13.6mm (0.54") |
| W: | 14.6mm (0.57") |
| L: | 33.7mm (1.33") |
| D: | 8.9mm (0.35") |
| D1: | 7.2mm (0.28") |
| D2: | 10.4mm (0.41") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 75°C |
| Voltage Rating: | 600 Volts |
| AMP Rating: | 85 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
