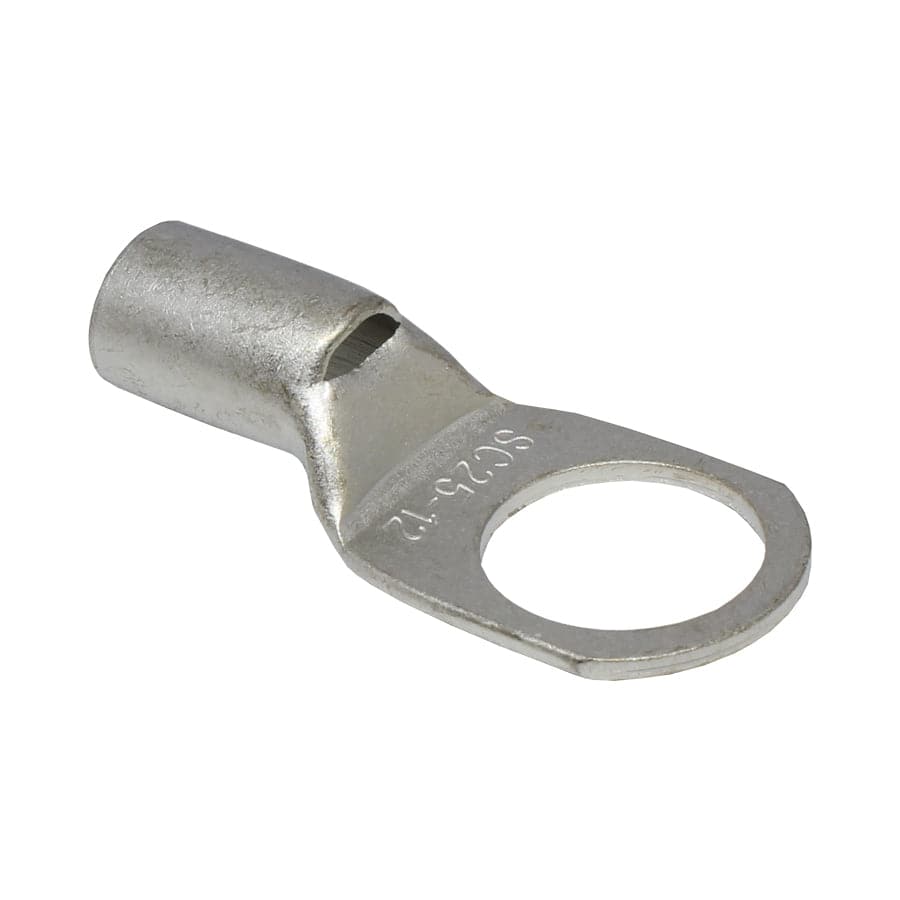

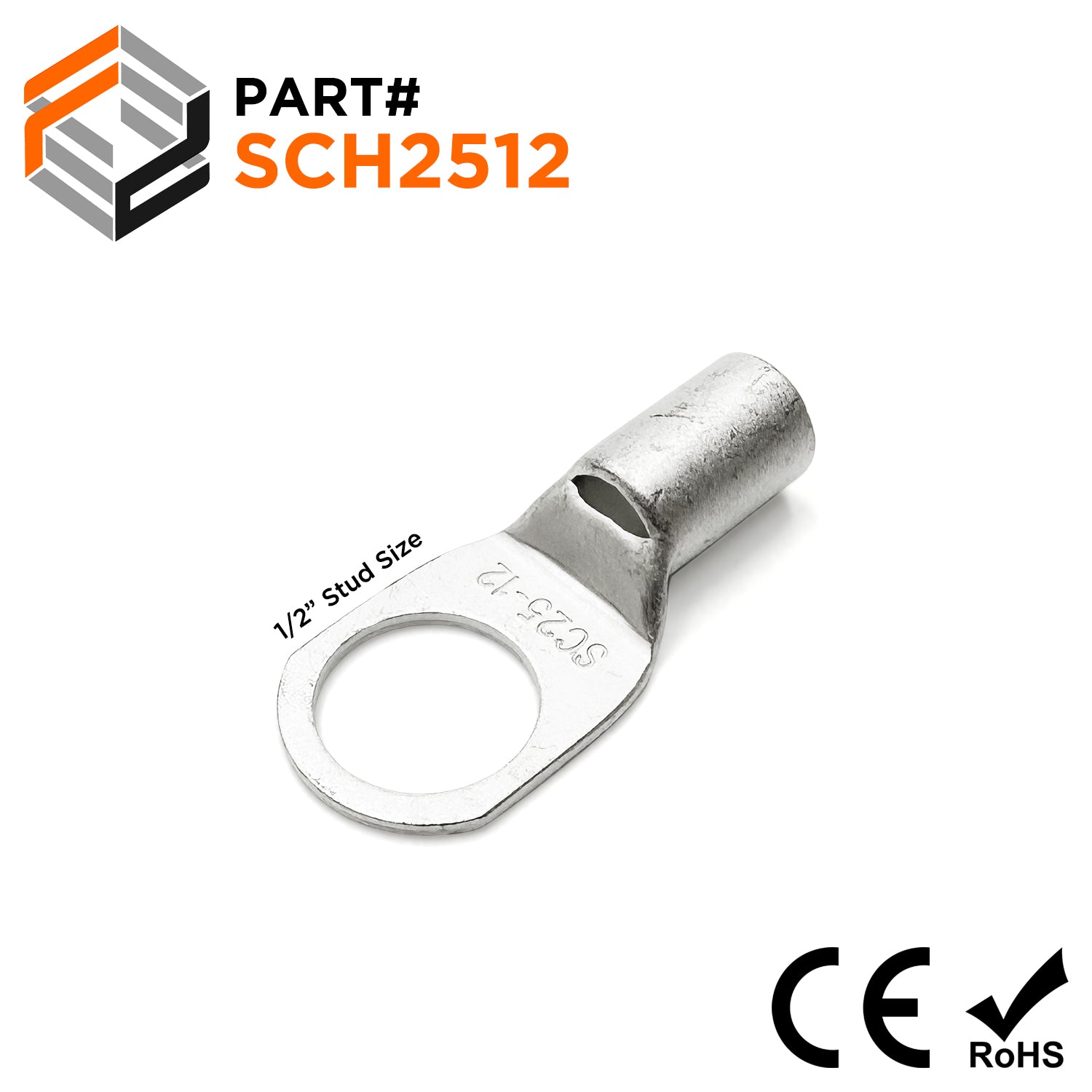

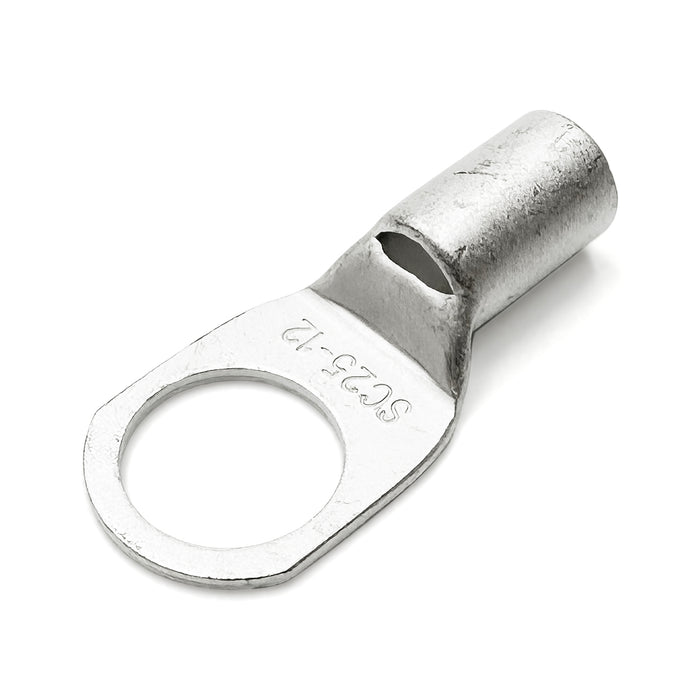

SCH2512 - 4 AWG Non Insulated Tubular Ring Lugs, 1/2" Stud - 25 Pieces
Original price
$13.63
-
Original price
$13.63
Original price
$13.63
$13.63
-
$13.63
Current price
$13.63
SKU SCH2512
Quantity: 25 Pieces
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 4 AWG |
| Stud Size: | 1/2" |
| F: | 13mm (0.51") |
| W: | 15.5mm (0.61") |
| L: | 35.7mm (1.40") |
| D: | 7.9mm (0.31") |
| D1: | 7.2mm (0.28") |
| D2: | 12.8mm (0.50") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 75°C |
| Voltage Rating: | 600 Volts |
| AMP Rating: | 85 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
