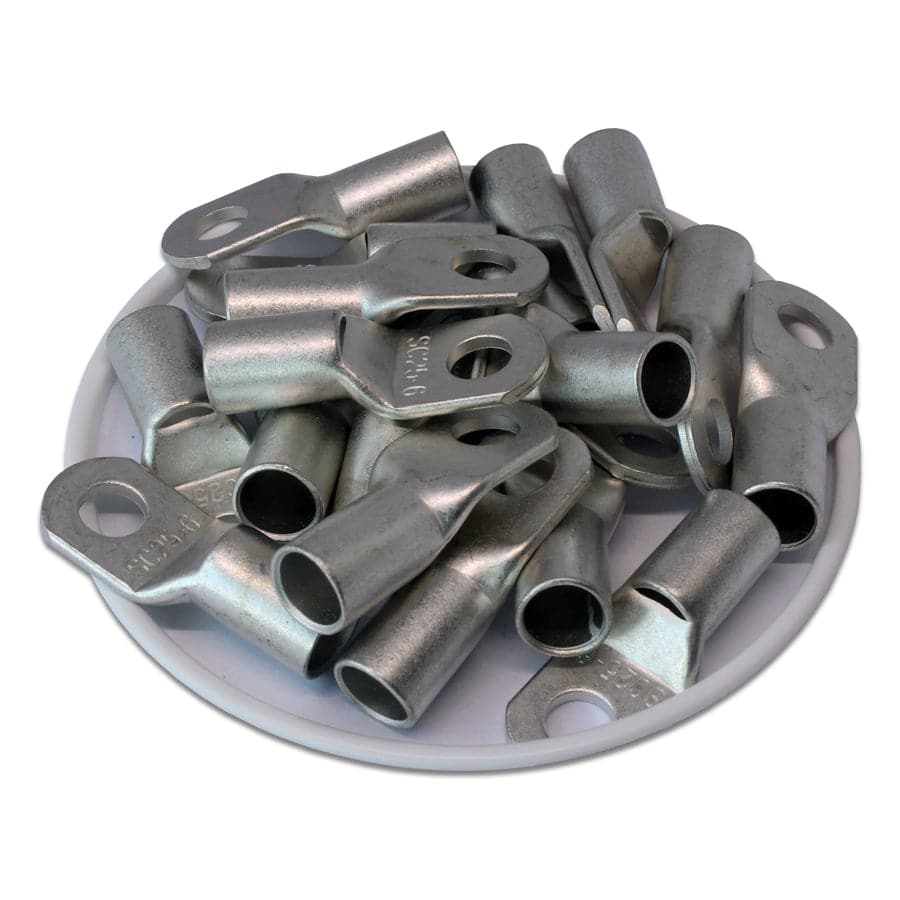

SCH256 - Non Insulated Tubular Ring Lugs - 4 AWG

Original price $10.12 - Original price $10.12
Original price
$10.12
$10.12 - $10.12
Current price $10.12
SKU SCH256
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces
true

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4 AWG
F: 13.5mm (0.53")
W: 13.1mm (0.62")
L: 32.5mm (1.28")
D: 9.0mm (0.35")
D1: 7.2mm (0.28")
D2: 6.5mm (0.26")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 1/4"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 85 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:
