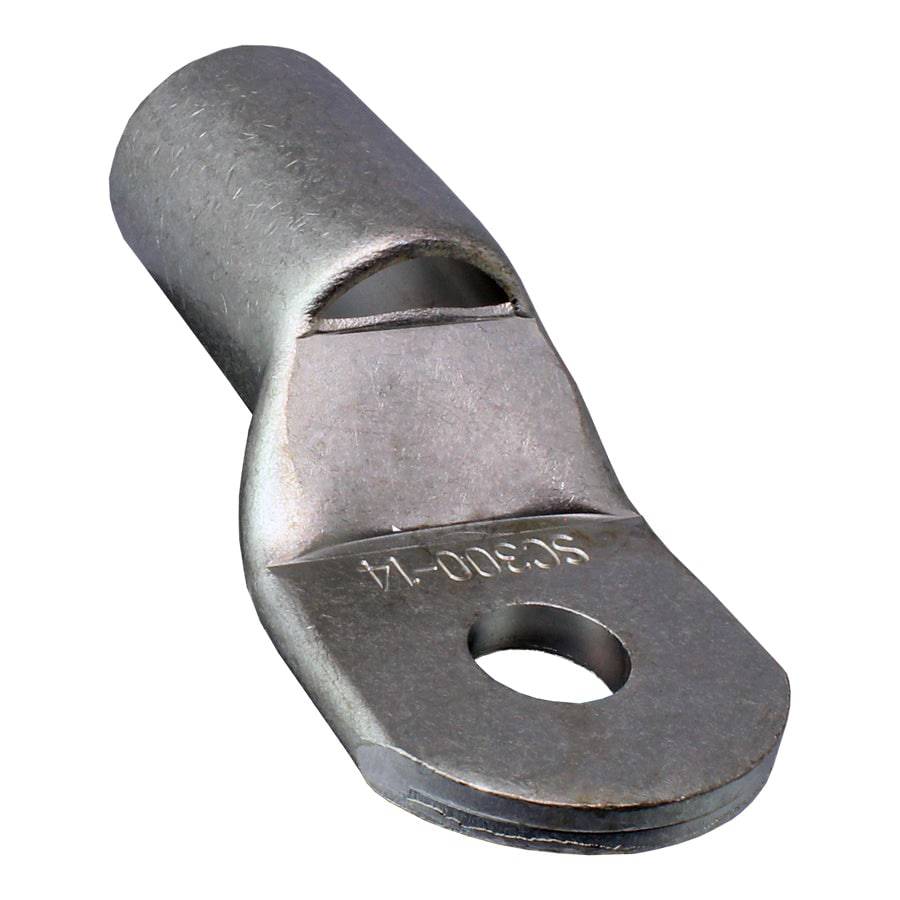

SCH30014 - Non Insulated Tubular Ring Lugs - 592MCM
Original price
$13.32
-
Original price
$13.32
Original price
$13.32
$13.32
-
$13.32
Current price
$13.32
SKU SCH30014
Availability:
in stock, ready to be shipped
| PRODUCT DESCRIPTION | |||
|
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones. |
|||
| DIMENSIONS AND FEATURES | |||
| Item Size | 592MCM | TERMINAL MATERIAL: | Tin-Plated Copper |
| F | 43.5mm (1.71") | INSULATION MATERIAL: | None |
| W | 43.7mm (1.72") | STUD SIZE: | 9/16 Stud |
| L | 100mm (3.94") | TEMPERATURE RATING: | 75° C |
| D | 30mm (1.18") | VOLTAGE RATING: | 600 Volts |
| D1 | 24mm (.94") | MAX ELECTRICAL CURRENT: | 380 AMP |
| D2 | 15mm (.59") | UL RECOGNIZED: | NO |
| CE CERTIFIED: | YES | ||
| ROHS COMPLIANT: | YES | ||
|
TECHNICAL DRAWING |
|||
 |
|||
