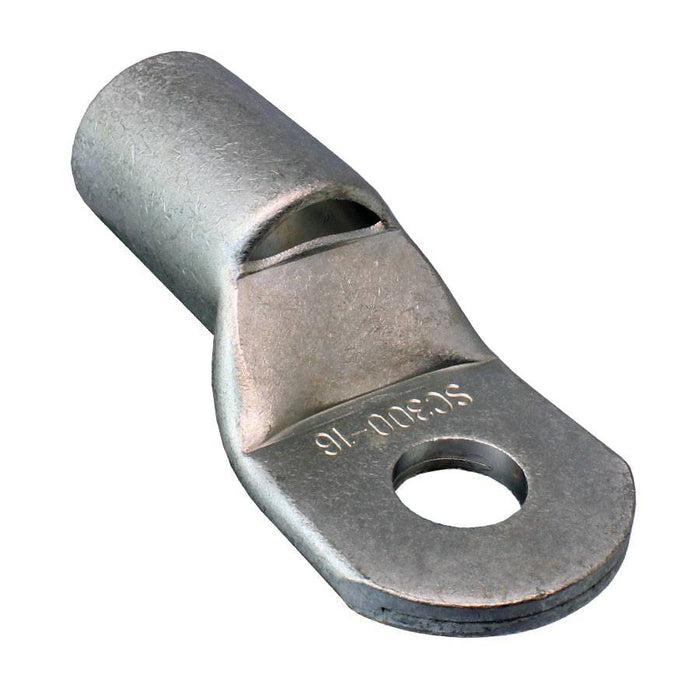

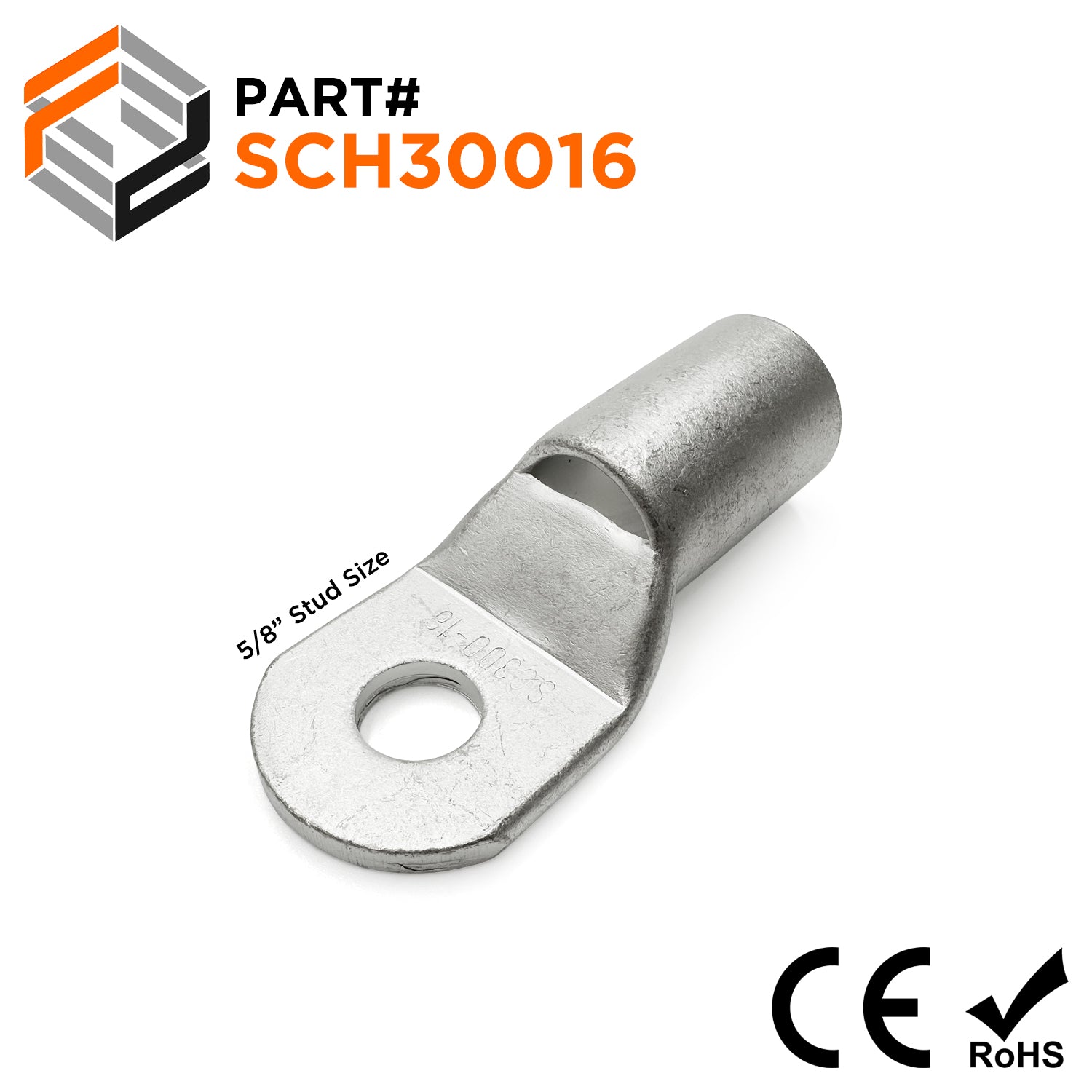

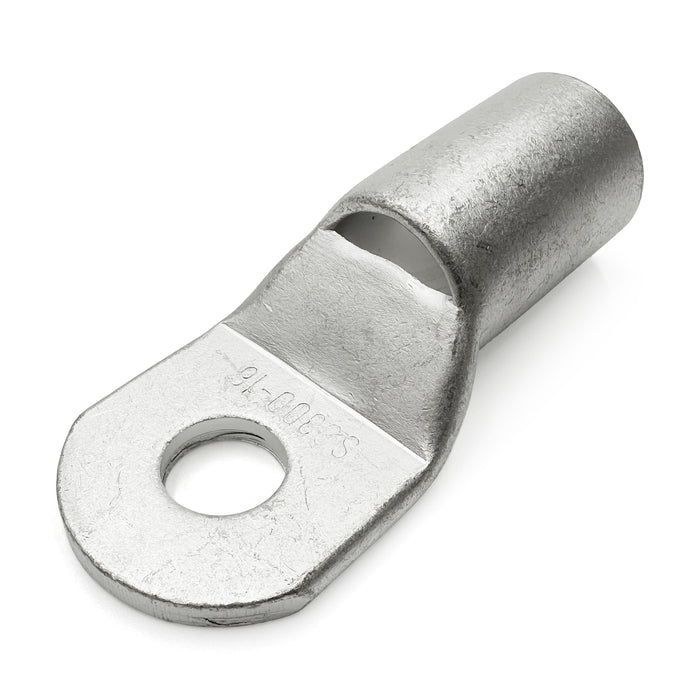

SCH30016 - Non Insulated Tubular Ring Lugs - 592MCM
Original price
$13.32
-
Original price
$13.32
Original price
$13.32
$13.32
-
$13.32
Current price
$13.32
SKU SCH30016
Quantity: 1 Piece
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 592MCM |
| F: | 43.5mm (1.71") |
| W: | 43.7mm (1.95") |
| L: | 100.0mm (3.94") |
| D: | 30.0mm (1.18") |
| D1: | 24.0mm (0.94") |
| D2: | 17.0mm (0.67") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 5/8" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 380 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
