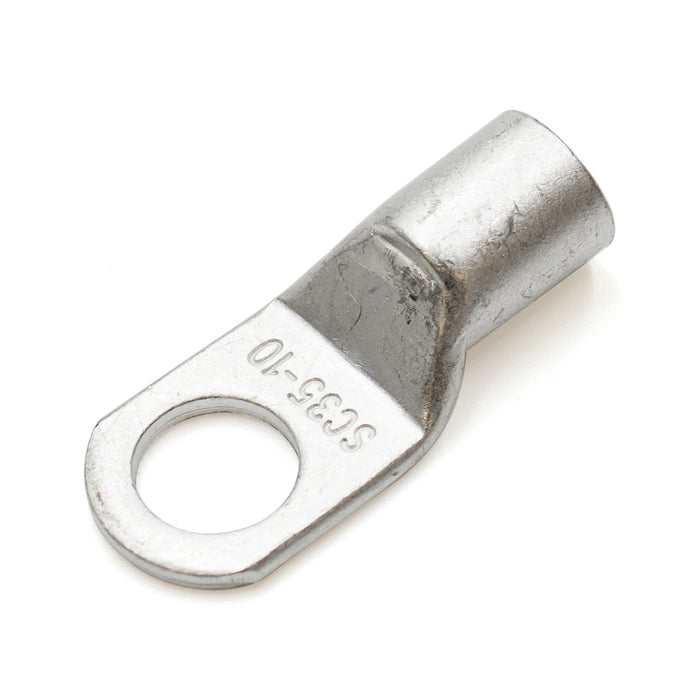

SCH3510 - Non Insulated Tubular Ring Lugs - 2 AWG

SCH3510 - Non Insulated Tubular Ring Lugs - 2 AWG

$15.69 - $15.69
$15.69
$15.69 - $15.69
$15.69
SKU SCH3510

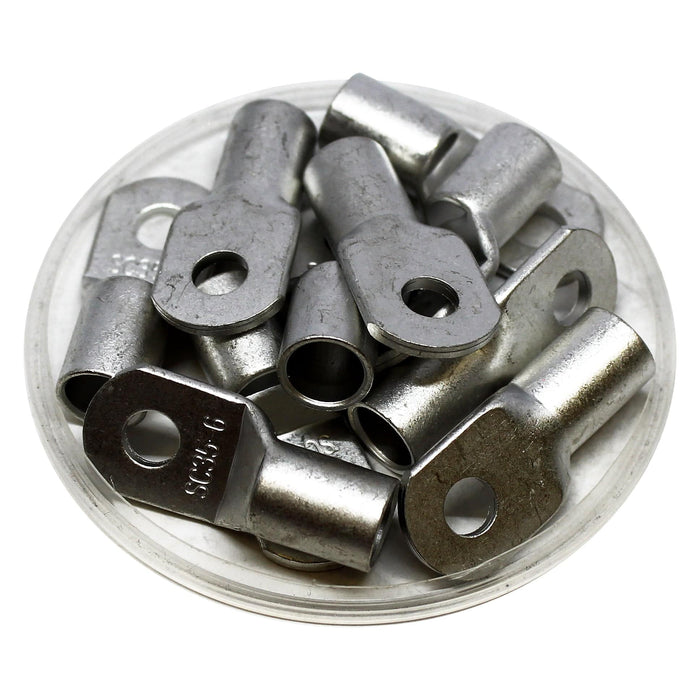

Quantity: 25 Pieces

Availability:
in stock, ready to be shipped
true

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
F: 12.4mm (0.488")
W: 16.0mm (0.630")
L: 37.7mm (1.48")
D: 10.8mm (0.425")
D1: 8.4mm (0.330")
D2: 10.5mm (0.413")
Terminal Material: Tin-Plated Copper

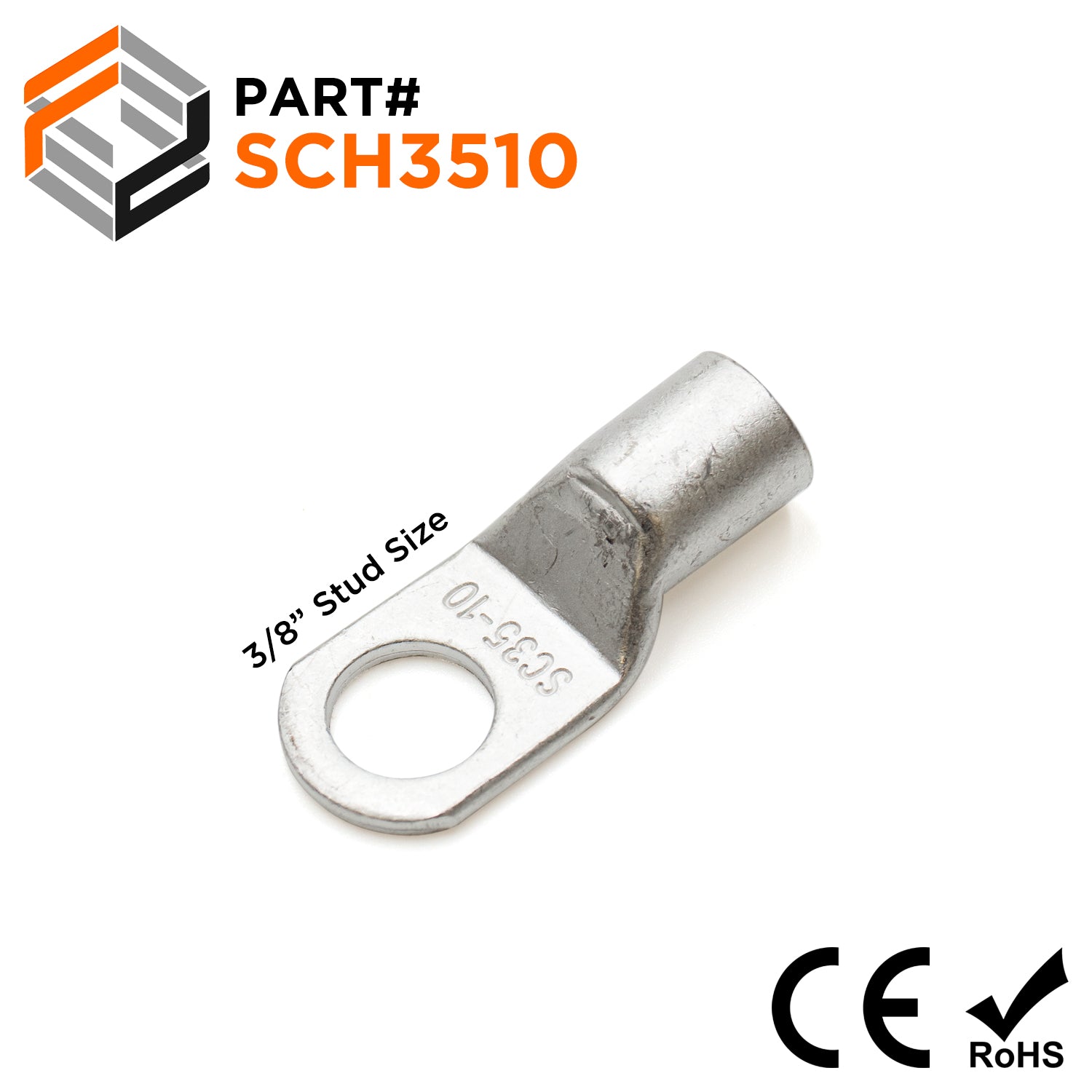

Stud Size: 3/8"
Temperature Rating: 75°C
Maximum Amp Ordering: 170 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
