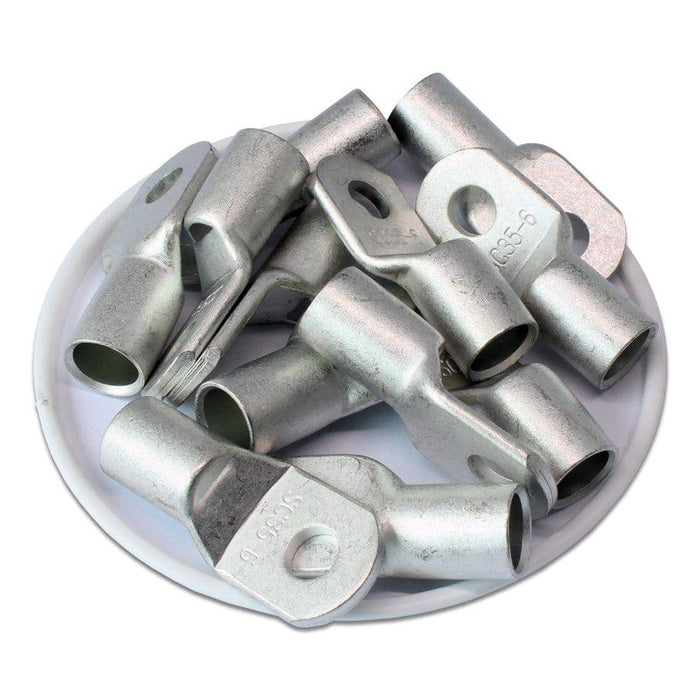

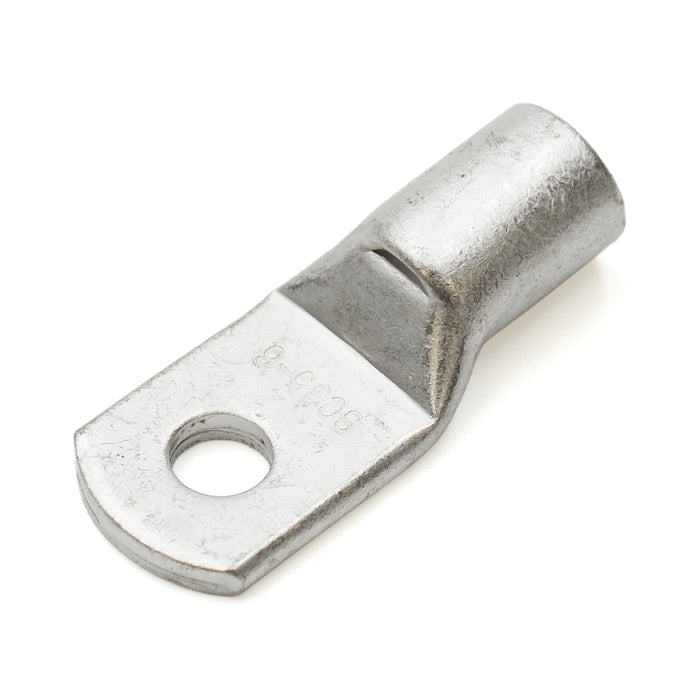

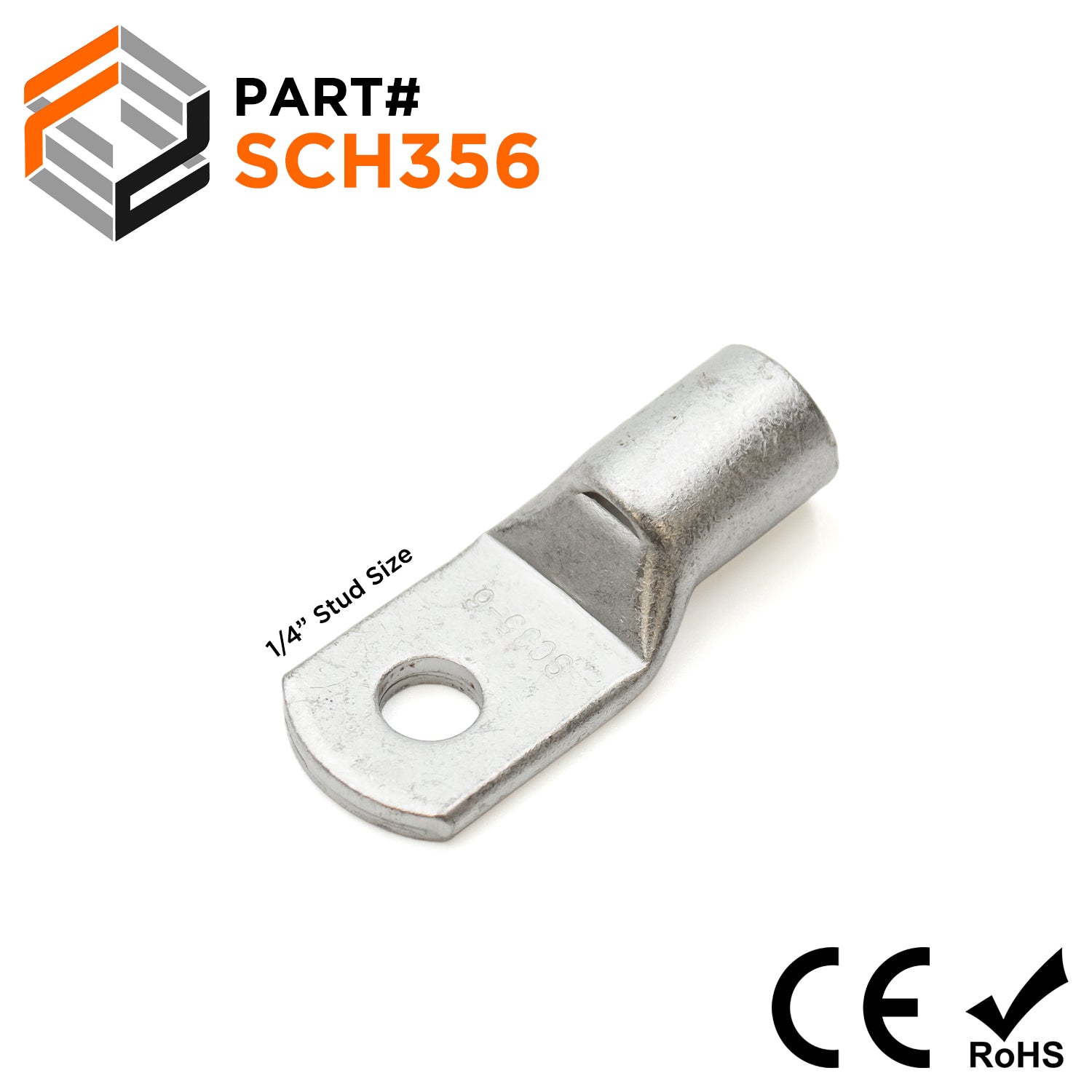

SCH356 - Non Insulated Tubular Ring Lugs - 2 AWG - 1/4" Stud

Original price $15.69 - Original price $15.69
Original price
$15.69
$15.69 - $15.69
Current price $15.69
SKU SCH356
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces
true

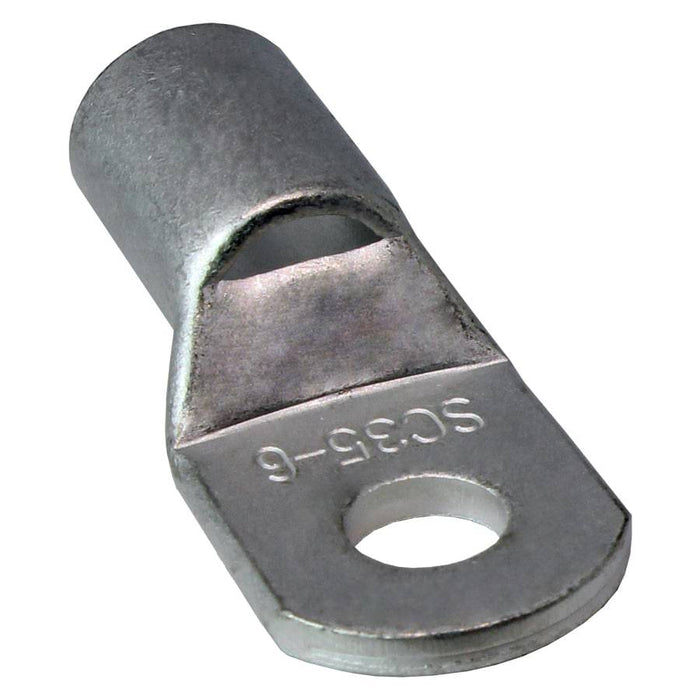

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Stud Size: 1/4"
F: 14.5mm (0.57")
W: 15.8mm (0.62")
L: 36.0mm (1.42")
D: 10.8mm (0.43")
D1: 8.2mm (0.32")
D2: 6.5mm (0.26")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 1/4"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 115 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
