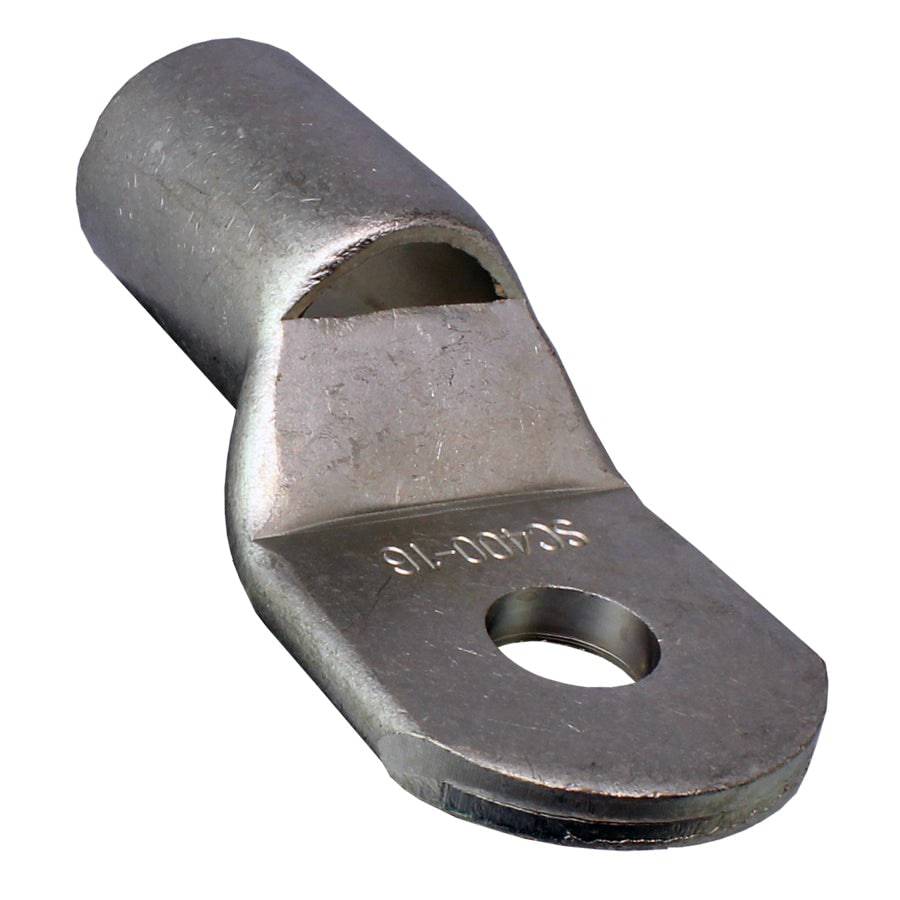

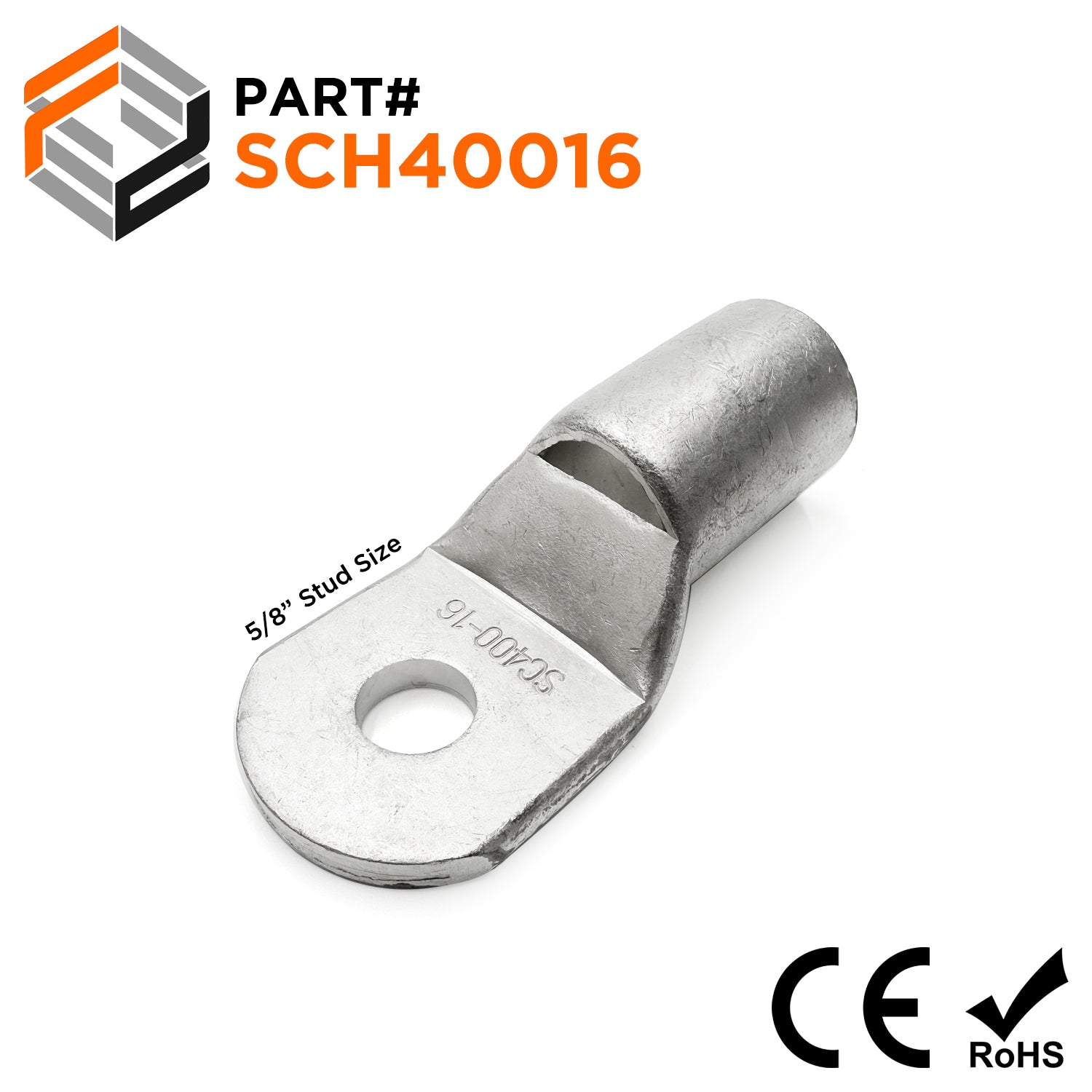

SCH40016 - Non Insulated Tubular Ring Lugs - 789MCM

Original price $18.52 - Original price $18.52
Original price
$18.52
$18.52 - $18.52
Current price $18.52
SKU SCH40016
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 789MCM
F: 46.0mm (1.81")
W: 49.5mm (1.95")
L: 110.0mm (4.33")
D: 34.0mm (1.34")
D1: 27.0mm (1.06")
D2: 17.0mm (0.67")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 5/8"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 475 Amps
UL Recogonized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
