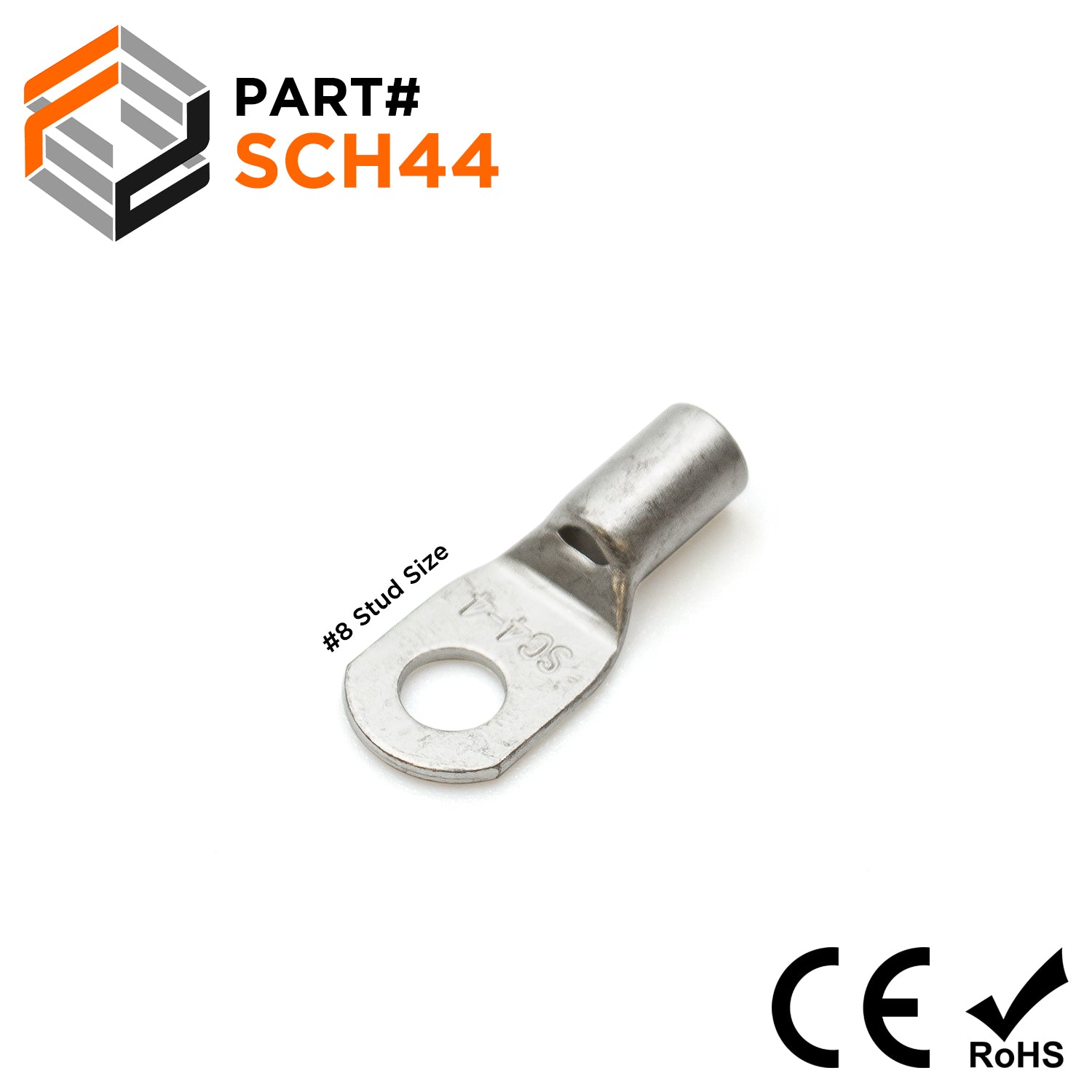

SCH44 - Non Insulated Tubular Ring Lugs - 12 AWG - 100 Pieces
Original price
$21.38
-
Original price
$21.38
Original price
$21.38
$21.38
-
$21.38
Current price
$21.38
SKU SCH44
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped

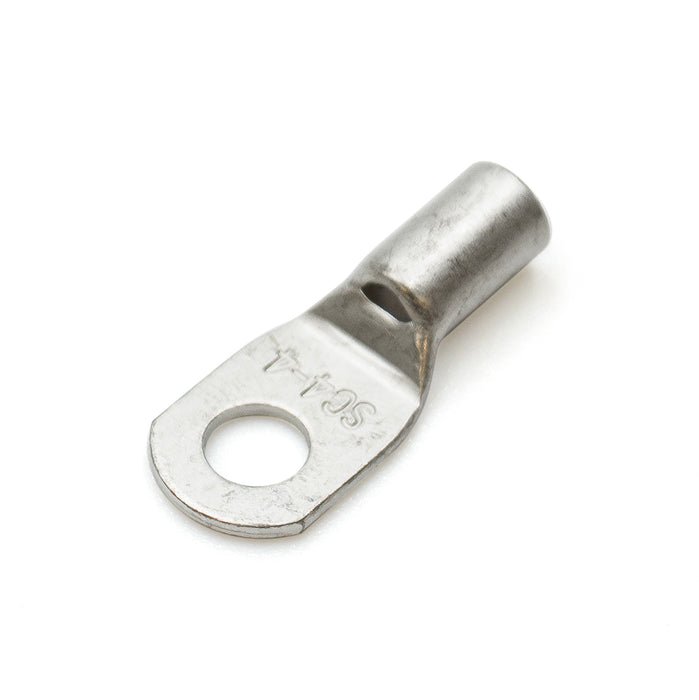

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 12 AWG |
| F: | 7.5mm (0.30") |
| W: | 8.0mm (0.31") |
| L: | 19.5mm (0.77") |
| D: | 4.5mm (0.18") |
| D1: | 3.2mm (0.13") |
| D2: | 4.3mm (0.17") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | #8 |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 20 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
