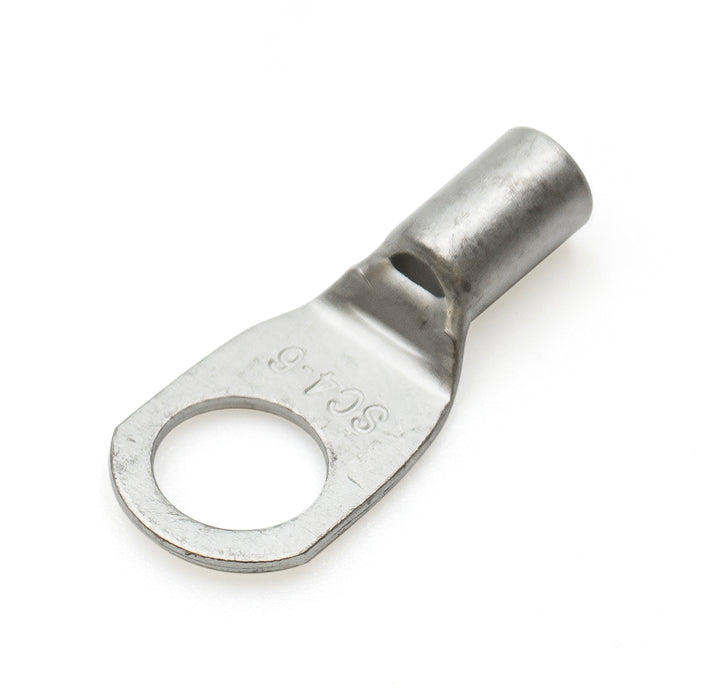

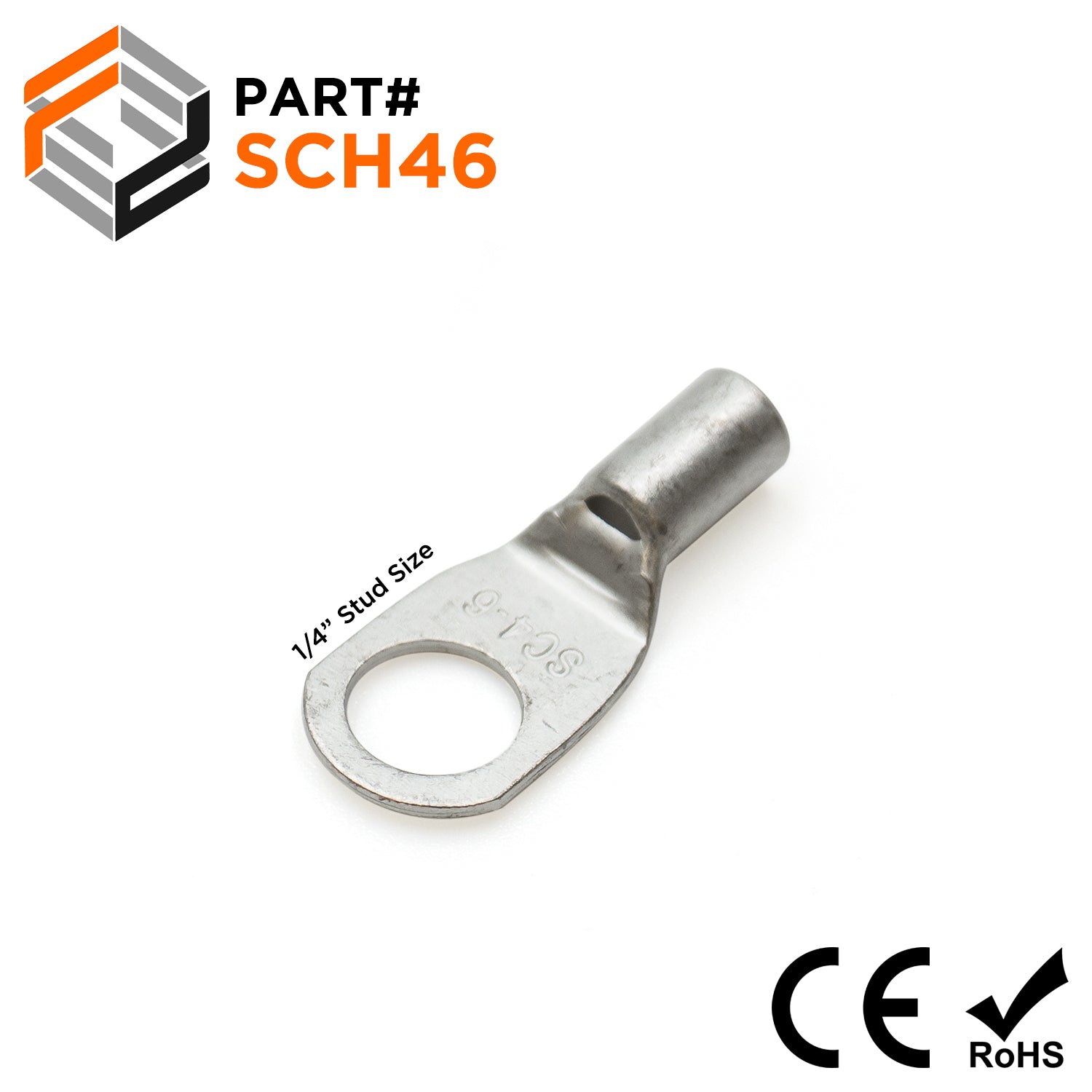

SCH46 - Non Insulated Tubular Ring Lugs - 12 AWG

Original price $25.44 - Original price $25.44
Original price
$25.44
$25.44 - $25.44
Current price $25.44
SKU SCH46
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 12 AWG
F: 7.5mm (0.30")
W: 9.2mm (0.36")
L: 22.0mm (0.87")
D: 4.5mm (0.18")
D1: 3.2mm (0.13")
D2: 6.5mm (0.26")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 1/4"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 20 Amps
UL Recogonized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
