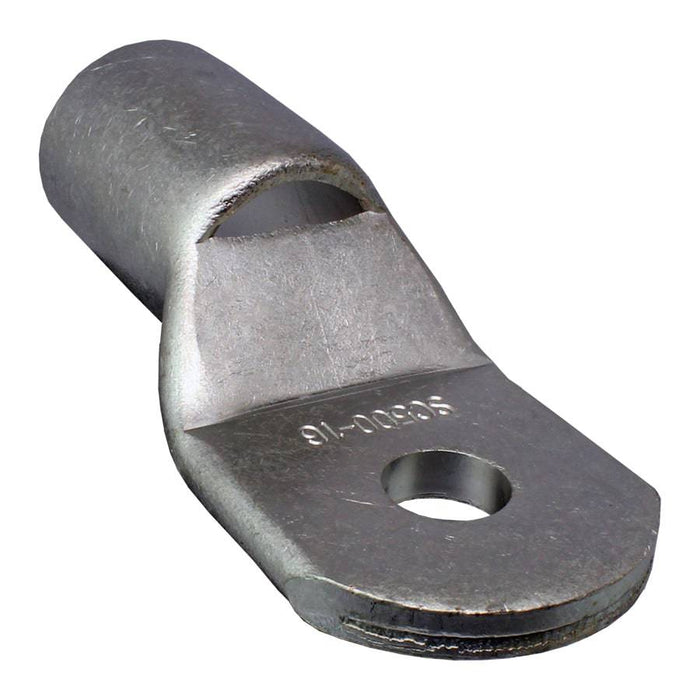

SCH50016 - Non Insulated Tubular Ring Lugs - 986MCM

Original price $30.64 - Original price $30.64
Original price
$30.64
$30.64 - $30.64
Current price $30.64
SKU SCH50016
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 986MCM
F: 50.0mm (1.97")
W: 55.0mm (2.17")
L: 123.0mm (4.84")
D: 38.0mm (1.50")
D1: 30.0mm (1.18")
D2: 17.0mm (0.67")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 5/8"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 545 Amps
UL Recogonized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
