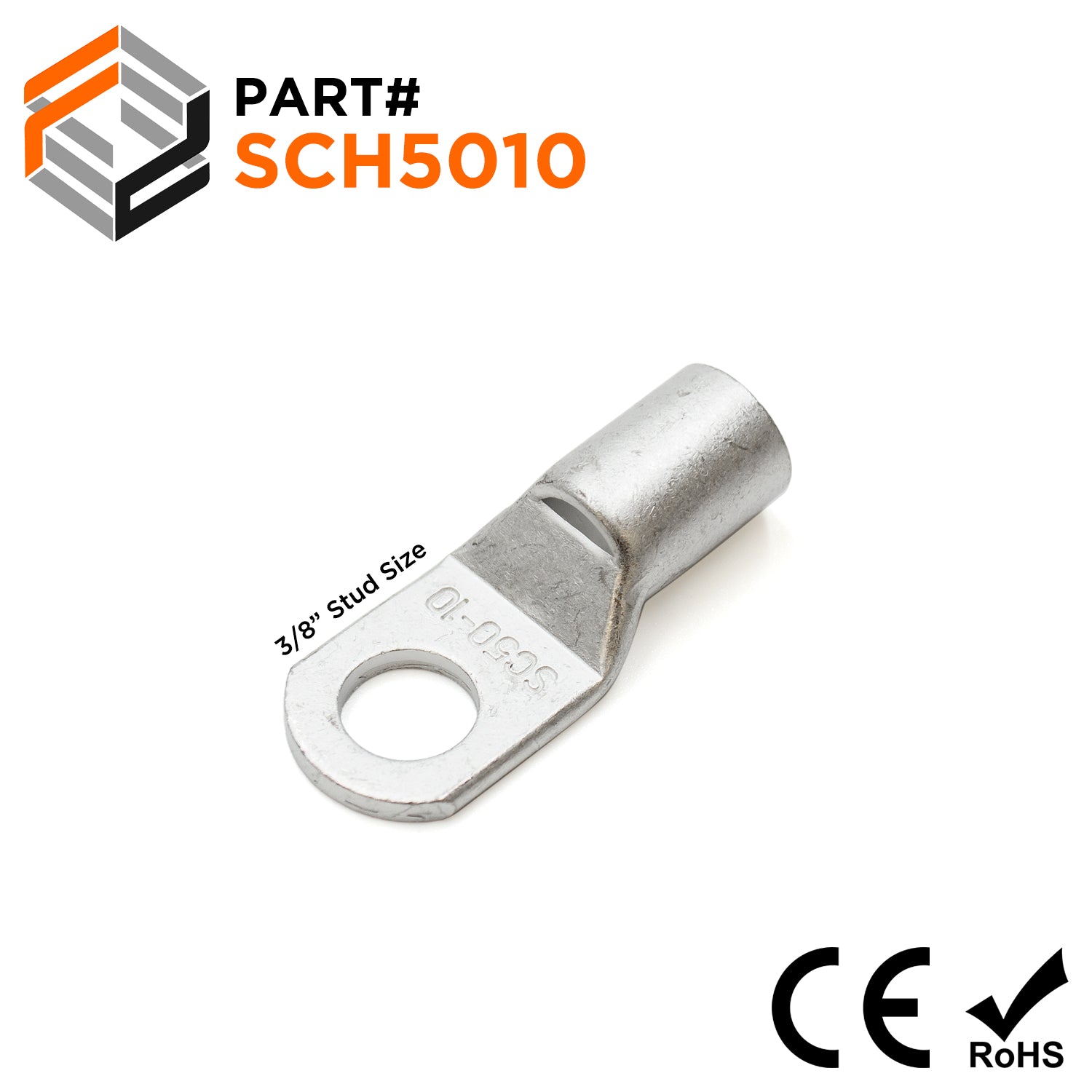

SCH5010 - Non Insulated Tubular Ring Lugs - 1AWG - 1/0AWG
Original price
$10.56
-
Original price
$10.56
Original price
$10.56
$10.56
-
$10.56
Current price
$10.56
SKU SCH5010
Availability:
in stock, ready to be shipped

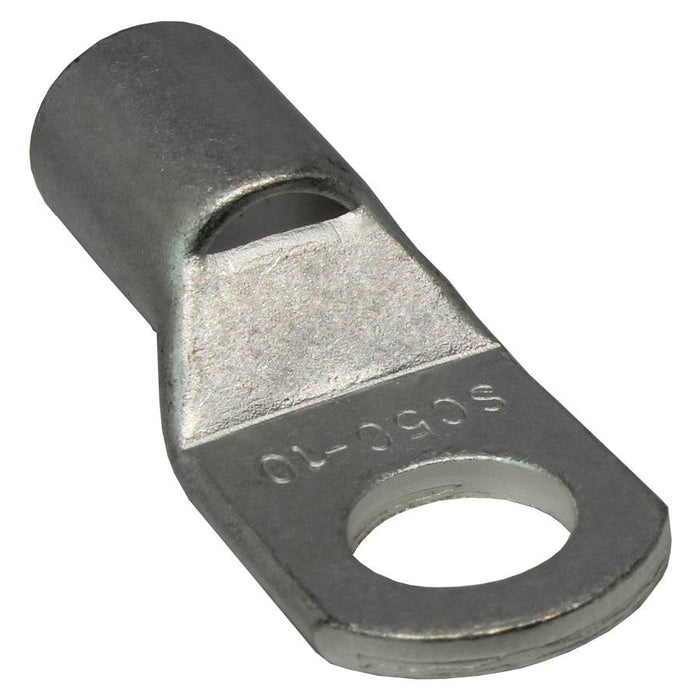

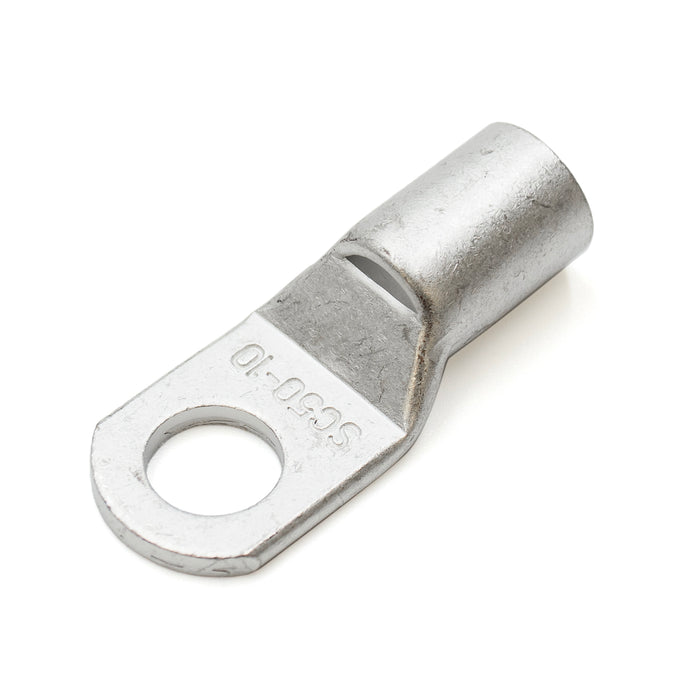

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1-1/0 AWG |
| F: | 17.0mm (0.67") |
| W: | 18.2mm (0.72") |
| L: | 44.0mm (1.73") |
| D: | 12.5mm (0.49") |
| D1: | 9.8mm (0.39") |
| D2: | 10.5mm (0.41") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 3/8" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 150 Amps |
| UL Recogonized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
