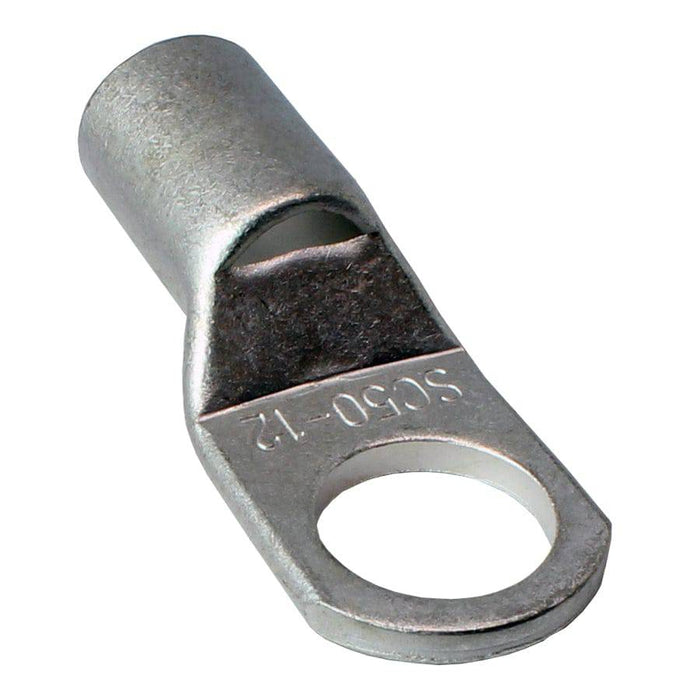

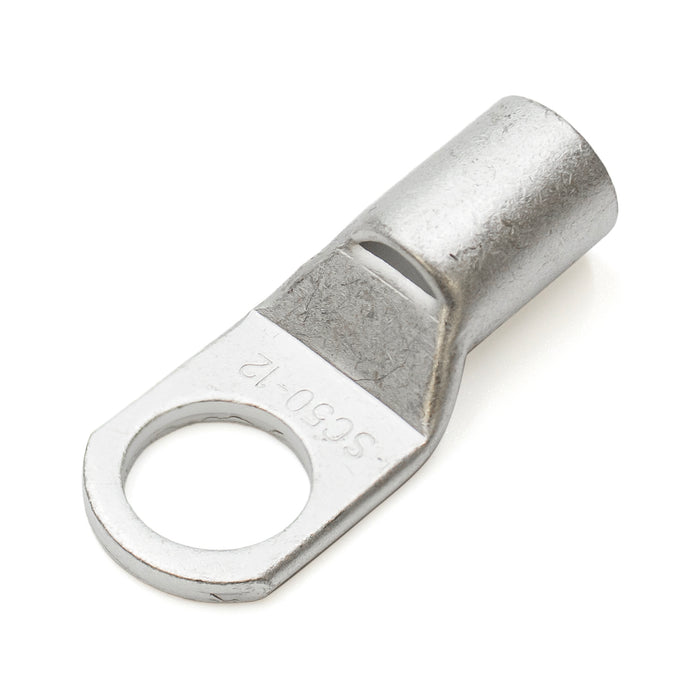

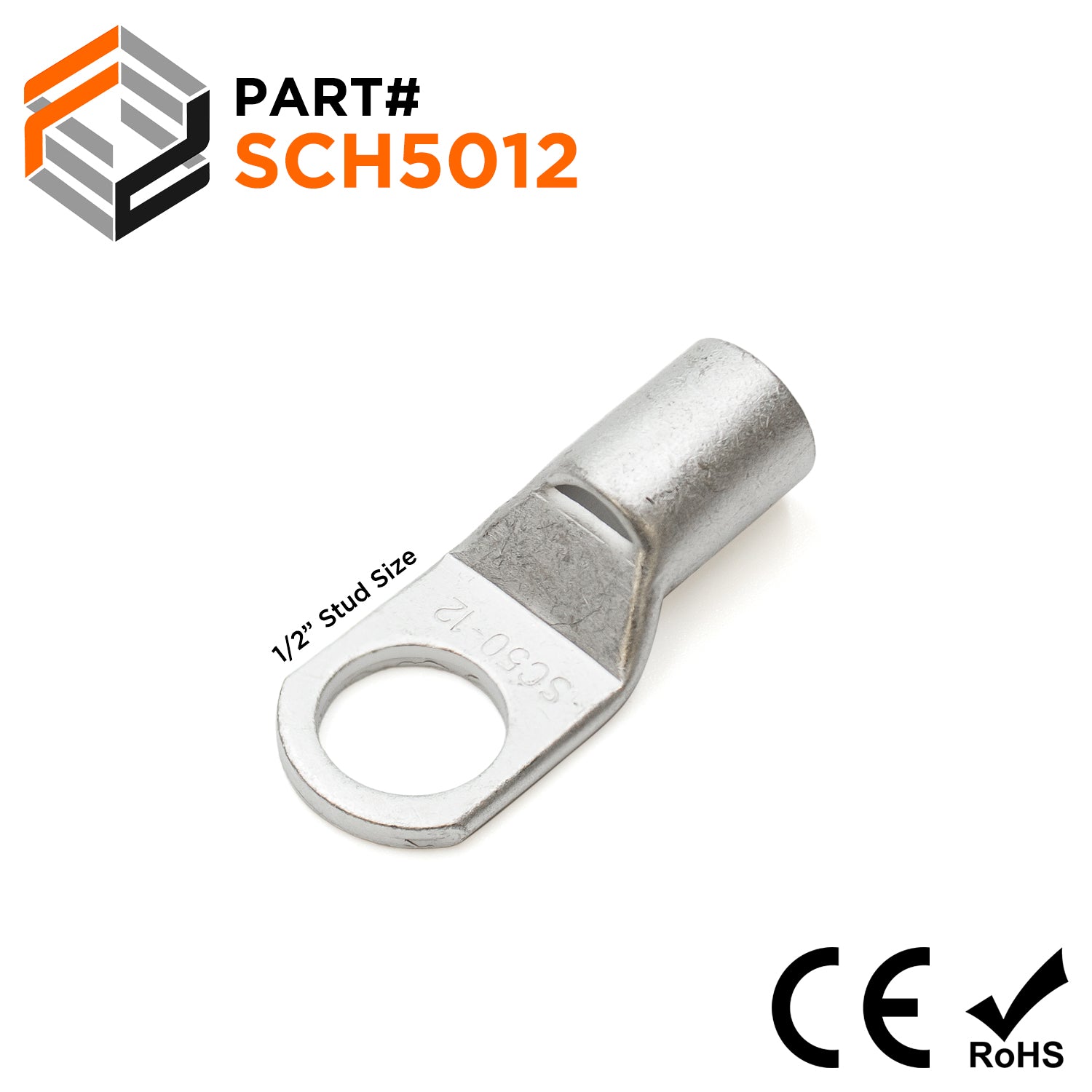

SCH5012 - Non Insulated Tubular Ring Lugs - 1AWG - 1/0 AWG
Original price
$10.56
-
Original price
$10.56
Original price
$10.56
$10.56
-
$10.56
Current price
$10.56
SKU SCH5012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Wire Size: | 1-1/0 AWG |
F: | 17.0mm (0.67") |
W: | 18.2mm (0.72") |
L: | 44.0mm (1.73") |
D: | 12.5mm (0.59") |
D1: | 9.8mm (0.39") |
D2: | 13.0mm (0.51") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | None |
Stud Size: | 1/2" |
Temperature Rating: | 75oC |
Voltage Rating: | 600 Volts |
Maximum Amp Ordering: | 150 Amps |
UL Recognized: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
