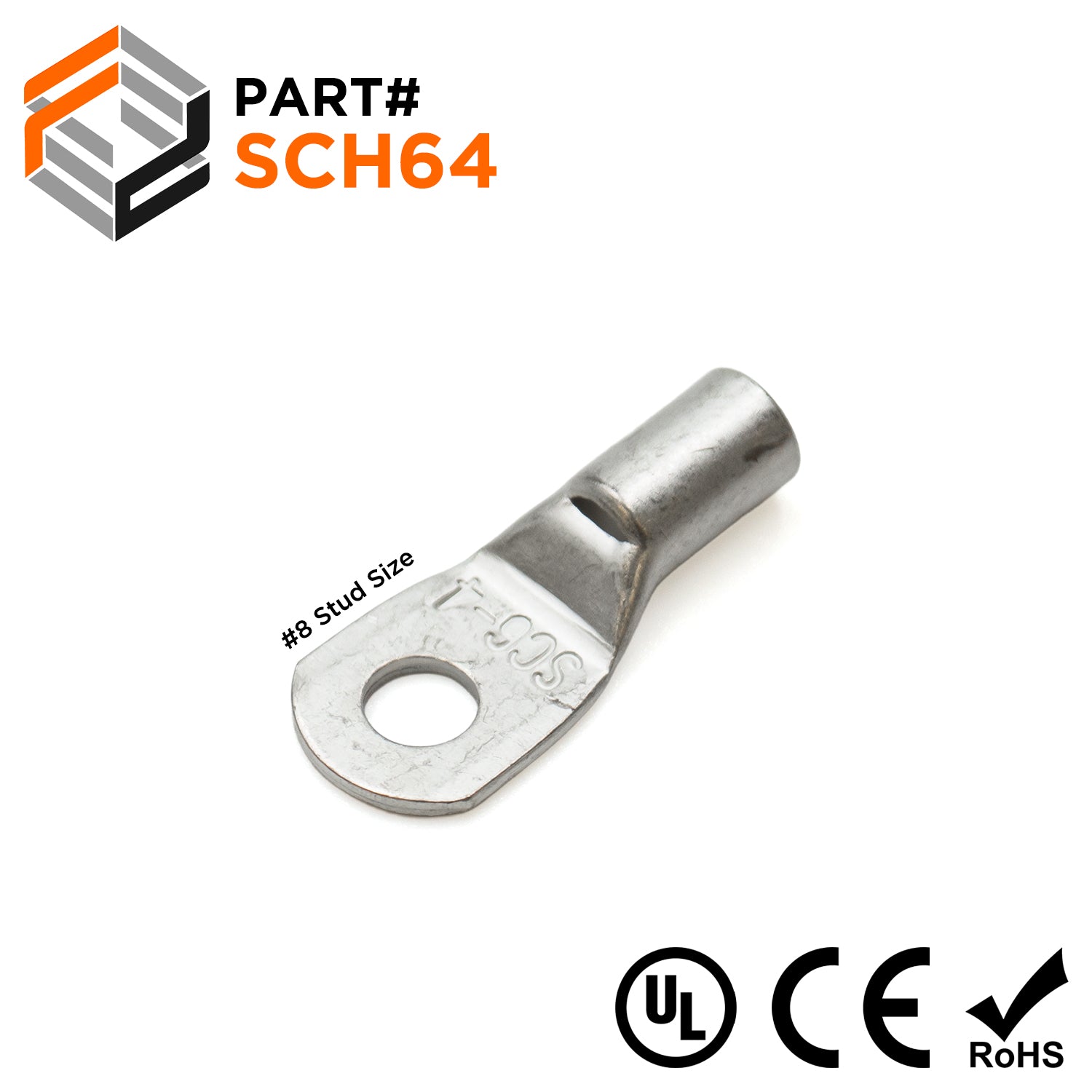

SCH64 - Non Insulated Tubular Ring Lugs - 10 AWG
Original price
$9.32
-
Original price
$9.32
Original price
$9.32
$9.32
-
$9.32
Current price
$9.32
SKU SCH64
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 10 AWG |
| F: | 8.0mm (0.31") |
| W: | 9.2mm (0.36") |
| L: | 22.0mm (0.87") |
| D: | 5.1mm (0.20") |
| D1: | 3.7mm (0.15") |
| D2: | 4.3mm (0.17") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | #8 |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 30 Amps |
| UL Recogonized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
