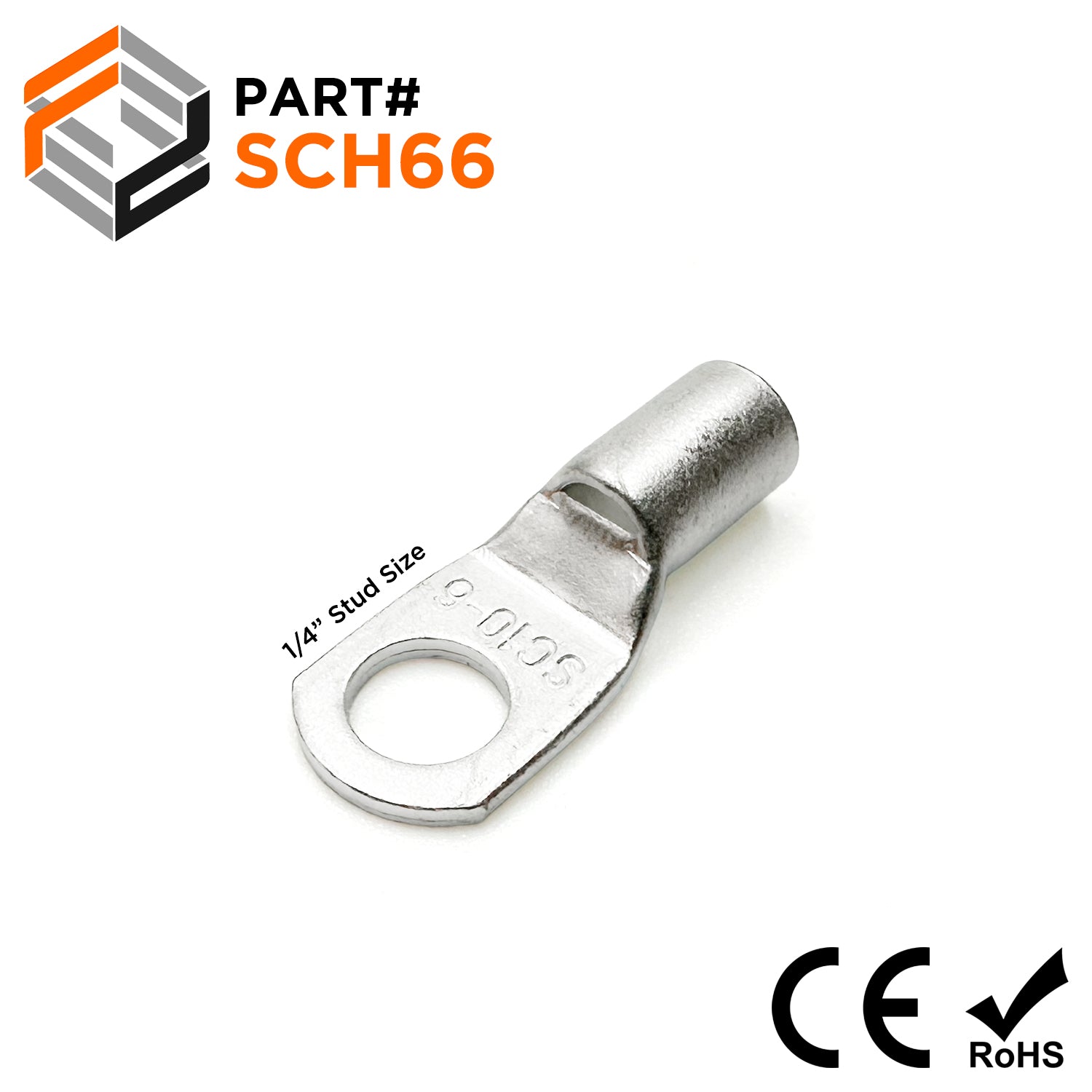

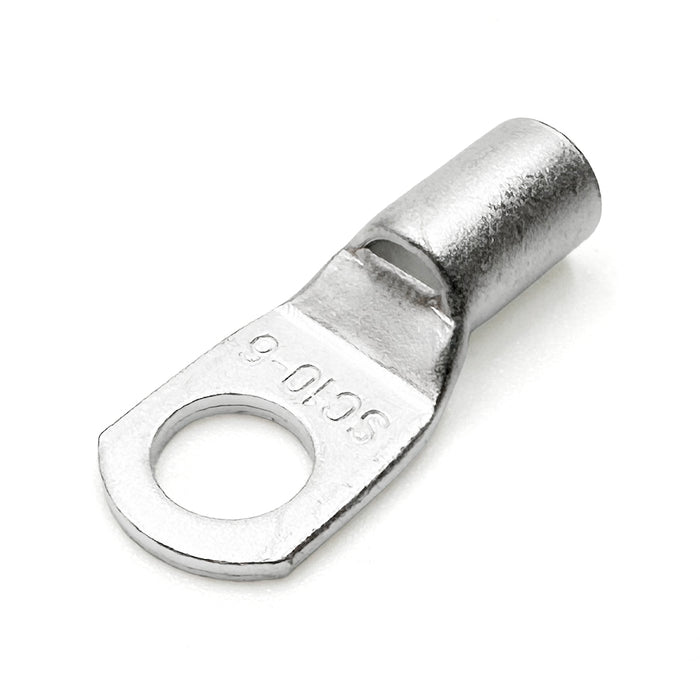

SCH66 - Non Insulated Tubular Ring Lugs - 10 AWG

Original price $13.40 - Original price $13.40
Original price
$13.40
$13.40 - $13.40
Current price $13.40
SKU SCH66
Availability:
in stock, ready to be shipped
Piece Quantity: 50 Pieces
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 10 AWG
F: 8.0mm (0.31")
W: 9.8mm (0.39")
L: 23.0mm (0.91")
D: 5.1mm (0.20")
D1: 3.7mm (0.15")
D2: 6.5mm (0.26")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 1/4"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 30 Amps
UL Recogonized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
