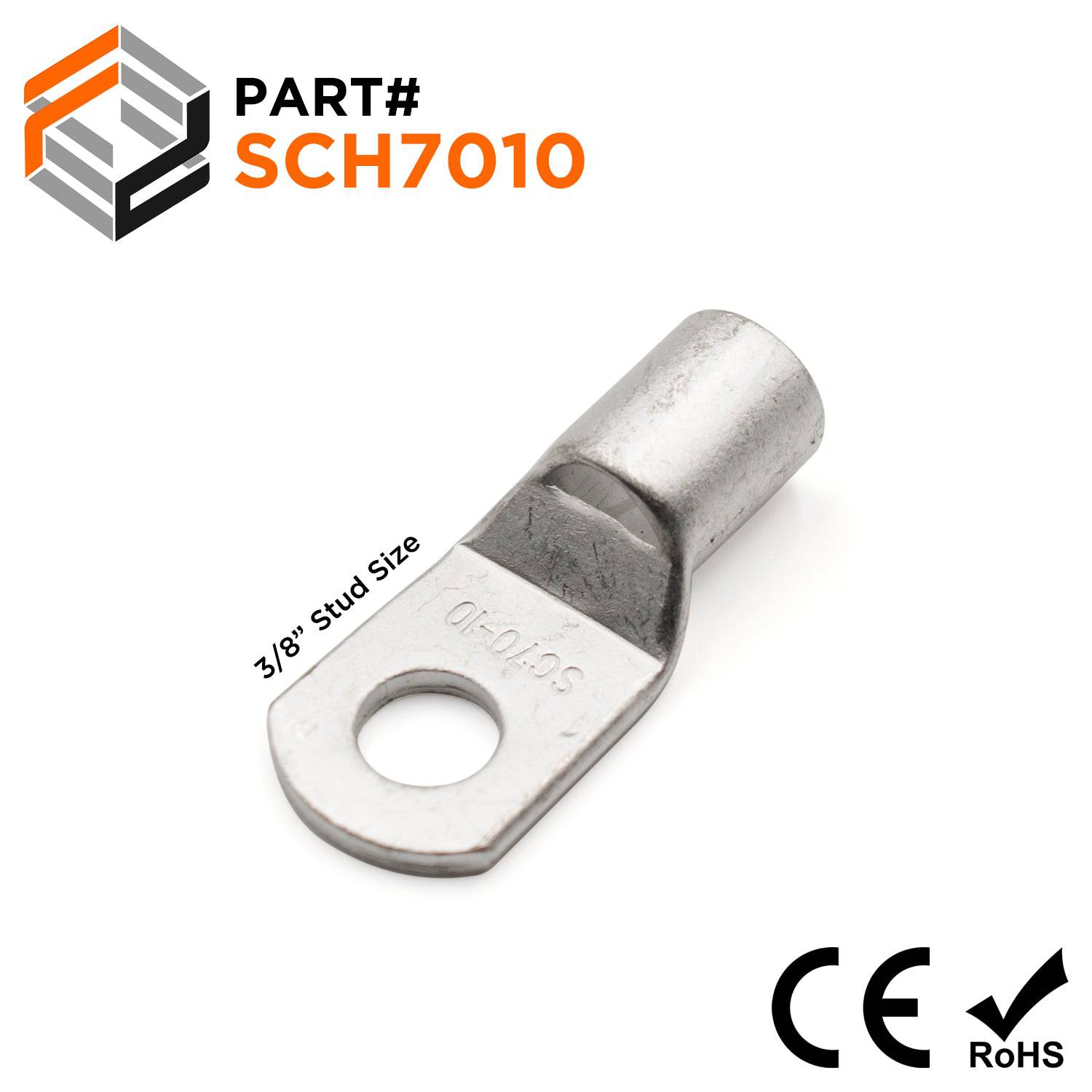

SCH7010 - Non Insulated Tubular Ring Lugs - 2/0 AWG

Original price $14.81 - Original price $14.81
Original price
$14.81
$14.81 - $14.81
Current price $14.81
SKU SCH7010
Availability:
in stock, ready to be shipped
Piece Quantity: 10 Pieces
true

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2/0 AWG
F: 19.5mm (0.77")
W: 21.0mm (0.83")
L: 50.0mm (1.97")
D: 14.5mm (0.57")
D1: 11.5mm (0.45")
D2: 10.5mm (0.41")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 3/8"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 175 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:
