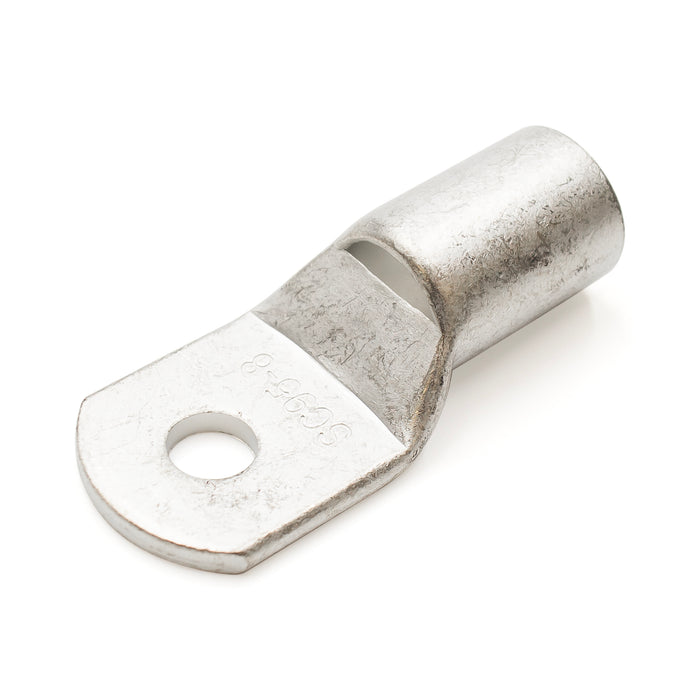

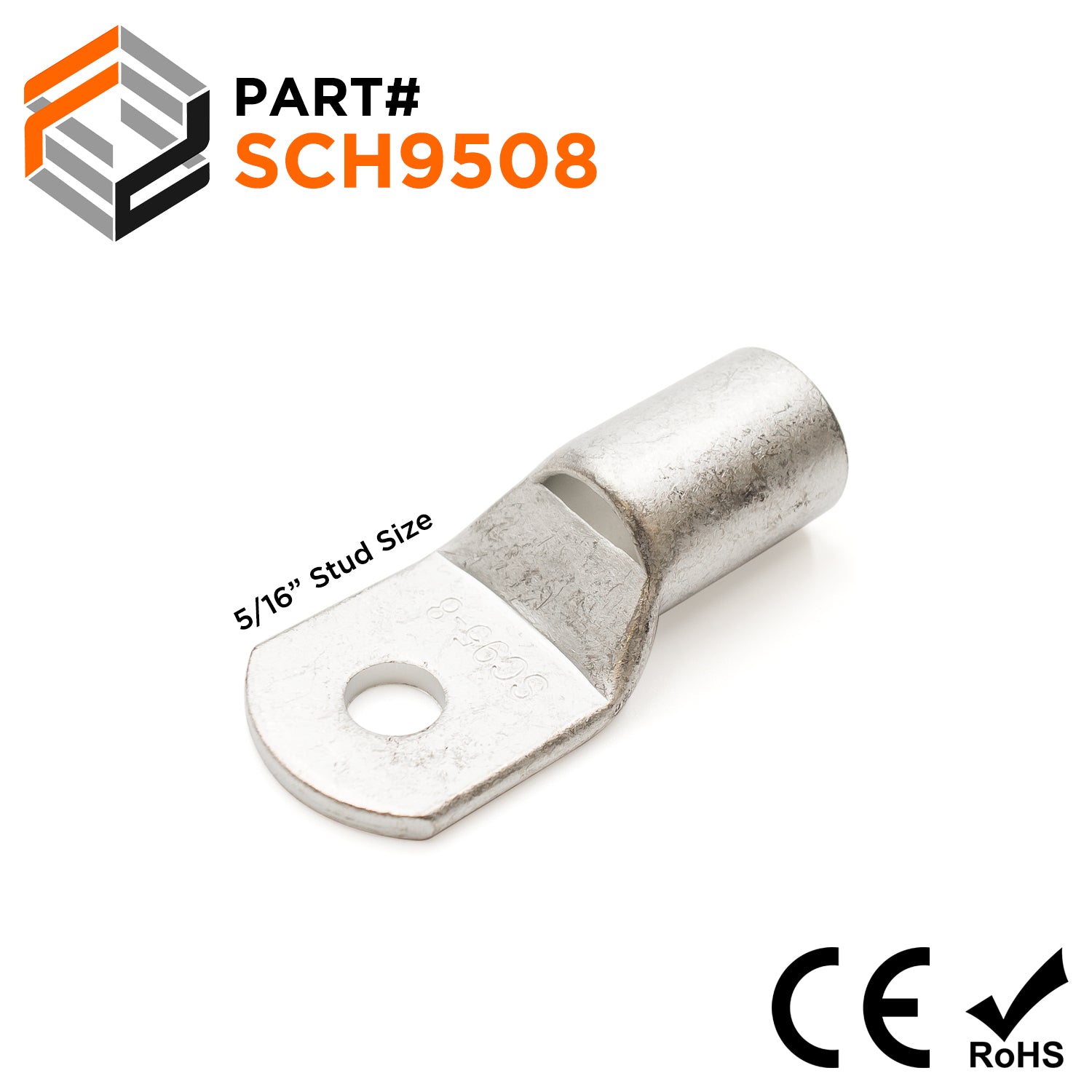

SCH9508 - Non Insulated Tubular Ring Lugs, 3/0 AWG, 5/16" Stud, 10 Pieces
Original price
$27.00
-
Original price
$27.00
Original price
$27.00
$27.00
-
$27.00
Current price
$27.00
SKU SCH9508
Quantity: 10 Pieces
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| Stud Size: | 5/16" Stud |
| F: | 23.5mm (0.93") |
| W: | 24.8mm (0.98") |
| L: | 57mm (2.24") |
| D: | 17.0mm (0.67") |
| D1: | 13.7mm (0.54") |
| D2: | 8.2mm (0.32") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 75°C |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 200 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
