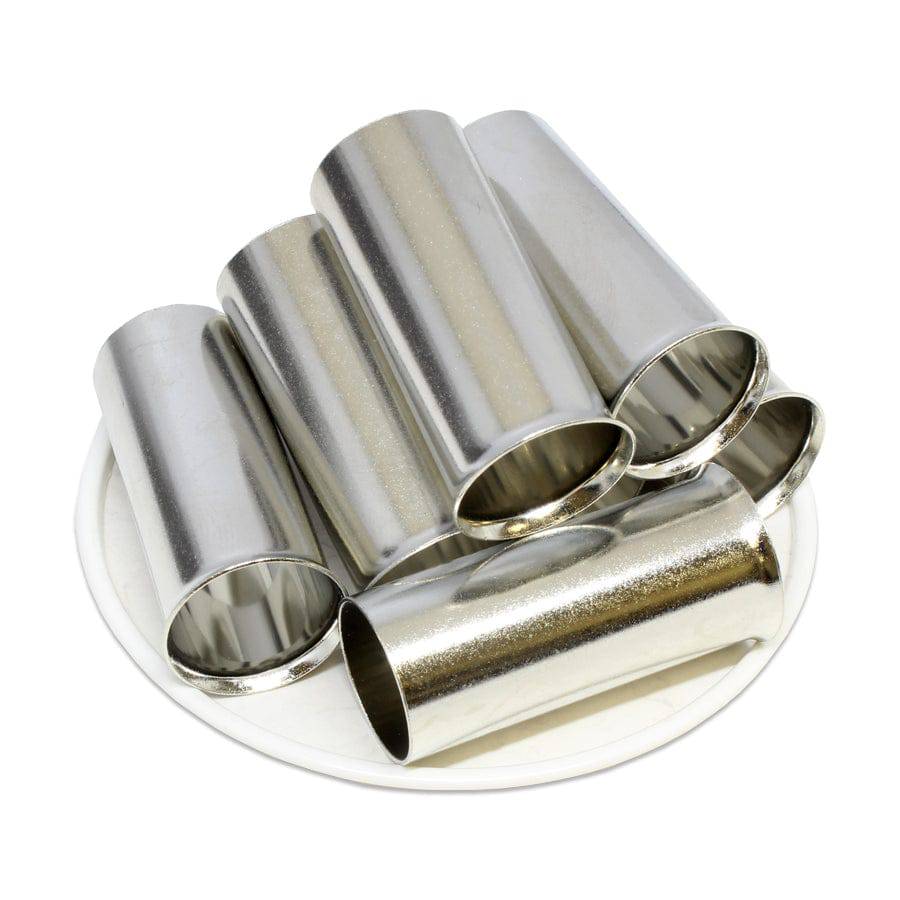

SF1350040 - 250MCM/DLO262.6 (40mm Pin) Non Insulated Ferrules

Original price $41.92 - Original price $41.92
Original price
$41.92
$41.92 - $41.92
Current price $41.92
SKU SF1350040
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 250MCM
L1: 40mm (1.57")
D: 17.1mm (0.67")
D1: 16.1mm (0.63")
D2: 18.6mm (0.73")
Material: Tin Plated Copper
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: Up to 2000V
Max Electrical Current: 405A

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
