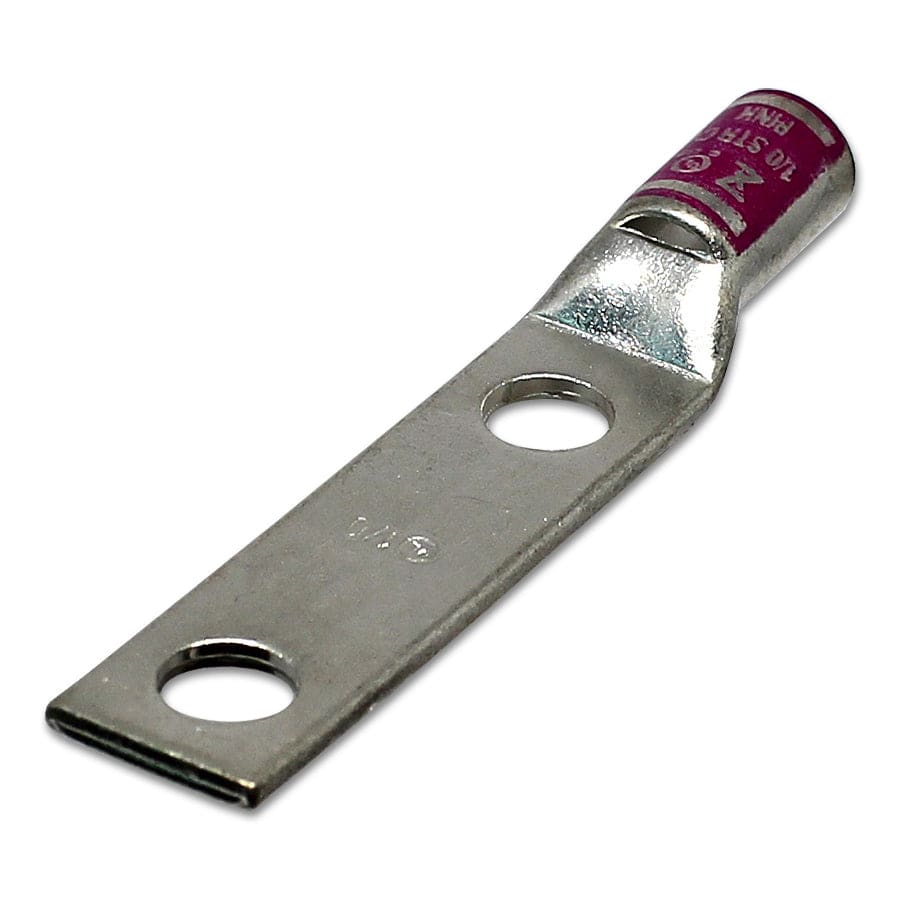

ST10014 - 1/0 AWG Compression Lug - 1/4" Stud Size

Original price $2.27 - Original price $2.27
Original price
$2.27
$2.27 - $2.27
Current price $2.27
SKU ST10014
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1/0 AWG
Color: Pink
L: 60.9mm (2.40")
L1: 34.3mm (1.35")
L2: 15.8mm (0.62")
D: 18.4mm (0.72")
D1: 12.9mm (0.51")
D2: 10.1mm (0.40")
B: 20.3mm (0.80")
E: 7.1mm (0.28")
F: 2.7mm (0.10")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 230A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
