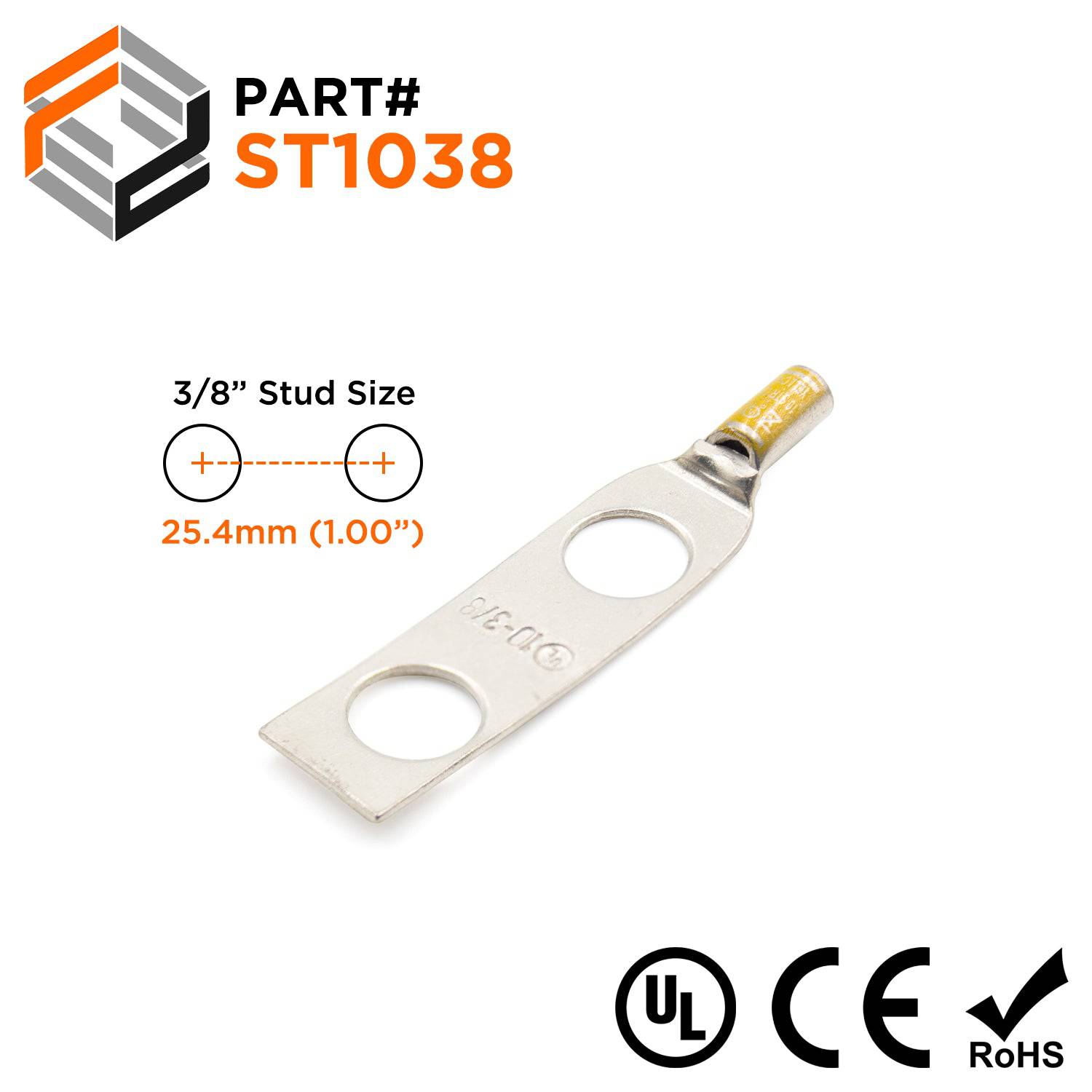

ST1038 - Compression Lug - 3/8" Stud Size
Original price
$0.71
-
Original price
$0.71
Original price
$0.71
$0.71
-
$0.71
Current price
$0.71
SKU ST1038
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 10 AWG |
Stud Size: | 3/8" Stud |
Color: | Yellow |
L: | 59.8mm (2.35") |
L1: | 46.5mm (1.83") |
L2: | 25.4mm (1.00") |
D: | 14.7mm (0.58") |
D1: | 5.6mm (0.22") |
D2: | 3.3mm (0.13") |
B: | 10.2mm (0.40") |
E: | 10.4mm (0.22") |
F: | 1.0mm (0.04") |
Terminal Material: | Tin-Plated Copper |
Temperature Rating: | 90°C |
Voltage Rating: | 35KV |
Max Amp Rating: | 50A |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
