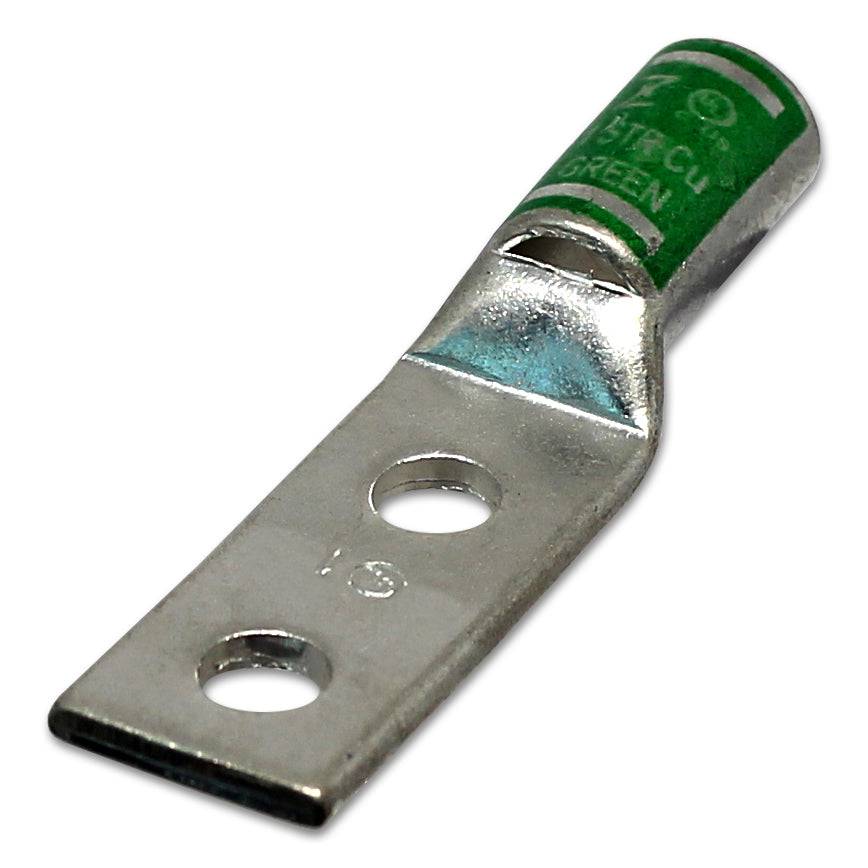

ST114 - 1AWG Compression Lug - 1/4" Stud Size

Original price $1.83 - Original price $1.83
Original price
$1.83
$1.83 - $1.83
Current price $1.83
SKU ST114
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1 AWG
Color: Green
L: 59.2mm (2.33")
L1: 34.3mm (1.35")
L2: 16.0mm (0.63")
D: 16.7mm (0.66")
D1: 11.6mm (0.46")
D2: 9.1mm (0.36")
B: 20.3mm (0.80")
E: 7.1mm (0.28")
F: 2.5mm (0.10")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 85 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
