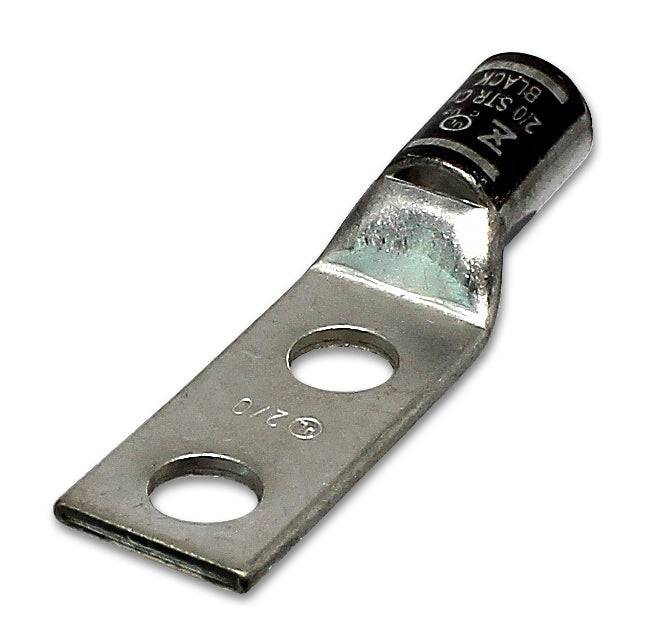

ST2012 - 2/0 AWG Compression Lug - 1/2" Stud Size
Original price
$3.68
-
Original price
$3.68
Original price
$3.68
$3.68
-
$3.68
Current price
$3.68
SKU ST2012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Color: | Black |
| L: | 100.8mm (3.97") |
| L1: | 73.1mm (2.88") |
| L2: | 44.4mm (1.75") |
| D: | 20.8mm (0.82") |
| D1: | 14.2mm (0.56") |
| D2: | 11.6mm (0.46") |
| B: | 21.3mm (0.84") |
| E: | 12.9mm (0.51") |
| F: | 2.5mm (0.09") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/2" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 265A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
