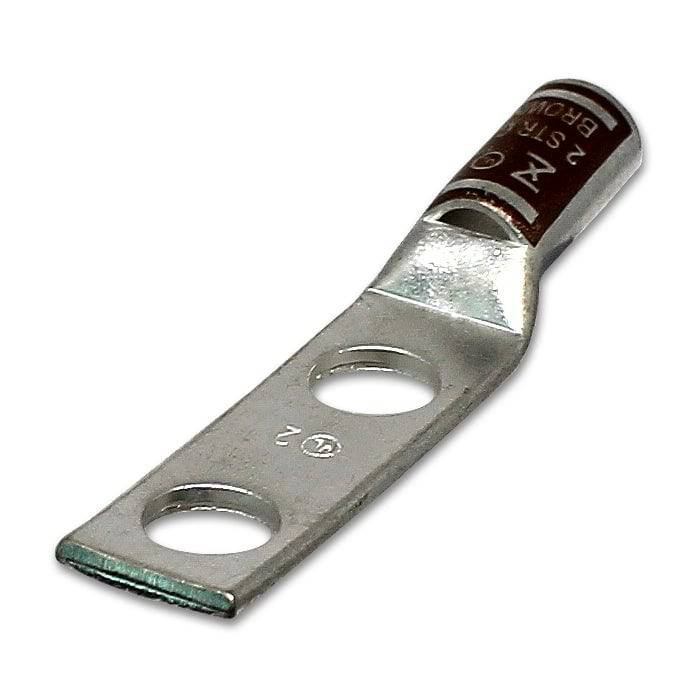

ST238A - 2AWG Compression Lug - 3/8" Stud Size
Original price
$2.21
-
Original price
$2.21
Original price
$2.21
$2.21
-
$2.21
Current price
$2.21
SKU ST238A
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 2 AWG |
| Color: | Brown |
| L: | 90.4mm (3.56") |
| L1: | 66.5mm (2.58") |
| L2: | 44.4mm (1.75") |
| D: | 16.0mm (0.63") |
| D1: | 10.9mm (0.43") |
| D2: | 8.6mm (0.34") |
| B: | 20.3mm (0.80") |
| E: | 10.4mm (0.41") |
| F: | 2.3mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
