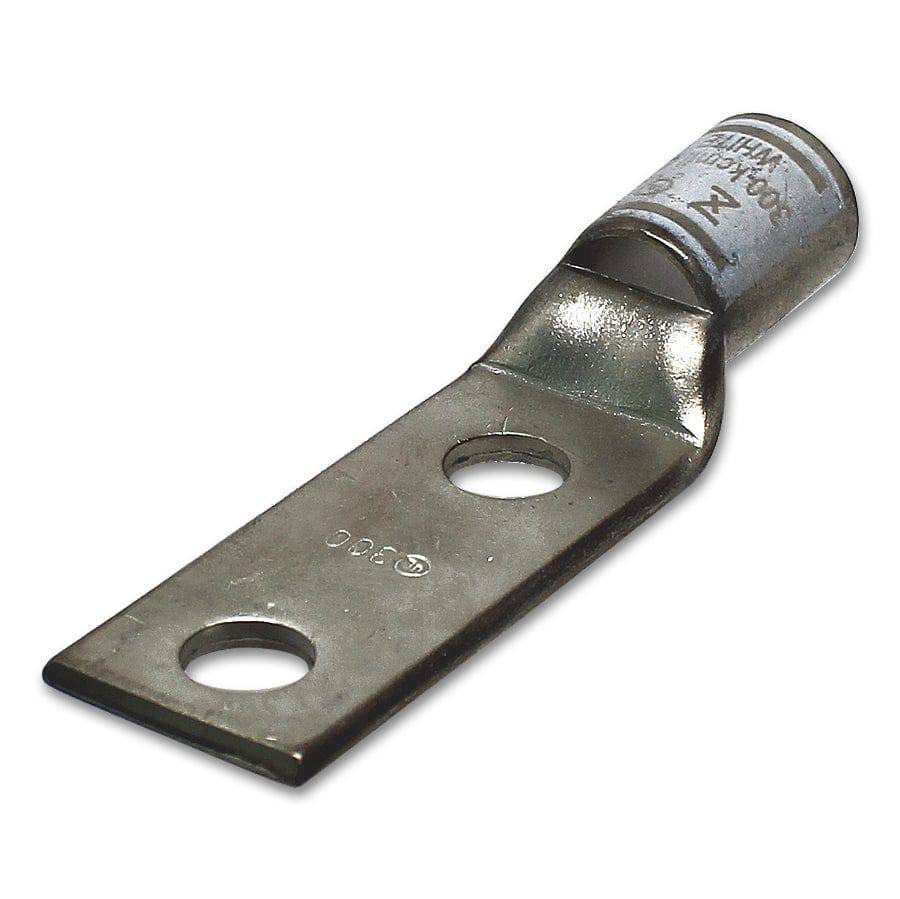

ST30012 - 300MCM Compression Lug - 1/2" Stud Size

Original price $7.98 - Original price $7.98
Original price
$7.98
$7.98 - $7.98
Current price $7.98
SKU ST30012
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 300MCM
Color: White
L: 99.0mm (3.90")
L1: 71.1mm (2.80")
D: 30.2mm (1.19")
D1: 20.9mm (0.82")
D2: 17.1mm (0.67")
B: 27.9mm (1.10")
E: 12.9mm (0.51")
F: 37.6mm (0.15")
L2: 44.4mm (1.75")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 445A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
