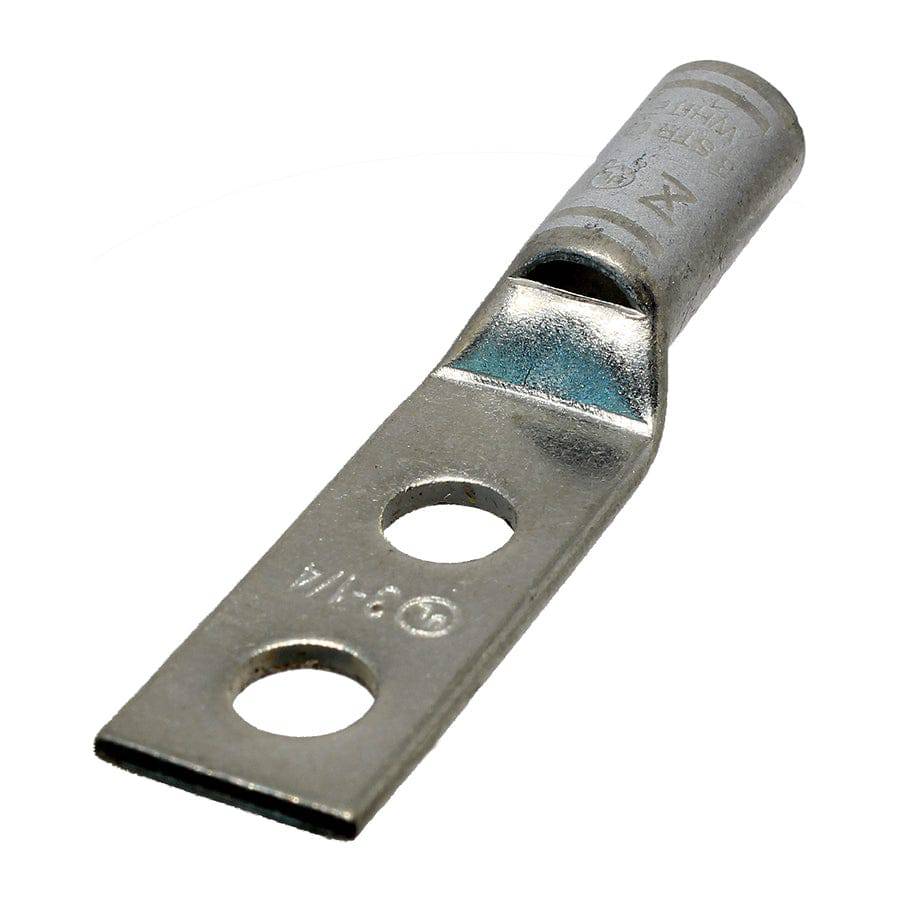

ST314 - 3AWG Compression Lug - 1/4" Stud Size

Original price $1.23 - Original price $1.23
Original price
$1.23
$1.23 - $1.23
Current price $1.23
SKU ST314
Availability:
in stock, ready to be shipped
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 3 AWG
Color: White
L: 58.4mm (2.30")
L1: 34.3mm (1.35")
L2: 16.0mm (0.63")
D: 17.8mm (0.70")
D1: 9.1mm (0.36")
D2: 7.8mm (0.31")
B: 20.3mm (0.80")
E: 7.1mm (0.28")
F: 2.0mm (0.08")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
