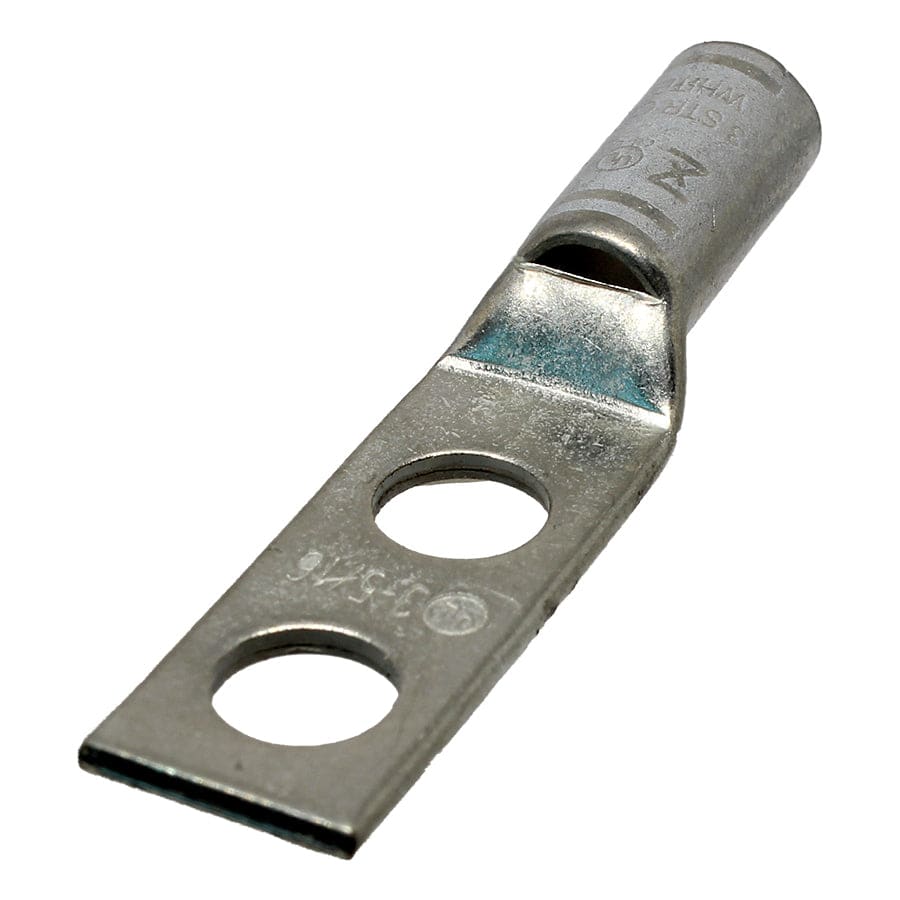

ST3516 - 3AWG Compression Lug - 5/16" Stud Size
Original price
$1.22
-
Original price
$1.22
Original price
$1.22
$1.22
-
$1.22
Current price
$1.22
SKU ST3516
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 3 AWG |
| Color: | White |
| L: | 59.2mm (2.33") |
| L1: | 35.0mm (1.38") |
| L2: | 16.0mm (0.63") |
| D: | 14.5mm (0.57") |
| D1: | 9.9mm (0.39") |
| D2: | 7.8mm (0.31") |
| B: | 20.3mm (0.80") |
| E: | 10.4mm (0.41") |
| F: | 2.0mm (0.08") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
