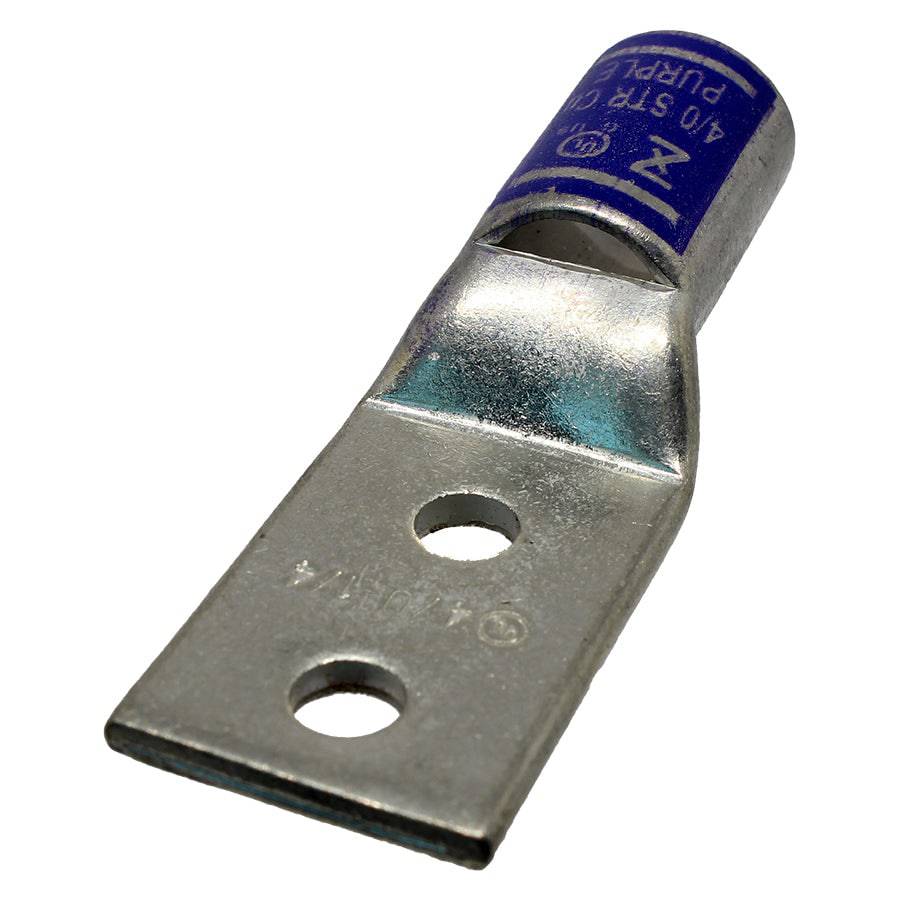

ST4014 - 4/0 AWG Compression Lug - 1/4" Stud Size
Original price
$4.12
-
Original price
$4.12
Original price
$4.12
$4.12
-
$4.12
Current price
$4.12
SKU ST4014
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4/0 AWG |
| Color: | Purple |
| L: | 71.8mm (2.82") |
| L1: | 37.4mm (1.47") |
| L2: | 19.1mm (0.75") |
| D: | 25.4mm (1.00") |
| D1: | 17.4mm (0.56") |
| D2: | 14.2mm (0.56") |
| B: | 25.4mm (1.00") |
| E: | 7.1mm (0.28") |
| F: | 3.1mm (0.12") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/4" |
| Termperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 130 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
